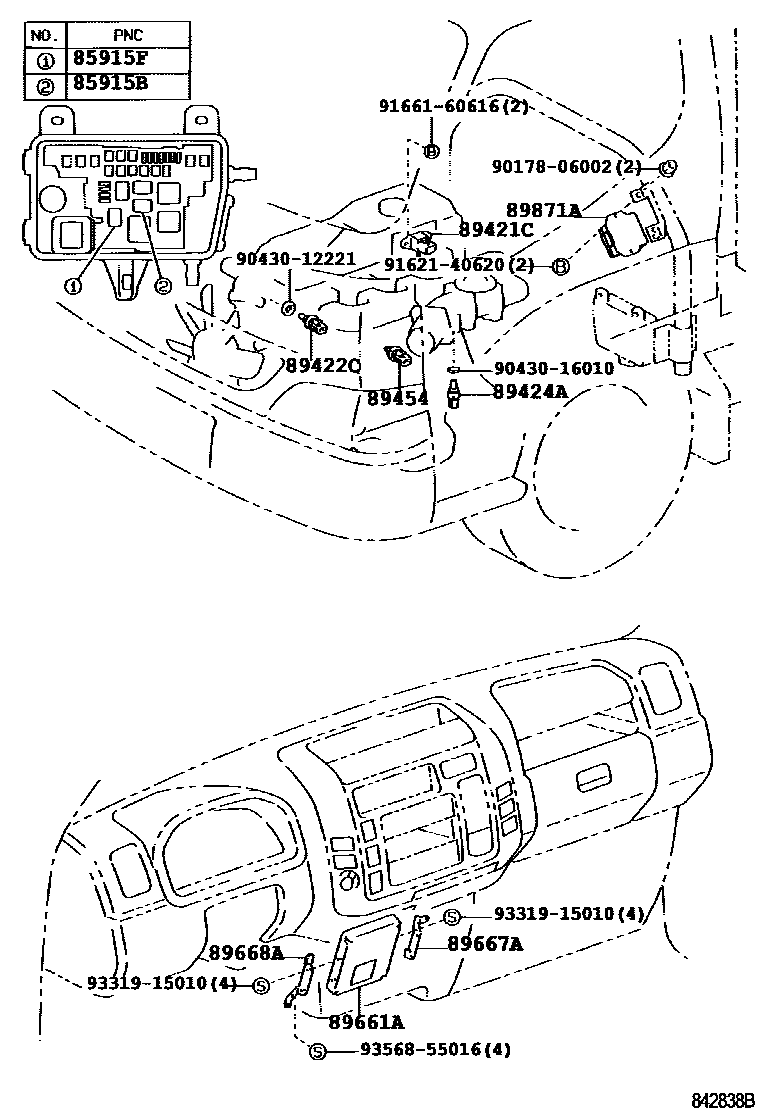

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iXZU30#,320,330,34#199907-200212

85915FRELAY, SPILL VALVE

main90987-02017iXZU30#,320,330,34#199907-200212

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-21010iXZU300,320,330,340199907-200212

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iXZU300,320,330,340199907-200212

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-28020iXZU300,320,330,340199907-200212

89454SENSOR, FUEL TEMPERATURE

main89454-60010iXZU300,320,330,340199907-200212

89661ACOMPUTER, ENGINE CONTROL

main89561-37022iXZU302,307,342200010-200206

main89661-37060iXZU300,320,330,340199907-200212

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37010iXZU302,307,342200010-200206

main89667-37020iXZU300,320,330,340199907-200212

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37010iXZU302,307,342200010-200206

main89668-37020iXZU300,320,330,340199907-200212

89871ADRIVER, INJECTOR

main89871-36010iXZU30#,320,330,34#199907-200212

9017806002

main90178-06002

9043012221

main90430-12221

9043016010

main90430-16010

9162140620

main91621-40620

9166160616

main91661-60616

9331915010

main93319-15010

9356855016

main93568-55016

17 parts on this diagram · 1 diagram in section
