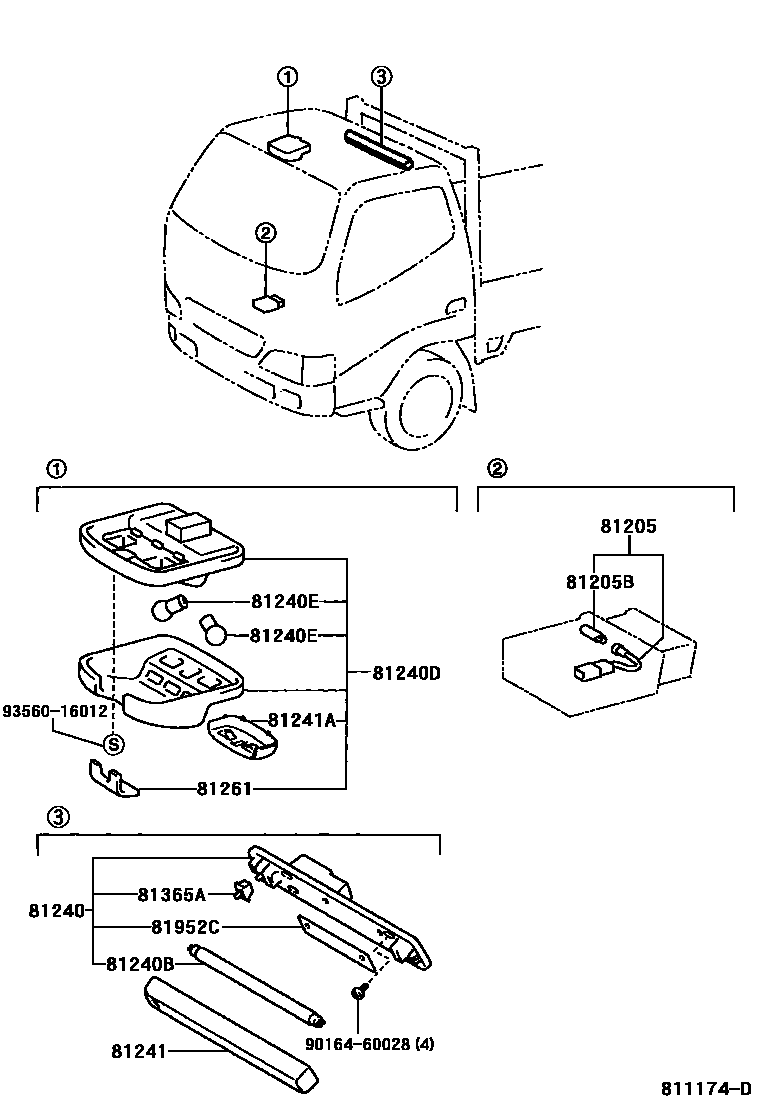

INTERIOR LAMP

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-37030iXZU30#,320,330,34#199907-200212

81205BBULB, ASH RECEPTACLE LAMP

main90981-11022iXZU30#,320,330,34#199907-200212

24V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81580-37050-B0iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11053iXZU302,307,342200010-200206

100V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-37060-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-12032iXZU30#,320,330,34#199907-200212

24V 8W

81241LENS, ROOM LAMP, NO.1

main81241-37020iXZU302,307,342200010-200206

sub81241-37021

81241ALENS, ROOM LAMP, NO.2

main81241-95J08iXZU30#,320,330,34#199907-200212

81261LENS AND COVER, MAP LAMP

main81245-95J07-B3iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub81245-95J07

81365AKNOB, ROOM LAMP SWITCH

main81365-37010-B1iXZU302,307,342200010-200206

24V,MD.CHACOAL,TRIM1#

sub81365-37010

main81365-37010-C0iXZU302,307,342200010-200206

12V,BLACK,TRIM1#

sub81365-37010

81952CCOVER, REAR LAMP

main81952-37020iXZU302,307,342200010-200206

9016460028

main90164-60028

9356016012

main93560-16012

13 parts on this diagram · 1 diagram in section
