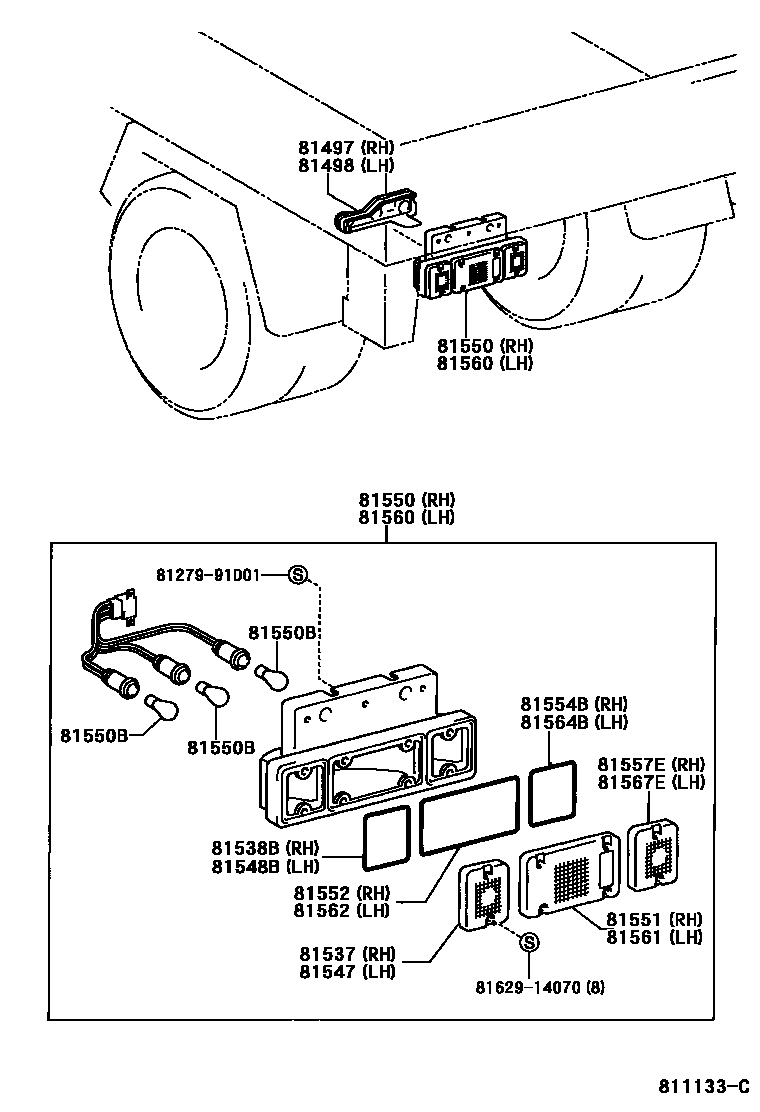

REAR COMBINATION LAMP

81497COVER, REAR COMBINATION LAMP, RH

main81497-37010iXZU300,320,330,340199907-200212

sub81497-37011

81498COVER, REAR COMBINATION LAMP, LH

main81498-37010iXZU302,307,342199907-200212

sub81498-37011

81537LENS, REAR COMBINATION LAMP, NO.3 RH

main81537-37120iXZU302,307,342199907-200212

81538BGASKET, REAR COMBINATION LAMP, NO.3 RH

main81538-37120iXZU302,307,342199907-200212

81547LENS, REAR COMBINATION LAMP, NO.3 LH

main81547-37130iXZU300,320,330,340199907-200212

81548BGASKET, REAR COMBINATION LAMP, NO.3 LH

main81538-37120iXZU302,307,342199907-200212

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37110iXZU302,307,342200010-200206

AUSTRALIA SPEC

main81550-37120iXZU300,320,330,340199907-200212

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16027iXZU302,307,342199907-200212

24V 25/10W

main99134-12250iXZU302,307,342199907-200212

24V 25W

sub99134-11250

81551LENS, REAR COMBINATION LAMP, RH

main81551-37110iXZU302,307,342200010-200206

AUSTRALIA SPEC

main81551-37120iXZU300,320,330,340199907-200212

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-37120iXZU302,307,342199907-200212

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81554-37120iXZU302,307,342199907-200212

81557ELENS, REAR COMBINATION LAMP, RH NO.2

main81557-37120iXZU302,307,342199907-200212

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37120iXZU302,307,342200010-200206

AUSTRALIA SPEC

main81560-37130iXZU300,320,330,340199907-200212

81561LENS, REAR COMBINATION LAMP, LH

main81561-37120iXZU302,307,342200010-200206

AUSTRALIA SPEC

main81561-37130iXZU302,307,342199907-200212

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-37120iXZU300,320,330,340199907-200212

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81554-37120iXZU302,307,342199907-200212

81567ELENS, REAR COMBINATION LAMP, LH NO.2

main81557-37120iXZU302,307,342199907-200212

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

8162914070

main81629-14070

19 parts on this diagram · 1 diagram in section
