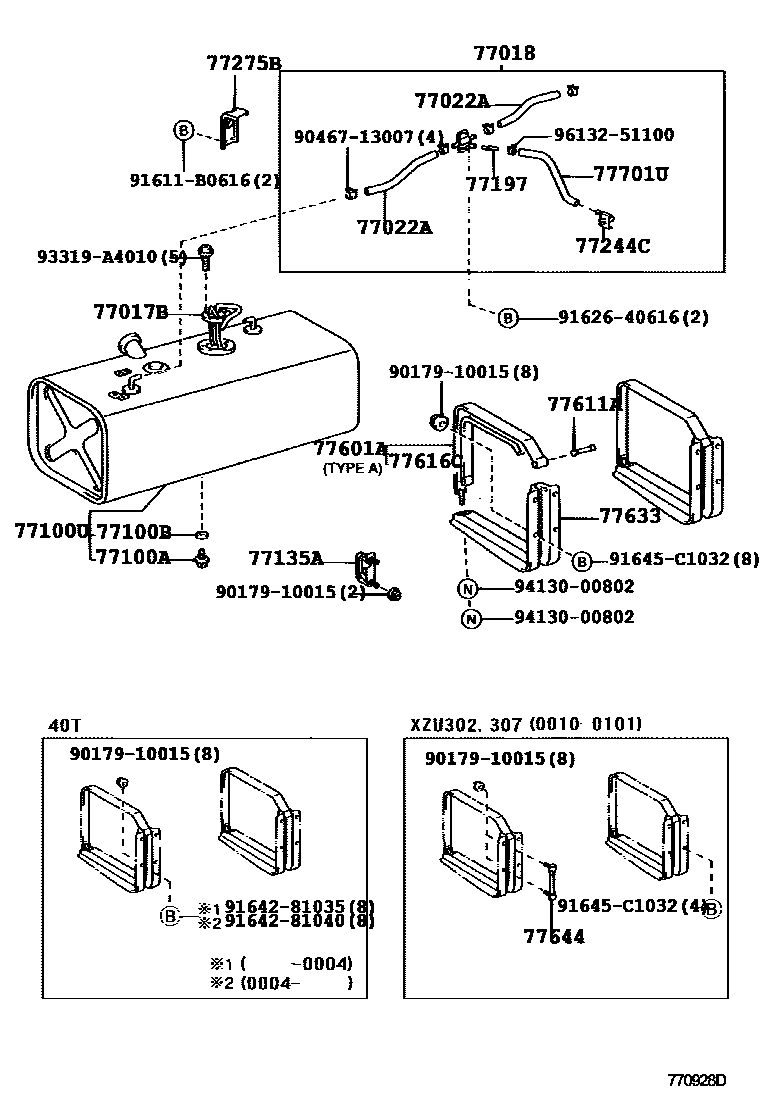

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK W(SUB TANK) 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1CLAMP 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37010iXZU30#,320,330,34#¥2,910199907-200212

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-37050iXZU30#,320,330,34#¥2,460199907-200212

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iXZU30#,320,330,34#¥660199907-200212

L=300(*H,L=220)

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU300,320,330,340¥110199907-200212

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZU300,320,330,340¥160199907-200212

77100UTANK SUB-ASSY, FUEL

main77001-37210iXZU300,302,320¥46,200199907-200212

780X310X385

sub77001-37211¥32,300

main77001-37220iXZU330,34#¥54,400199907-200212

960X310X385

sub77001-37221¥54,400

main77001-37240iXZU307¥46,200200010-200206

780X310X385

sub77001-37241¥46,300

77135APROTECTOR, FUEL TANK SIDE

main77135-37020iXZU330¥4,410199907-200212

main77135-37030iXZU300¥4,040199907-200212

main77135-37060iXZU340¥4,000199907-200212

MAIN TANK

sub77135-37061¥4,010

main77135-37070iXZU340¥3,210199907-200212

sub77135-37071¥3,220

main77135-37090iXZU340¥3,740199907-200212

SUB TANK

77197ORIFICE, FUEL VAPOR

main90977-02001iXZU30#,320,330,34#¥300199907-200212

77244CJOINT, FUEL TUBE, NO.2

main77244-37010iXZU34#¥90199907-200212

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iXZU320¥1,460199907-200212

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36140iXZU34#¥2,390199907-200212

W(SUB FUEL TANK)

sub77601-37030¥2,810

main77601-36150iXZU30#,320,330,34#¥2,920199907-200212

sub77601-37040¥4,890

77611BAND, FUEL TANK

main77616-36030iXZU34#¥350199907-200212

77611APIN (FOR FUEL TANK BAND)

main77629-36010iXZU30#,320,330,34#¥140199907-200212

77616CSEAT, FUEL TANK BAND

main77616-36030iXZU30#,320,330,34#¥350199907-200212

77633STAY, FUEL TANK

main77501-37080iXZU30#,320,330,34#¥7,200199907-200212

main77633-37100iXZU34#¥4,420199907-200212

W(SUB FUEL TANK)

77644BOLT, FUEL TANK

main77644-37010iXZU302,307¥740200010-200101

sub91645-C1032¥200

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06040iXZU30#,320,330,34#¥730199907-200212

*H,L=400

main95333-06060iXZU34#¥1,020199907-200210

*H,L=420

9017910015

main90179-10015¥100

9046713007

main90467-13007¥180

91611B0616

main91611-B0616¥110

9162640616

main91626-40616¥110

9164281035

main91642-81035¥240

9164281040

main91642-81040¥240

91645C1032

main91645-C1032¥200

93319A4010

main93319-A4010¥60

9413000802

main94130-00802¥90

9613251100

main96132-51100¥120

27 parts on this diagram · 8 diagrams in section
