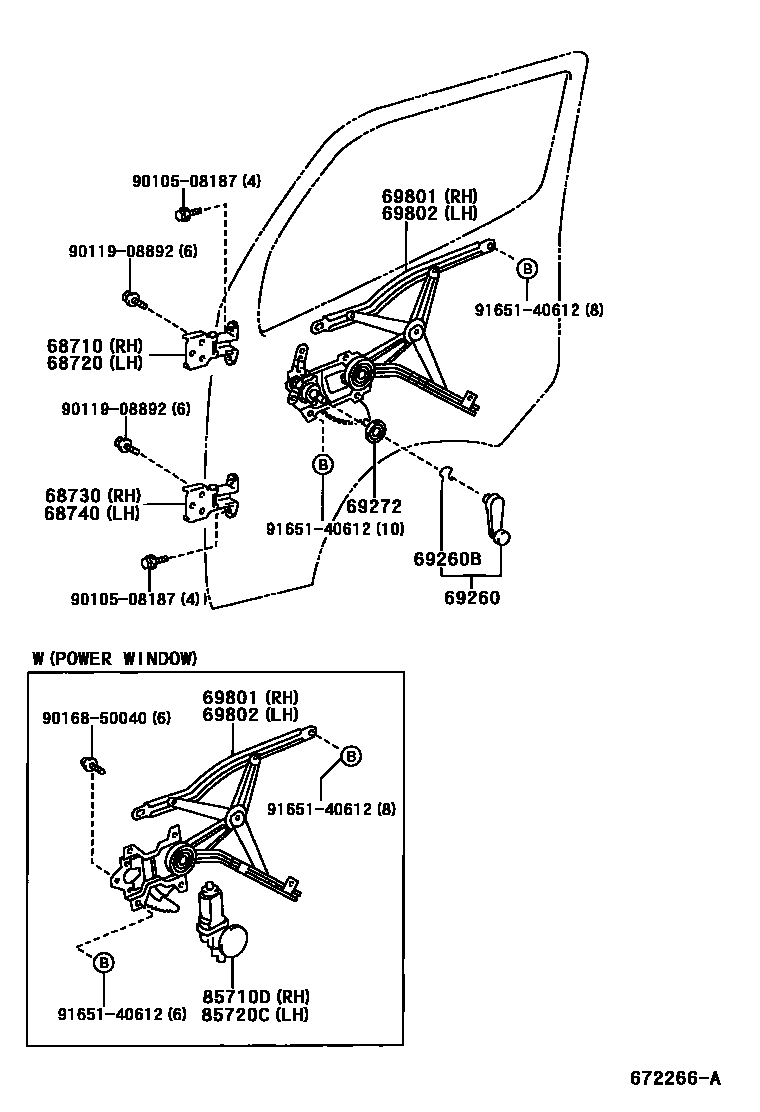

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXZU30#,320,330,34#199907-200212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXZU30#,320,330,34#199907-200212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXZU30#,320,330,34#199907-200212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iXZU30#,320,330,34#199907-200212

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3iXZU302,307,342200010-200206

MD.CHARCOAL,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iXZU302,307,342200010-200206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iXZU302,307,342200010-200206

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020iXZU302,307,342200010-200206

sub69801-37050

main69801-37030iXZU302,307,342199907-200212

W(POWER WINDOW)

sub69801-37060

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020iXZU302,307,342200010-200206

sub69802-37050

main69802-37030iXZU302,307,342199907-200212

W(POWER WINDOW)

sub69802-37060

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37040iXZU30#,320,330,34#199907-200212

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37050iXZU30#,320,330,34#199907-200212

9010508187

main90105-08187

9011908892

main90119-08892

9016850040

main90168-50040

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
