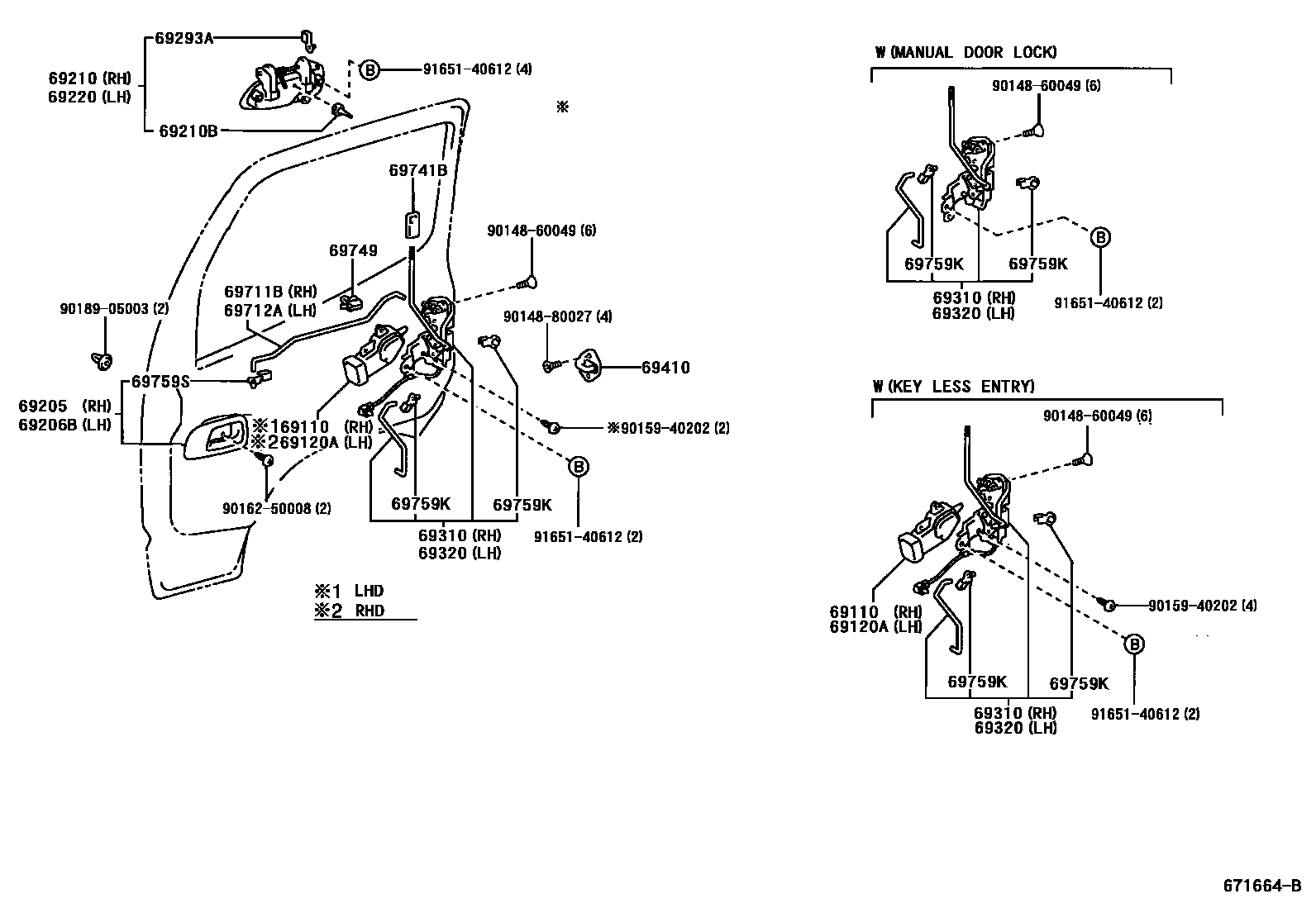

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37030iXZU30#,320,330,34#199907-200206

main69110-37060iXZU300,320,330,340200206-200212

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37030iXZU302,307,342200010-200206

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B0iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iXZU30#,320,330,34#199907-200212

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015iXZU30#,320,330,34#199907-200212

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXZU30#,320,330,34#199907-200212

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZU30#,320,330,34#199907-200212

RH

main69293-12060iXZU30#,320,330,34#199907-200212

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iXZU300,320,330,340200011-200212

main69310-37070iXZU302,307,342200010-200206

W(MANUAL DOOR LOCK)

main69310-37080iXZU302,307,342200010-200206

W(KEY LESS ENTRY)

main69310-37090iXZU302,307,342200010-200206

main69310-37100iXZU300,320,330,340199907-200011

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iXZU302,307,342200010-200206

main69320-37080iXZU300,320,330,340199907-200212

main69320-37110iXZU302,307,342200010-200206

QUICK DELIVERY SPEC

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iXZU30#,320,330,34#199907-200212

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iXZU30#,320,330,34#199907-200212

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iXZU30#,320,330,34#199907-200212

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B3iXZU30#,320,330,34#199907-200212

MD.CHARCOAL,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iXZU30#,320,330,34#199907-200212

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iXZU30#,320,330,34#199907-200212

LH,YELLOW

main69759-20050iXZU30#,320,330,34#199907-200212

RH,BROWN

main69759-24010iXZU30#,320,330,34#199907-200212

RH,NATURAL

main69759-24020iXZU30#,320,330,34#199907-200212

LH,BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iXZU30#,320,330,34#199907-200212

LH

main69759-22050iXZU30#,320,330,34#199907-200212

RH

9014860049

main90148-60049

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

23 parts on this diagram · 1 diagram in section
