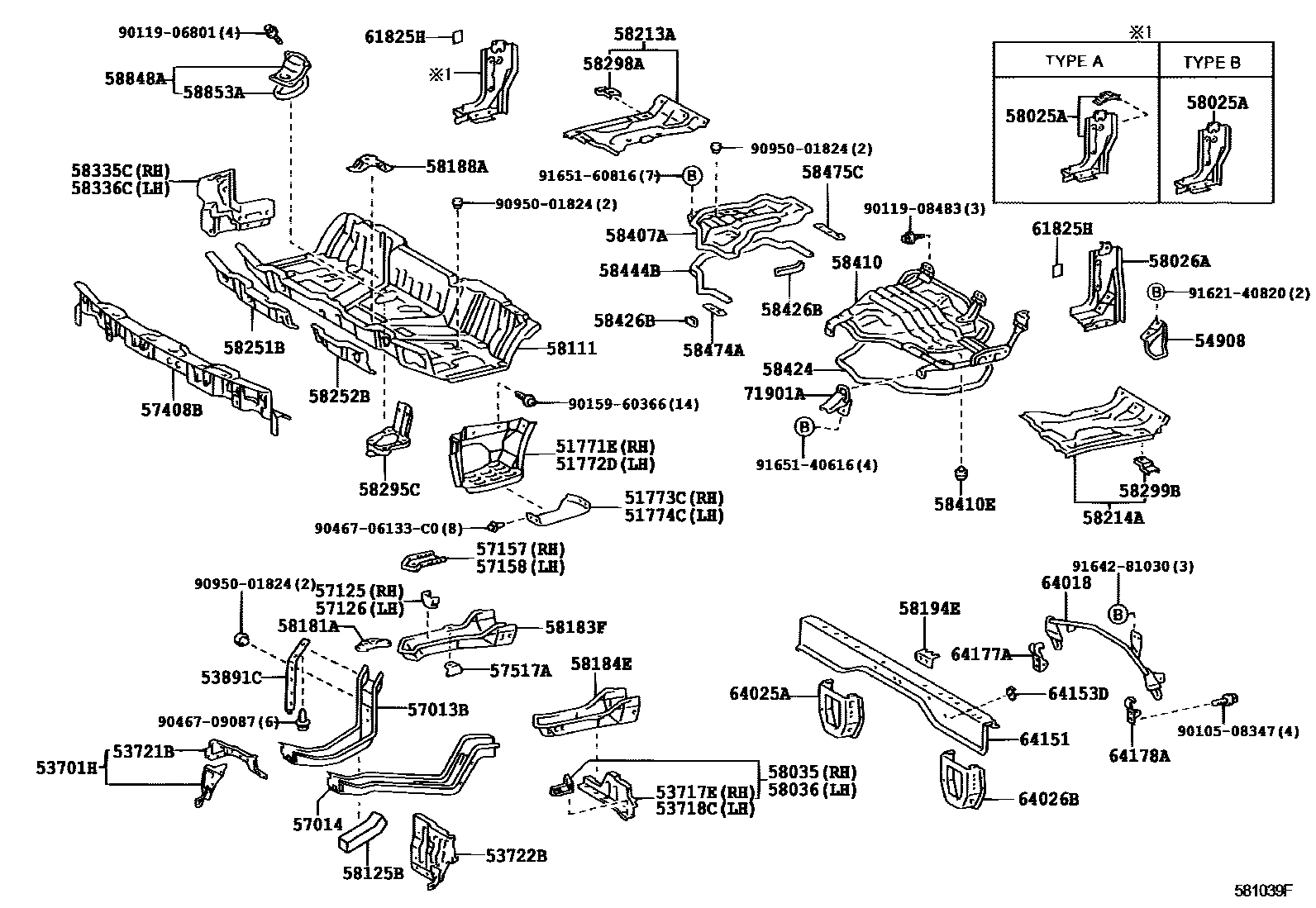

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1PLUG HOLE

51771EPLATE, STEP, RH

main51083-37020iXZU330,340..40T199907-200107

main51083-37021iXZU330,340..40T200107-200212

sub51083-37022

main51771-37100iXZU302,307,342200010-200101

sub51771-25020

main51771-37110iXZU300,320,330..30T199907-200107

sub51771-37111

main51771-37190iXZU302,307,342200101-200206

main51771-37210iXZU300,320,330..20T,30T200107-200212

sub51771-37211

51772DPLATE, STEP, LH

main51084-37020iXZU330,340..40T199907-200212

sub51084-37021

main51772-37080iXZU302,307,342200010-200206

main51772-37090iXZU300,320,330..20T,30T199907-200212

sub51772-37091

51773CCOVER, STEP PLATE, RH

main51773-37020iXZU302,307,342200010-200206

main51773-37030iXZU300,320,330,340199907-200206

51774CCOVER, STEP PLATE, LH

main51773-37030iXZU300,320,330,340199907-200206

main51774-37010iXZU302,307,342200010-200206

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37020iXZU300,320,330,340199907-199910

TYPE A:REFER TO ILLUSTRATION

sub53701-37021

main53701-37021iXZU300,320,330,340199910-200003

TYPE A:REFER TO ILLUSTRATION

sub53701-37022

main53701-37022iXZU300,320,330,340200003-200212

TYPE A:REFER TO ILLUSTRATION

main53701-37030iXZU302,307,342200010-200206

TYPE B:REFER ILLUST.

sub53701-37031

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-37130iXZU30#,320,330,34#199907-200212

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37110iXZU30#,320,330,34#199907-200212

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37050iXZU300,320,330,340199907-199910

sub53721-37051

main53721-37051iXZU300,320,330,340199910-200003

sub53721-37052

main53721-37052iXZU30#,320,330,34#200003-200212

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53702-37030iXZU300,320,330,340199907-200206

sub53702-37031

main53702-37031iXZU300,320,330,340200206-200212

sub53702-37032

main53722-37030iXZU302,307,342200010-200206

sub53722-37031

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-37030iXZU30#,320,330,34#199907-200212

sub53891-37031

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37010iXZU30#,320,330,34#199907-200212

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37150iXZU30#,320,330,34#199907-200212

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iXZU30#,320,330,34#199907-200212

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iXZU30#,320,330,34#199907-200212

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iXZU30#,320,330,34#199907-200212

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iXZU30#,320,330,34#199907-200212

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iXZU30#,320,330,34#199907-200212

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37260iXZU302,307,342200010-200206

sub57408-37261

main57408-37270iXZU300,320,330,340199907-200206

sub57408-37271

main57408-37271iXZU300,320,330,340200206-200212

sub57408-37272

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-37010iXZU302,307,342200010-200206

sub57517-37011

main57517-37020iXZU300,320,330,340199907-200212

sub57517-37021

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37060iXZU302,307,342200010-200206

main58043-37060iXZU300,320,330,340199907-200212

TYPE A:REFER TO ILLUSTRATION

main58043-37080iXZU300,320,330,340200206-200212

TYPE B:REFER TO ILLUSTRATION

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37070iXZU30#,320,330,34#199907-200212

58035PANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58035-37030iXZU330,340..40T199907-200212

58036PANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58036-37030iXZU330,340..40T199907-200212

58111PAN, FRONT FLOOR

main58111-37171iXZU302,307,342200010-200206

W(SRS AIR BAG)

sub58111-37176

main58111-37260iXZU300,320,330,340199907-200008

sub58111-37261

sub58103-37031

sub58251-37051

main58111-37261iXZU300,320,330,340200008-200212

sub58111-37262

main58111-37301iXZU302,307,342200010-200206

sub58111-37302

58125BSEAL, FRONT FLOOR TO FRAME

main58125-37020iXZU30#,320,330,34#200011-200212

sub58125-37021

58181ARETAINER, SEAT RAIL, FRONT

main58181-37030iXZU302,307,342200010-200206

main58181-37050iXZU300,320,330,340199907-200212

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37060iXZU30#,320,330,34#199907-200212

sub58183-37061

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-37070iXZU300,320,330,340199907-200009

sub58184-37071

main58184-37071iXZU30#,320,330,34#200009-200012

sub58184-37072

main58184-37072iXZU30#,320,330,34#200012-200212

sub58184-37073

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-37010iXZU300,320,330,340199907-200212

58194ERETAINER, ENGINE COVER HINGE

main58194-37010iXZU300,320,330,340199907-200212

58213APANEL, SEAT FLOOR, RH

main58201-37100iXZU300,320,330,340199907-200212

sub58201-25060

58214APANEL, SEAT FLOOR, LH

main58202-37080iXZU300,320,330,340199907-200212

58251BBRACE, FLOOR PANEL, FRONT

main58251-37031iXZU302,307,342200010-200206

sub58251-37032

main58251-37050iXZU300,320,330,340199907-200008

main58251-37051iXZU300,320,330,340200008-200212

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37031iXZU302,307,342200010-200206

main58252-37060iXZU300,320,330,340199907-200212

sub58252-37061

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iXZU302,307,342200010-200206

main58295-37070iXZU300,320,330,340199907-200212

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iXZU30#,320,330,34#199907-200212

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37010iXZU30#,320,330,34#199907-200212

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37040iXZU30#,320,330,34#199907-200212

sub58335-37041

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37030iXZU30#,320,330,34#199907-200101

sub58336-37031

main58336-37031iXZU30#,320,330,34#200101-200212

sub58336-37032

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-37110iXZU300,320,330,340199907-200212

sub58407-37111

58410COVER, ENGINE SERVICE HOLE

main59208-37170iXZU300,320,330,340199907-200102

main59208-37171iXZU300,320,330,340200102-200212

sub59208-37172

58410ECUSHION, NO.3

main90541-09046iXZU300,320,330,340199907-200212

58424PACKING, ENGINE SERVICE HOLE COVER, NO.1

main58424-37020iXZU300,320,330,340199907-200212

sub58424-37021

58426BPROTECTOR, ENGINE SUB COVER

main58426-95405iXZU300,320,330,340199907-200212

58444BPACKING, ENGINE SUB COVER

main58444-37030iXZU300,320,330,340199907-200212

58474APACKING, ENGINE SUB COVER, NO.2

main58474-37010iXZU300,320,330,340199907-200212

58475CPACKING, ENGIN SUB COVER, NO.3

main58475-37030iXZU300,320,330,340199907-200212

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iXZU302,307,342200010-200206

main58840-37020iXZU300,320,330,340199907-200212

58853APACKING, SHIFT LEVER HOLE

main58853-37020iXZU30#,320,330,34#199907-200212

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010iXZU30#,320,330,34#199907-200212

64018BAR SUB-ASSY, BODY

main64018-37070iXZU302,307,342200010-200206

sub64018-37071

main64018-37080iXZU300,320,330,340199907-200212

sub64018-37081

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37010iXZU30#,320,330,34#199907-200212

sub64171-37011

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37090iXZU300,320,330,340199907-200212

main64026-37100iXZU302,307,342200010-200206

W(CONSOLE BOX = FOR 02S)

main64172-37020iXZU302,307,342200010-200111

sub64172-37021

main64172-37021iXZU302,307,342200111-200206

sub64172-37022

64151FRAME, BACK

main64151-37180iXZU302,307,342200010-200109

sub64151-37181

main64151-37181iXZU302,307,342200109-200206

main64151-37220iXZU300,320,330,340199907-200109

sub64151-37221

main64151-37221iXZU300,320,330,340200109-200212

sub64151-37420

64153DREINFORCEMENT, BACK FRAME

main52123-32040iXZU30#,320,330,34#200111-200212

main64153-37020iXZU30#,320,330,34#199907-200111

sub52123-32040

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37030iXZU30#,320,330,34#199907-200212

sub64177-37031

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37030iXZU30#,320,330,34#199907-200212

sub64178-37031

71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT

main71902-37010iXZU300,320,330,340199907-200212

9010508347

main90105-08347

9011906801

main90119-06801

9011908483

main90119-08483

9015960366

main90159-60366

9046706133C0

main90467-06133C0

9046709087

main90467-09087

9095001824

main90950-01824

9162140820

main91621-40820

9164281030

main91642-81030

9165140616

main91651-40616

9165160816

main91651-60816

69 parts on this diagram · 4 diagrams in section
