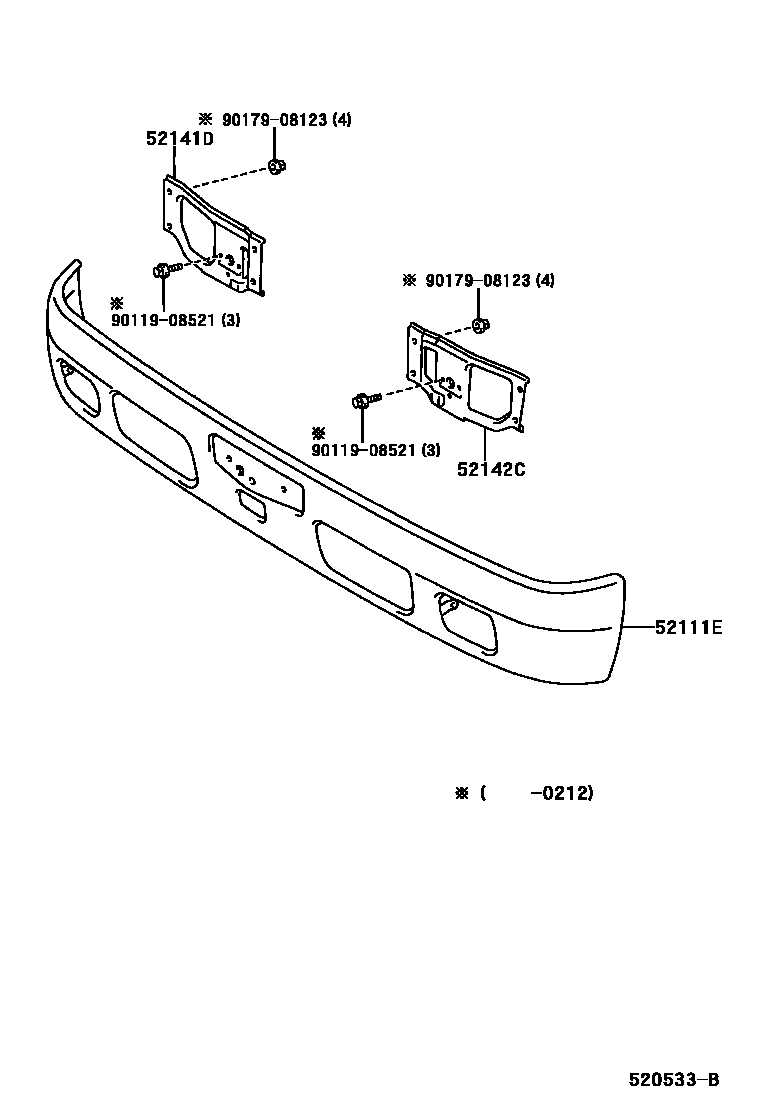

FRONT BUMPER & BUMPER STAY

0001 1 0002 1W(FRONT SPOILER)

52111EBAR, FRONT BUMPER

main52101-37130-A0iXZU302,307,342200010-200206

W(FRONT SPOILER),WHITE,058

main52101-37130-B0iXZU302,307,342200010-200206

W(FRONT SPOILER),SILVER ME.,199

main52101-37130-H0iXZU302,307,342200010-200206

W(FRONT SPOILER),TURQUOISE,766

main52101-37130-J1iXZU302,307,342200010-200206

W(FRONT SPOILER),BLUE,8P0

main52101-37140iXZU302,307,342200010-200206

CHROME PLATED BUMPER & W(FRONT SPOILER)

main52101-37170-A0iXZU30#,320,330,34#199907-200212

WHITE,058

main52101-37170-B0iXZU302,307,342200010-200206

SILVER ME.,199

main52101-37170-H0iXZU302,307,342200010-200206

TURQUOISE,766

main52101-37170-J1iXZU30#,320,330,34#199907-200206

BLUE,8P0

main52101-37180iXZU302,307,342200010-200206

CHROME PLATED BUMPER

52141DSTAY, FRONT BUMPER, RH

main52141-37100iXZU302,307,342200010-200206

MARK = R1

sub52141-37270

main52141-37120iXZU300,320,330,340199907-200212

MARK = R3

sub52141-37121

52142CSTAY, FRONT BUMPER, LH

main52142-37080iXZU302,307,342200010-200206

MARK = L1

sub52142-37250

main52142-37100iXZU300,320,330,340199907-200212

MARK = L3

sub52142-37101

9011908521

main90119-08521

9017908123

main90179-08123

5 parts on this diagram · 2 diagrams in section
