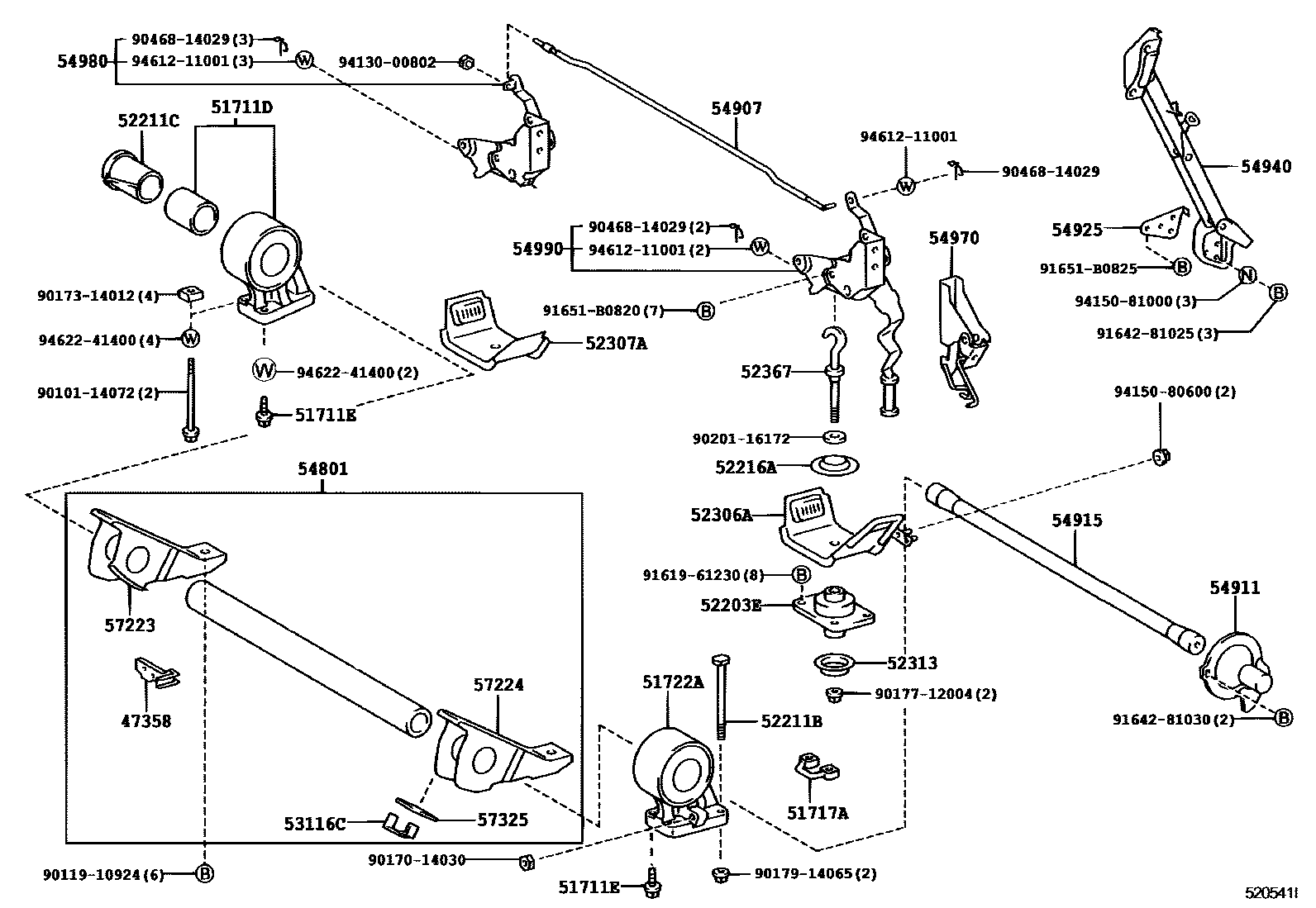

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

47358TUBE, BOOSTER TO RESERVOIR, NO.2

main47358-37010iXZU30#,320,330,34#199907-200212

51711DBRACKET, CAB FRONT MOUNTING

main51701-37100iXZU302,307,342200010-200206

sub51701-37360

main51701-37160iXZU300,320,330,340199907-200206

sub51701-37161

main51701-37161iXZU300,320,330,340200206-200212

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14073iXZU320199907-200212

main90101-14075iXZU30#,330,34#199907-200212

51717APLATE, BODY SUPPORT BRACKET

main51717-37100iXZU30#,320,330,34#199907-200204

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37100iXZU302,307,342200010-200206

main51702-37160iXZU300,320,330,340199907-200206

sub51702-37161

main51702-37161iXZU300,320,330,340200206-200212

sub51702-37350

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37030iXZU30#,320,330,34#199907-200212

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14011iXZU30#,320,330,34#199907-200212

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010iXZU30#,320,330,34#199907-200212

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-37030iXZU30#,320,330,34#199907-200212

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37020iXZU300,320,330,340199907-199909

main52306-37021iXZU30#,320,330,34#199909-200212

sub52306-37022

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37010iXZU30#,320,330,34#199907-200212

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37030iXZU30#,320,330,34#199907-200212

52367HOOK, CAB REAR MOUNTING

main52367-37020iXZU30#,320,330,34#199907-200212

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iXZU30#,320,330,34#199907-200212

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37031iXZU302,307,342200010-200102

sub54801-37032

main54801-37032iXZU302,307,342200102-200206

sub54801-37033

sub91673-G1025

main54801-37050iXZU300,320,330,340199907-200002

sub54801-37051

main54801-37051iXZU300,320,330,340200002-200102

sub54801-37052

main54801-37052iXZU300,320,330,340200102-200207

sub54801-37053

main54801-37053iXZU300,320,330,340200207-200212

sub54801-37054

sub91673-G1025

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37010iXZU30#,320,330,34#199907-200212

sub54907-37050

54911ARM, TILT CAB SPRING SUPPORT, NO.1

main54911-37030iXZU302,307,342200010-200206

sub54911-37160

main54911-37040iXZU300,320,330,340199907-200212

sub54911-37170

54915SPRING, TILT CAB, NO.1

main54915-37090iXZU302,307,342200010-200206

sub54915-37230

main54915-37100iXZU300,320,330,340199907-200212

sub54915-37260

54925RETAINER, TILT CAB SPRING

main54925-37030iXZU30#,330,34#199907-200212

54940STAY ASSY, TILT CAB

main54940-37041iXZU302,307,342200010-200105

sub54940-37042

main54940-37042iXZU302,307,342200105-200206

main54940-37050iXZU300,320,330,340199907-200008

sub54940-37051

main54940-37051iXZU300,320,330,340200008-200212

54970LATCH ASSY, TILT CAB STOPPER

main54970-37010iXZU300,320,330,340199907-199909

main54970-37011iXZU300,320,330,340199909-200005

sub54970-37012

main54970-37012iXZU30#,320,330,34#200005-200105

sub54970-37013

main54970-37013iXZU30#,320,330,34#200105-200212

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37010iXZU30#,320,330,34#199907-200204

sub54980-37011

main54980-37011iXZU30#,320,330,34#200204-200212

sub54980-37012

main54980-37020iXZU302,307,342200010-200204

W(CONSOLE BOX = FOR 02S)

sub54980-37021

main54980-37021iXZU302,307,342200204-200206

W(CONSOLE BOX = FOR 02S)

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37020iXZU300,320,330,340199907-199909

main54990-37021iXZU30#,320,330,34#199909-200204

sub54990-37022

main54990-37022iXZU30#,320,330,34#200204-200212

57223BRACKET, FRONT MOUNTING, RH

main57223-37010iXZU300,320,330,340199907-200002

sub57223-37011

main57223-37011iXZU30#,320,330,34#200002-200212

57224BRACKET, FRONT MOUNTING, LH

main57224-37010iXZU300,320,330,340199907-200002

sub57224-37011

main57224-37011iXZU30#,320,330,34#200002-200212

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010iXZU30#,320,330,34#199907-200212

9010114072

main90101-14072

9011910924

main90119-10924

9017014030

main90170-14030

9017314012

main90173-14012

9017712004

main90177-12004

9017914065

main90179-14065

9020116172

main90201-16172

9046814029

main90468-14029

9161961230

main91619-61230

9164281025

main91642-81025

9164281030

main91642-81030

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9413000802

main94130-00802

9415080600

main94150-80600

9415081000

main94150-81000

9461211001

main94612-11001

9462241400

main94622-41400

44 parts on this diagram · 2 diagrams in section
