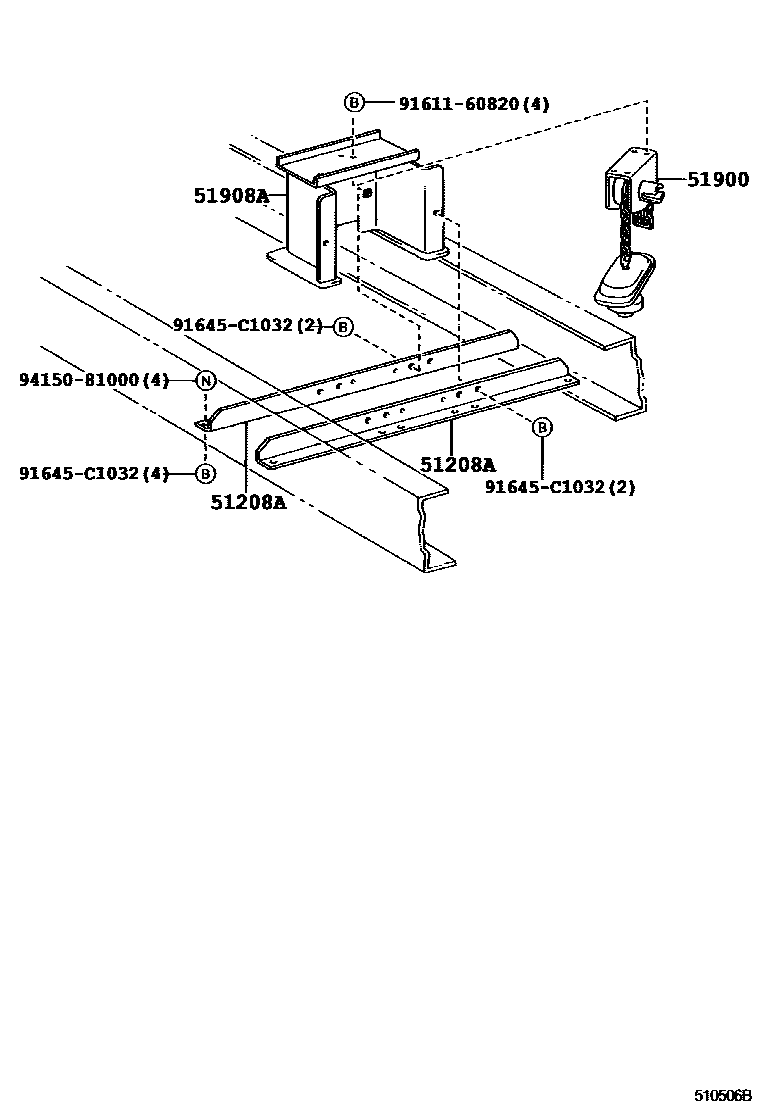

SPARE WHEEL CARRIER

0001 1 0002 1FOR TRANSFER 0003 1LH SIDE 0004 1 0005 1 0006 1

51208AMEMBER SUB-ASSY, SPARE WHEEL SET

main51261-37020iXZU300,307,330,34#199907-200212

51900CARRIER ASSY, SPARE WHEEL

main51900-37030iXZU300,302,330..20T,30T199907-200212

main51900-37050iXZU330,340..40T199907-200212

main51900-37060iXZU342200010-200206

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-37050iXZU302,307..WT200010-200206

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-37090iXZU300,307,330,340199907-200212

9161160820

main91611-60820

91645C1032

main91645-C1032

9415081000

main94150-81000

7 parts on this diagram · 6 diagrams in section
