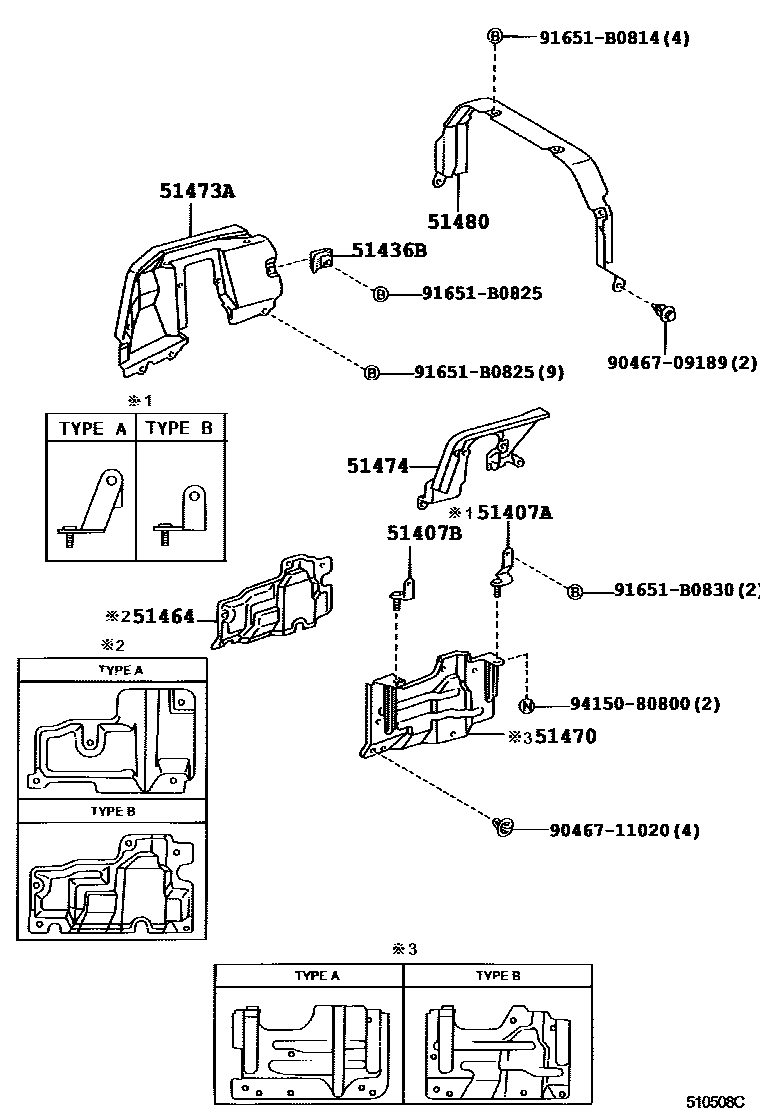

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-37060iXZU302,307..WT200010-200206

TYPE A:REFER TO ILLUSTRATION

main51407-37070iXZU30#,330,34#199907-200206

TYPE B:REFER TO ILLUSTRATION

51407BBRACKET SUB-ASSY, ENGINE UNDER COVER

main51407-37110iXZU320199907-200206

REAR

main51407-37120iXZU300,330,340199907-200206

sub51407-37250

main51407-37130iXZU320199907-200206

FRONT

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080iXZU30#,320,330,34#199907-200212

51464SILENCER, TRANSMISSION UNDER, LH

main51464-37040iXZU30#,330,34#199907-200206

TYPE A:REFER TO ILLUSTRATION

main51464-37050iXZU320199907-200206

TYPE B:REFER TO ILLUSTRATION

51470COVER ASSY, TRANSMISSION UNDER

main51470-37070iXZU302,307,342200010-200206

TYPE A:REFER TO ILLUSTRATION

main51470-37100iXZU302,307..WT200010-200206

TYPE B:REFER TO ILLUSTRATION

main51470-37120iXZU300,330,340199907-200206

main51470-37130iXZU320199907-200206

main51470-37280iXZU320200206-200212

main51470-37290iXZU300,330,340200206-200212

sub51470-37291

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37120iXZU300,320,330,340199907-200212

sub51473-37121

main51473-37131iXZU307200010-200206

main51473-37180iXZU302,342200010-200206

sub51473-37182

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37090iXZU307200010-200206

sub51474-37091

main51474-37120iXZU302,342200010-200206

main51474-37130iXZU300,320,330,340199907-200212

sub51474-37131

51480SHUTTER ASSY, ENGINE REAR SIDE, RH

main51480-37010iXZU30#199907-200212

main51480-37020iXZU330,34#199907-200212

9046709189

main90467-09189

9046711020

main90467-11020

91651B0814

main91651-B0814

91651B0825

main91651-B0825

91651B0830

main91651-B0830

9415080800

main94150-80800

14 parts on this diagram · 6 diagrams in section
