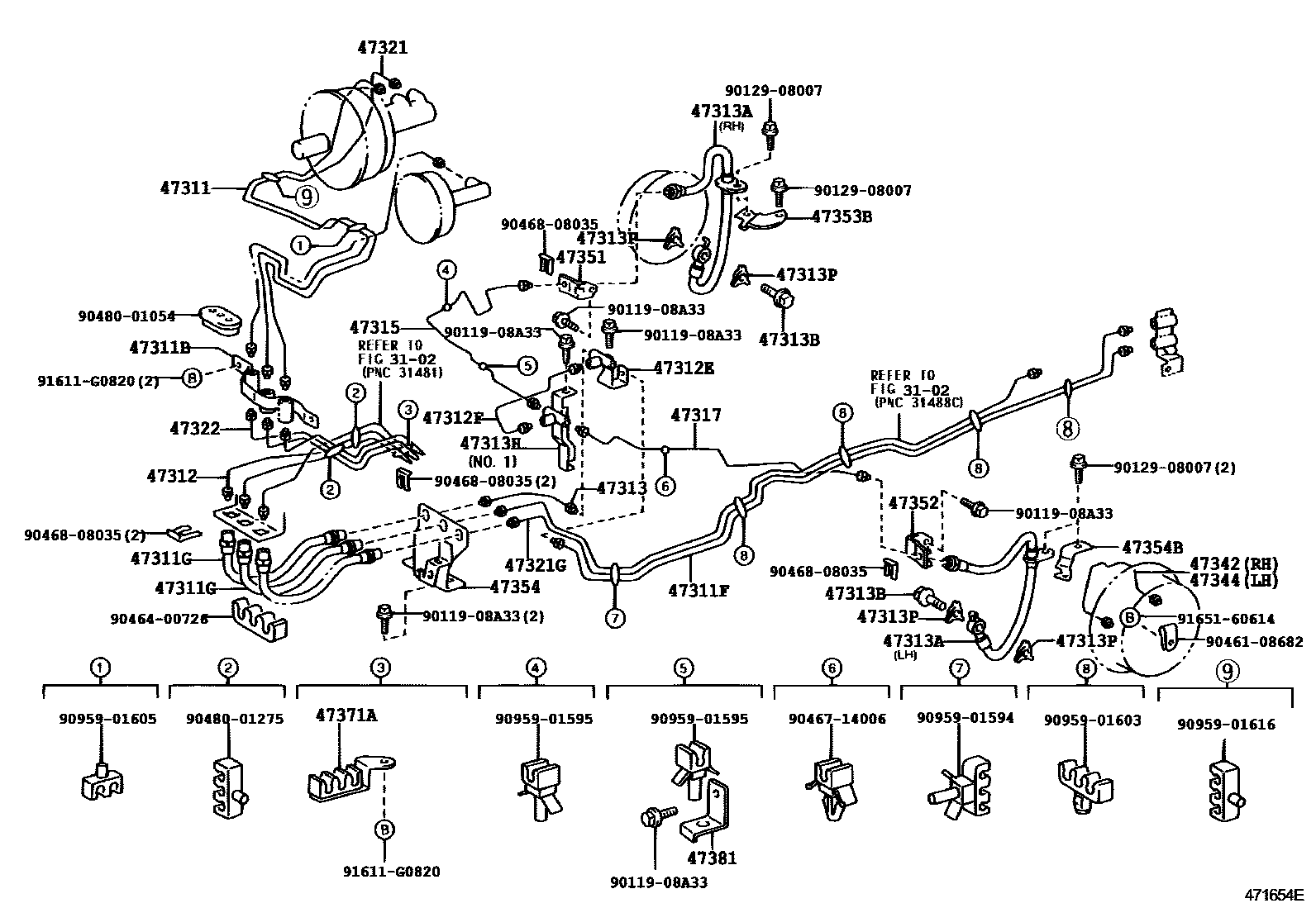

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1W(LSPV) 0011 1W(LSPV) 0012 1W(LSPV) 0013 1W/O(LSPV) 0014 1W/O(LSPV) 0015 1W/O(LSPV) 0016 1 0017 1W(LSPV)

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-37160iXZU302,307,342200010-200206

sub47311-37161

main47311-37170iXZU300,320,330,340199907-200103

sub47311-37171

main47311-37171iXZU300,320,330,340200103-200212

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37010iXZU30#,320,330,34#199907-200212

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37180iXZU302,307,342200010-200206

main47311-37210iXZU300,330,340199907-200212

main47311-37260iXZU320199907-200212

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02A79iXZU30#,320,330,34#199907-200212

47312TUBE, FRONT BRAKE, NO.2

main47312-37060iXZU302,307,342200010-200206

main47312-37070iXZU300,320,330,340199907-200212

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-12060iXZU302,307200010-200206

main90413-12007iXZU300,320,330,340199907-200212

47312FTUBE, FRONT BRAKE, FRAME, NO.2

main47312-37080iXZU302,307200010-200206

main47312-37080iXZU300199907-200212

NO.2

main47312-37110iXZU340199907-200212

NO.2

main47312-37110iXZU342200010-200206

main47312-37130iXZU330199907-200212

NO.2

main47312-37220iXZU300,320,330,340199907-200212

NO.1

47313TUBE, FRONT BRAKE, NO.3

main47313-37140iXZU302,307,342..WT200010-200011

main47313-37160iXZU302..ST200010-200206

main47313-37250iXZU300,320,330,340199907-200212

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A68iXZU307200010-200206

RH

main90947-02A69iXZU307200010-200206

LH

main90947-02A70iXZU330,340..40T199907-200212

RH

main90947-02A71iXZU330,340..40T199907-200212

LH

main90947-02A72iXZU302,342200010-200206

RH

main90947-02B27iXZU302,342200010-200206

LH

main90947-02B67iXZU300,320,330..20T,30T199907-200212

RH

main90947-02B68iXZU300,320,330..20T,30T199907-200212

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iXZU30#,320,330,34#199907-200212

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90904-12076iXZU302,307,342200010-200206

main90904-12076iXZU300,320,330,340199907-200212

NO.2

main90904-13053iXZU300,320,330,340199907-200212

NO.1

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iXZU30#,320,330,34#199907-200212

47315TUBE, FRONT BRAKE, NO.5

main47315-37070iXZU302,342200010-200203

sub47315-37071

main47315-37071iXZU302,342200203-200204

sub47315-37072

main47315-37072iXZU302,342200204-200206

sub47315-37073

main47315-37080iXZU307200010-200206

sub47315-37081

main47315-37150iXZU300,330..20T,30T199907-200206

sub47315-37151

main47315-37151iXZU300,330..20T,30T200206-200212

main47315-37160iXZU320199907-200212

main47315-37250iXZU330,340..40T199907-200206

sub47315-37251

main47315-37251iXZU330,340..40T200206-200212

47317TUBE, FRONT BRAKE, NO.7

main47317-37040iXZU302,342200010-200105

sub47317-37041

main47317-37041iXZU302,342200105-200203

sub47317-37042

main47317-37042iXZU302,342200203-200206

main47317-37050iXZU307200010-200206

sub47317-37051

main47317-37170iXZU300,330..20T,30T199907-200206

sub47317-37171

main47317-37171iXZU300,330..20T,30T200206-200212

main47317-37180iXZU320199907-200212

main47317-37310iXZU330,340..40T199907-200206

sub47317-37311

main47317-37311iXZU330,340..40T200206-200212

47321TUBE, REAR BRAKE, NO.1

main47321-37160iXZU302,307,342200010-200206

main47321-37170iXZU300,320,330,340199907-200008

sub47321-37171

main47321-37171iXZU300,320,330,340200008-200103

sub47321-37172

main47321-37172iXZU300,320,330,340200103-200212

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37180iXZU302,307,342200010-200206

main47321-37210iXZU300,330,340199907-200212

main47321-37260iXZU320199907-200212

47322TUBE, REAR BRAKE, NO.2

main47322-37200iXZU302,307,342200010-200206

main47322-37210iXZU300,320,330,340199907-200212

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-37040iXZU300,320,330..20T,30T199907-200212

main47342-37060iXZU330,340..40T199907-200102

sub47342-37061

main47342-37061iXZU330,340..40T200102-200212

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-37060iXZU330,340..40T199907-200102

sub47342-37061

main47342-37061iXZU330,340..40T200102-200212

main47344-37020iXZU300,320,330..20T,30T199907-200212

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37100iXZU307200010-200206

main47351-37130iXZU302,342200010-200206

main47351-37200iXZU300,320,330..20T,30T199907-200212

main47351-37230iXZU330,340..40T199907-200212

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47351-37100iXZU307200010-200206

main47352-37050iXZU302,342200010-200206

main47352-37090iXZU300,320,330..20T,30T199907-200212

main47352-37140iXZU330,340..40T199907-200212

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-37070iXZU302..ST200010-200206

main47353-37110iXZU302,307,342..WT200010-200206

main47353-37120iXZU320199907-200212

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-37010iXZU330,340..40T199907-200212

main47353-37090iXZU307200010-200206

main47353-37150iXZU302,342200010-200206

main47353-37230iXZU300,320,330..20T,30T199907-200212

47354BRACKET, FRONT FLEXIBLE HOSE

main47351-37260iXZU300,320,330,340199907-200212

main47354-37110iXZU302,307,342200010-200202

sub47354-37111

main47354-37111iXZU302,307,342200202-200206

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37050iXZU330,340..40T199907-200212

main47354-37100iXZU307200010-200206

main47354-37160iXZU302,342200010-200206

main47354-37220iXZU300,320,330..20T,30T199907-200212

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37020iXZU300,320,330,340199907-200212

main47371-37030iXZU302,307,342200010-200206

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-37070iXZU320199907-200212

9011908A33

main90119-08A33

9012908007

main90129-08007

9046108682

main90461-08682

9046400726

main90464-00726

9046714006

main90467-14006

9046808035

main90468-08035

9048001054

main90480-01054

9048001275

main90480-01275

9095901594

main90959-01594

9095901595

main90959-01595

9095901603

main90959-01603

9095901605

main90959-01605

9095901616

main90959-01616

91611G0820

main91611-G0820

9165160614

main91651-60614
