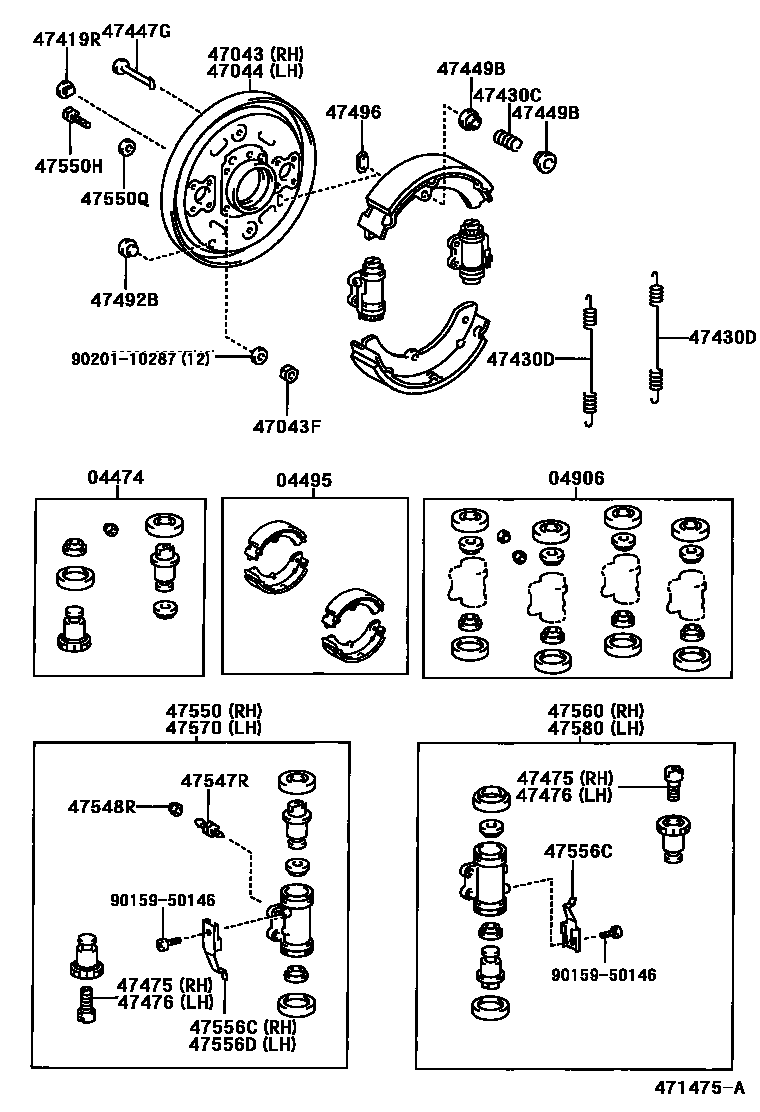

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-36020iXZU300,320,330..20T,30T199907-200212

RH

main04474-36030iXZU300,320,330..20T,30T199907-200212

LH

main04474-36040iXZU302,342200010-200206

RH

sub04474-36041

main04474-36050iXZU302,342200010-200206

LH

sub04474-36051

main04474-37090iXZU307200010-200206

RH

main04474-37100iXZU307200010-200206

LH

main04474-37170iXZU330,340..40T199907-200212

RH

sub04474-37171

main04474-37180iXZU330,340..40T199907-200212

LH

sub04468-37171

04495SHOE KIT, REAR BRAKE

main04494-36210iXZU300,302,320,330,342..20T,30T199907-200212

MARK NBK LN519

sub04494-36290

main04494-36280iXZU307200010-200206

MARK AK LA514

main04495-37030iXZU330,340..40T199907-200102

MARK NBK D2167

sub04495-37031

main04495-37031iXZU330,340..40T200102-200207

MARK NBK D2167

sub04495-37032

main04495-37032iXZU330,340..40T200207-200212

MARK NBK D2177

sub04495-37034

main04495-37040iXZU302,342200203-200206

MARK NBK D9227

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36170iXZU300,320,330..20T,30T199907-200212

main04906-36180iXZU302,342200010-200206

sub04906-36181

main04906-37070iXZU307200010-200206

main04906-37090iXZU330,340..40T199907-200212

sub04906-37091

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36160iXZU300,320,330..20T,30T199907-200212

main47043-37050iXZU307200010-200206

main47043-37060iXZU302,342..WT200010-200206

main47043-37070iXZU302..ST200010-200206

main47043-37100iXZU330,340..40T199907-200102

sub47043-37101

sub47491-37090

main47043-37101iXZU330,340..40T200102-200212

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002iXZU30#,320,330,342..20T,30T199907-200212

main94130-01441iXZU330,340..40T199907-200212

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36160iXZU300,320,330..20T,30T199907-200212

main47044-37050iXZU307200010-200206

main47044-37060iXZU302,342..WT200010-200206

main47044-37070iXZU302..ST200010-200206

main47044-37100iXZU330,340..40T199907-200102

sub47044-37101

sub47491-37090

main47044-37101iXZU330,340..40T200102-200212

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011iXZU300,320,330..20T,30T199907-200112

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iXZU30#,320,330,342..20T,30T199907-200212

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006iXZU307200010-200206

main90507-29006iXZU300,302,320,330,342..20T,30T199907-200212

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-35020iXZU307200010-200206

main47447-36020iXZU302..ST200010-200206

main47447-60010iXZU300,302,320,330,342..(20T,30T)..WT199907-200212

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iXZU30#,320,330,342..20T,30T199907-200212

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36060iXZU300,320,330..20T,30T199907-200212

main47553-36070iXZU302,307,342200010-200206

main47553-37070iXZU330,340..40T199907-200212

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36060iXZU300,320,330..20T,30T199907-200212

main47554-36070iXZU302,307,342200010-200206

main47554-37030iXZU330,340..40T199907-200212

sub47554-37050

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-37040iXZU330,340..40T199907-200107

NO.1

main47491-37090iXZU330,340..40T200107-200212

NO.1 & NO.2

main47492-28010iXZU30#,320,330,342..20T,30T199907-200212

main47492-37010iXZU330,340..40T199907-200107

NO.2

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010iXZU30#,320,330,342..20T,30T199907-200112

sub47491-36020

main47491-36020iXZU30#,320,330,342..20T,30T200112-200212

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iXZU30#,320,330,342..20T,30T199907-200212

main47547-37130iXZU330,340..40T199907-200212

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iXZU30#,320,330,34#199907-200212

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37090iXZU307200010-200206

sub47550-37091

main47550-37111iXZU302,342200010-200206

sub47550-37112

main47550-37120iXZU300,320,330..20T,30T199907-200212

sub47550-37121

main47550-37140iXZU330,340..40T199907-200212

sub47550-37141

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081iXZU307200010-200206

main90101-10127iXZU300,302,320,330,342..20T,30T199907-200212

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002iXZU307200010-200206

main90201-10287iXZU300,302,320,330,342..20T,30T199907-200212

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47556-37010iXZU330,340..40T199907-200212

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-36051iXZU300,320,330..20T,30T199907-200212

main47555-37070iXZU330,340..40T199907-200212

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47555-36051iXZU300,320,330..20T,30T199907-200212

main47555-37070iXZU330,340..40T199907-200212

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36200iXZU300,320,330..20T,30T199907-200212

sub47560-36201

main47560-37040iXZU330,340..40T199907-200212

sub47560-37041

main47560-37061iXZU307200010-200206

sub47560-37062

main47560-37081iXZU302,342200010-200206

sub47560-37082

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37050iXZU307200010-200206

sub47570-37051

main47570-37071iXZU302,342200010-200206

sub47570-37072

main47570-37080iXZU300,320,330..20T,30T199907-200212

sub47570-37081

main47570-37100iXZU330,340..40T199907-200212

sub47570-37101

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36200iXZU300,320,330..20T,30T199907-200212

sub47580-36201

main47580-37030iXZU330,340..40T199907-200212

sub47580-37031

main47580-37051iXZU307200010-200206

sub47580-37052

main47580-37071iXZU302,342200010-200206

sub47580-37072

9015950146

main90159-50146

9020110287

main90201-10287

28 parts on this diagram · 3 diagrams in section
