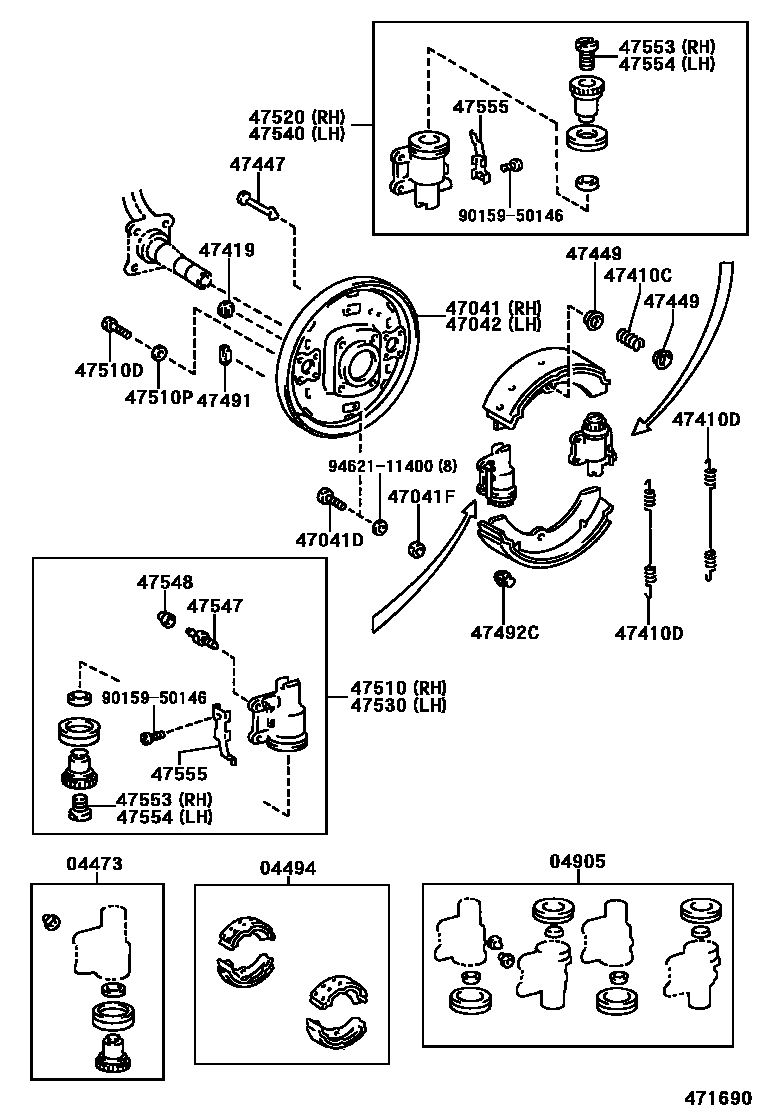

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04473CYLINDER KIT, FRONT WHEEL

main04473-36030iXZU300,320,330..20T,30T199907-200212

RH

main04473-36040iXZU300,320,330..20T,30T199907-200212

LH

main04473-37070iXZU330,340..40T199907-200212

RH

sub04473-37071

main04473-37080iXZU330,340..40T199907-200212

LH

sub04469-37091

04494SHOE KIT, FRONT BRAKE

main04494-36210iXZU300,320,330..20T,30T199907-200212

MARK NBK LN519

sub04494-36290

main04494-37020iXZU330,340..40T199907-200102

MARK NBK D2167

sub04494-37021

main04494-37021iXZU330,340..40T200102-200212

MARK NBK D2167

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36140iXZU300,320,330..20T,30T199907-200212

main04905-37060iXZU330,340..40T199907-200212

sub04905-37061

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-37100iXZU300,320,330..30T199907-200102

sub47041-37101

main47041-37101iXZU300,320,330..20T,30T200102-200212

main47041-37110iXZU330,340..40T199907-200102

sub47041-37111

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-14001iXZU300,320,330..20T,30T199907-200212

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94130-01441iXZU300,320,330,340199907-200212

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-37100iXZU300,320,330..30T199907-200102

sub47042-37101

main47042-37101iXZU300,320,330..20T,30T200102-200212

main47042-37110iXZU330,340..40T199907-200102

sub47042-37111

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iXZU300,320,330..20T,30T199907-200212

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90507-29006iXZU300,320,330..20T,30T199907-200212

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011iXZU300,320,330..20T,30T199907-200112

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36020iXZU300,320,330..20T,30T199907-200212

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iXZU300,320,330..20T,30T199907-200212

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iXZU300,320,330..20T,30T199907-200112

sub47491-36020

main47491-36020iXZU300,320,330..20T,30T200112-200212

main47491-37070iXZU330,340..40T199907-200107

RH

main47491-37080iXZU330,340..40T199907-200107

LH

main47491-37090iXZU330,340..40T200107-200212

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47491-37090iXZU330,340..40T200107-200212

main47492-28010iXZU300,320,330..20T,30T199907-200212

main47492-37010iXZU330,340..40T199907-200107

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36170iXZU300,320,330..20T,30T199907-200212

sub47510-36171

main47510-37080iXZU330,340..40T199907-200212

sub47510-37081

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-10127iXZU300,320,330..20T,30T199907-200212

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-10287iXZU300,320,330..20T,30T199907-200212

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36180iXZU300,320,330..20T,30T199907-200212

sub47520-36181

main47520-37100iXZU330,340..40T199907-200212

sub47520-37101

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36170iXZU300,320,330..20T,30T199907-200212

sub47530-36171

main47530-37080iXZU330,340..40T199907-200212

sub47530-37081

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36180iXZU300,320,330..20T,30T199907-200212

sub47540-36181

main47540-37100iXZU330,340..40T199907-200212

sub47540-37101

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-27020iXZU300,320,330..20T,30T199907-200212

main47547-37130iXZU330,340..40T199907-200212

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iXZU300,320,330,340199907-200212

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36060iXZU300,320,330..20T,30T199907-200212

main47554-37050iXZU330,340..40T199907-200212

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47553-37050iXZU330,340..40T199907-200212

main47554-36060iXZU300,320,330..20T,30T199907-200212

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040iXZU300,320,330..20T,30T199907-200212

main47555-37070iXZU330,340..40T199907-200212

9015950146

main90159-50146

9462111400

main94621-11400

27 parts on this diagram · 2 diagrams in section
