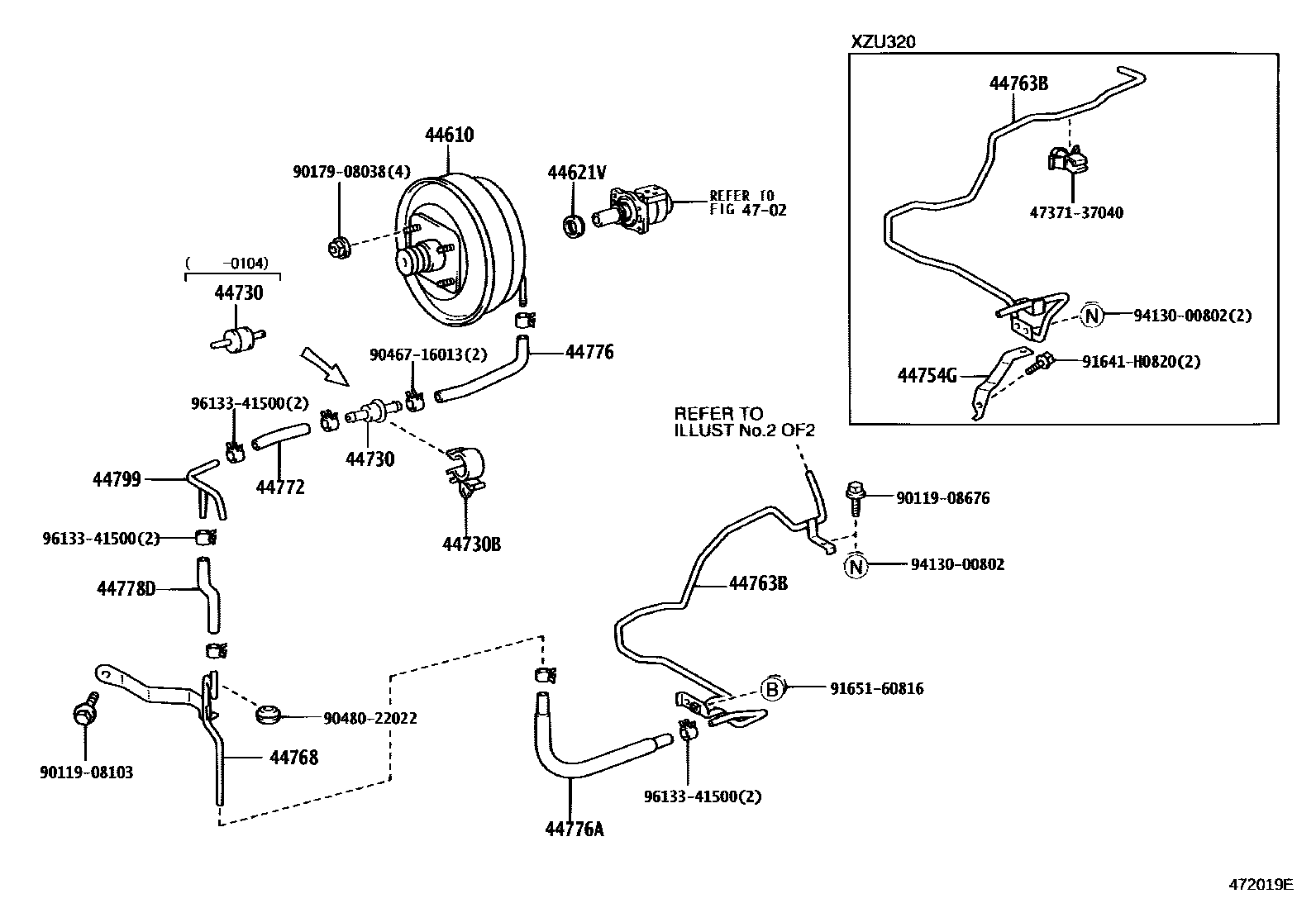

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-37171iXZU30#,320,330,34#¥50,700200002-200212

main44610-37220iXZU300,320,330,340¥73,000199907-200002

sub44610-37171¥50,700

44621VSEAL, BOOSTER BODY

main44621-36050iXZU300,320,330,340¥320199907-200212

main44621-36070iXZU302,307,342¥270200010-200206

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20070iXZU30#,320,330,34#¥2,170199907-200104

main44730-35010iXZU30#,320,330,34#¥1,430200104-200212

44730BCLAMP, VACUUM HOSE

main44597-37010iXZU30#,320,330,34#¥300199907-200105

main44597-37020iXZU30#,320,330,34#¥300200105-200212

sub44597-37021¥180

44754GBRACKET, VACUUM TUBE, NO.5

main44754-37100iXZU320¥680199907-200212

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44764-37120iXZU320¥3,430199907-200212

main44764-37180iXZU300,330,340¥4,520199907-200212

sub44764-37181¥4,520

main44764-37211iXZU302,307,342¥1,780200010-200206

44768TUBE, BOOSTER VACUUM

main44768-37110iXZU302,307,342¥1,390200010-200206

main44768-37120iXZU300,320,330,340¥1,750199907-200212

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-37020iXZU30#,320,330,34#¥430199907-200212

44776HOSE, BRAKE BOOSTER

main44776-37050iXZU302,307,342¥430200010-200206

main44776-37070iXZU300,320,330,340¥940199907-200108

sub44776-37230¥940

main44776-37230iXZU300,320,330,340¥940200108-200212

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37170iXZU302,307,342¥1,300200010-200206

L=380

main44776-37190iXZU300,320,330,340¥1,130199907-200212

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37060iXZU30#,320,330,34#¥550199907-200212

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37170iXZU30#,320,330,34#¥550199907-200212

sub44778-37171¥550

44799WAY, BRAKE VACUUM HOSE

main44799-37010iXZU30#,320,330,34#¥450199907-200212

4702

4737137040BRACKET, CONNECTOR

main47371-37040¥320

9011908103

main90119-08103¥90

9011908676

main90119-08676¥120

9017908038

main90179-08038¥130

9046716013

main90467-16013¥300

9048022022

main90480-22022¥130

91641H0820

main91641-H0820¥90

9165160816

main91651-60816¥100

9413000802

main94130-00802¥90

9613341500

main96133-41500¥140

24 parts on this diagram · 5 diagrams in section
