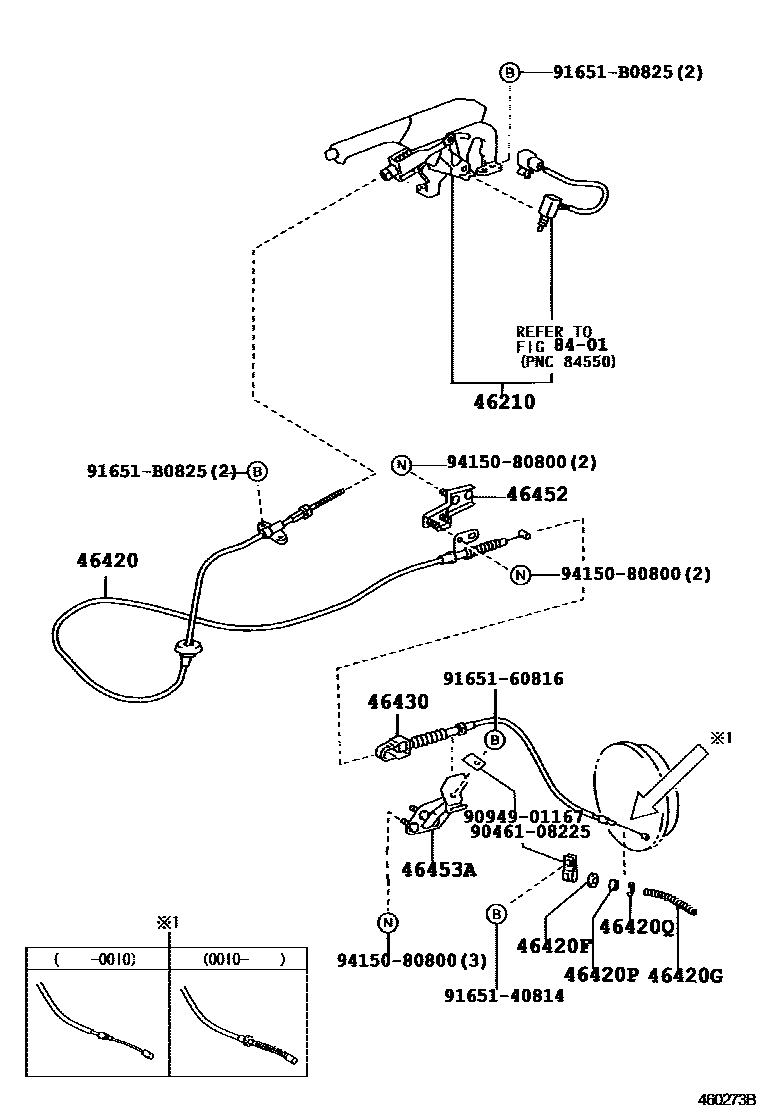

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

46210LEVER ASSY, PARKING BRAKE

main46210-37012-B0iXZU302,307,342200010-200206

DK.CHARCOAL,TRIM1#

main46210-37030-B0iXZU300,320,330,340199907-200003

DK.CHARCOAL,TRIM1#

sub46210-37031

main46210-37031-B0iXZU300,320,330,340200003-200209

DK.CHARCOAL,TRIM1#

sub46210-37032

main46210-37032iXZU300,320,330,340200209-200212

main46210-37041-B0iXZU302..WT200010-200206

W(BRAKE LOCK SYSTEM),DK.CHARCOAL,TRIM1#

sub46210-37042

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37161iXZU302,307,342200010-200206

sub46420-37162

main46420-37170iXZU320199907-200212

main46420-37180iXZU300,330,340199907-200212

sub46420-37181

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU30#,320,330,342..20T,30T199907-200212

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU320,330..30T199907-200212

main90501-14021iXZU300199907-200010

main90501-14164iXZU30#,342200010-200212

46420PSPACER, PARKING BRAKE

main90560-08002iXZU300,320,330..30T199907-200212

main90560-09045iXZU30#,342200010-200212

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU30#,320,330,342..20T,30T199907-200212

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37320iXZU330,340..40T199907-200212

main46430-37370iXZU300199907-200010

main46430-37380iXZU330..30T199907-200212

main46430-37390iXZU320199907-200212

main46430-37500iXZU302,307200010-200206

main46430-37540iXZU342200010-200206

main46430-37560iXZU300200010-200212

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-37020iXZU30#,330,34#199907-200212

main46452-37090iXZU320199907-200212

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37070iXZU30#,330,34#199907-200212

main46453-37170iXZU320199907-200212

8401

9046108225

main90461-08225

9094901167

main90949-01167

9165140814

main91651-40814

9165160816

main91651-60816

91651B0825

main91651-B0825

9415080800

main94150-80800

16 parts on this diagram · 7 diagrams in section
