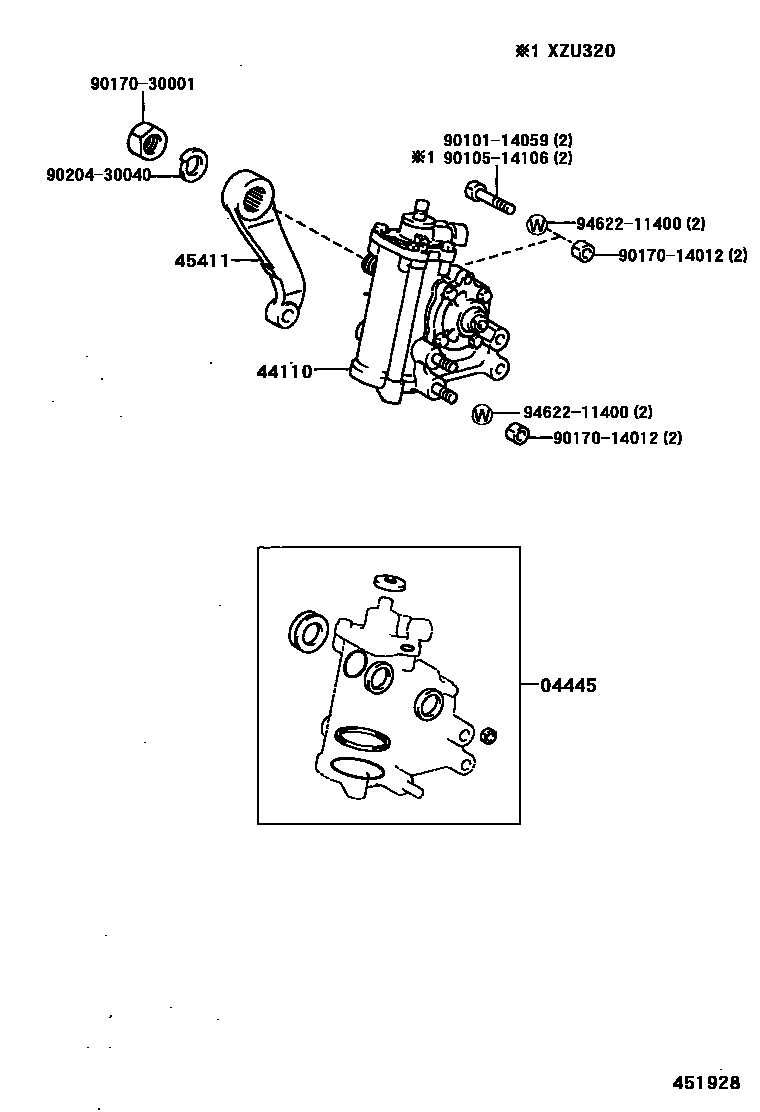

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-37040iXZU300,302,320,330,34#199907-200212

44110GEAR ASSY, POWER STEERING

main44110-37110iXZU302,342200010-200206

main44110-37130iXZU300,330,340199907-200212

main44110-37140iXZU320199907-200212

45411ARM, PITMAN

main45411-37110iXZU300,320,330..20T,30T199907-200212

sub45411-37111

main45411-37120iXZU330,340..40T199907-200212

main45411-37130iXZU302,342200010-200206

9010114059

main90101-14059

9010514106

main90105-14106

9017014012

main90170-14012

9017030001

main90170-30001

9020430040

main90204-30040

9462211400

main94622-11400

9 parts on this diagram · 9 diagrams in section
