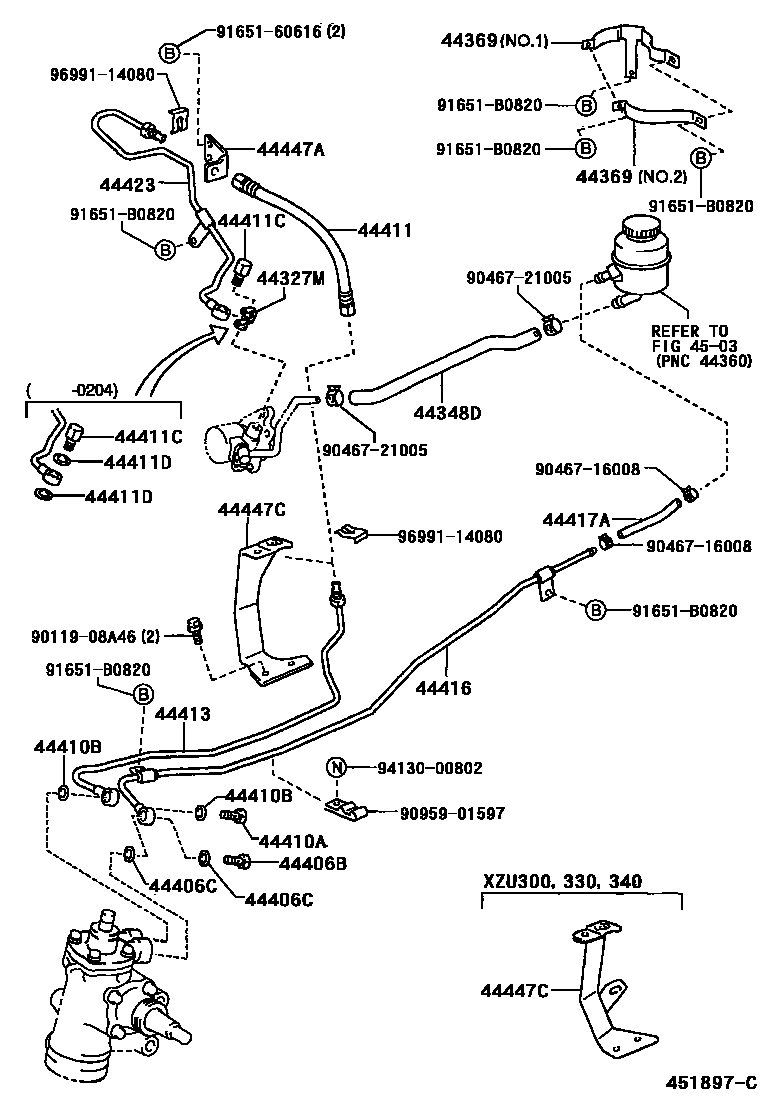

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327MGASKET, PRESSURE PORT, NO.2

main44327-30030iXZU30#,320,330,34#200204-200212

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-37110iXZU300,320,330,340199907-200212

main44348-37140iXZU302,307,342200010-200206

44369BRACKET, OIL RESERVOIR, NO.1

main44369-37040iXZU300,320,330,340199907-200212

NO.1

main44369-37080iXZU302,307,342200010-200206

NO.1

main44369-37090iXZU302,307,342200010-200206

NO.2

main44369-37100iXZU300,320,330,340199907-200212

NO.2

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-14003iXZU300,302,320,330,34#199907-200212

44406CGASKET(FOR RETURN TUBE)

main90430-14235iXZU300,302,320,330,34#199907-200212

44410TUBE ASSY, PRESSURE FEED

main44410-37061iXZU307200010-200206

sub44410-37063

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-14003iXZU300,302,320,330,34#199907-200212

main96341-41603iXZU307200010-200206

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235iXZU300,302,320,330,34#199907-200212

44411HOSE, PRESSURE FEED

main44411-37101iXZU302,342200010-200206

sub44411-37103

main44411-37141iXZU300,320,330,340199907-200212

sub44411-37142

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iXZU302,307,342200010-200206

main90904-01001iXZU300,320,330,340199907-200212

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16168iXZU30#,320,330,34#199907-200204

44413TUBE, PRESSURE FEED, NO.1

main44413-37100iXZU300,320,330,340199907-200212

sub44413-37101

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iXZU307200010-200206

main44416-37250iXZU300,320,330,340199907-200212

sub44416-37251

main44416-37280iXZU302,342200010-200206

44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

main44412-37120iXZU300,320,330,340199911-200212

main90445-18146iXZU300,320,330,340199907-199911

44423TUBE, OIL PUMP TO GEAR BOX

main44423-37020iXZU300,320,330,340199907-200005

sub44423-37021

main44423-37021iXZU300,320,330,340200005-200212

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-37020iXZU300,320,330,340199907-200212

main44447-37120iXZU302,307,342200010-200206

44447CBRACKET, HOSE SUPPORT NO.2

main44447-37060iXZU300,330,340199907-200212

sub44447-37061

main44447-37070iXZU320199907-200212

main44447-37090iXZU302,307,342200010-200206

4503

9011908A46

main90119-08A46

9046716008

main90467-16008

9046721005

main90467-21005

9095901597

main90959-01597

9165160616

main91651-60616

91651B0820

main91651-B0820

9413000802

main94130-00802

9699114080

main96991-14080

26 parts on this diagram · 3 diagrams in section
