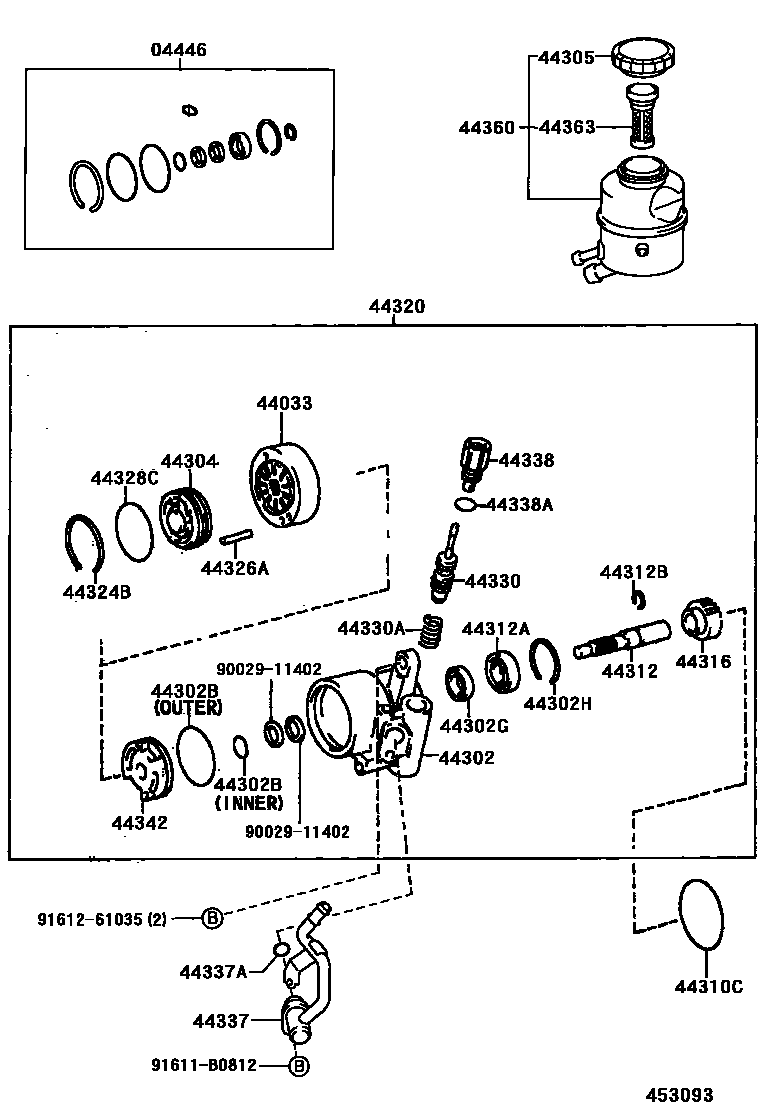

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-37010iXZU302,307,342200010-200206

main04446-60100iXZU300,320,330,340199907-200212

sub04446-37040

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-60010iXZU30#,320,330,34#199907-200212

sub44033-EV010

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36290iXZU300,320,330,340199907-200212

main44302-37060iXZU302,307,342200010-200206

sub44302-EV040

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20056iXZU30#,320,330,34#199907-200212

INNER

main90029-20057iXZU30#,320,330,34#199907-200212

OUTER

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iXZU30#,320,330,34#199907-200212

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52010iXZU302,307,342200010-200206

main90029-52011iXZU300,320,330,340199907-200212

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-37060iXZU302,307,342200010-200206

sub44304-EV030

main44304-60040iXZU300,320,330,340199907-200212

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iXZU30#,320,330,34#199907-200212

sub44305-12040

44310CRING, O(FOR VANE PUMP)

main90301-60002iXZU30#,320,330,34#199907-200212

44312SHAFT, VANE PUMP

main44312-60030iXZU30#,320,330,34#199907-200212

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iXZU300,320,330,340199907-200212

main90029-36010iXZU302,307,342200010-200206

subSZ010-04079

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iXZU30#,320,330,34#199907-200212

44316GEAR, VANE PUMP

main44316-37010iXZU302,307,342200010-200206

main44316-37020iXZU300,320,330,340199907-200212

44320PUMP ASSY, VANE

main44310-37060iXZU302,342200010-200206

sub44310-37061

main44310-37100iXZU307200010-200206

sub44310-37101

main44310-37110iXZU300,320,330..20T,30T199907-200212

main44310-37130iXZU330,340..40T199907-200212

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90029-52010iXZU300,320,330,340199907-200212

main90029-52012iXZU302,307,342200010-200206

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90029-14205iXZU30#,320,330,34#199907-200212

L=25.8

44328CRING, O(FOR PUMP HOUSING END)

main90029-20058iXZU30#,320,330,34#199907-200212

44330VALVE ASSY, FLOW CONTROL

main40410-37060iXZU300,302,320,330,342..20T,30T199907-200212

MARK C

main40410-37090iXZU330,340..40T199907-200212

MARK C

main40410-37100iXZU307200010-200206

MARK C

main40420-37060iXZU300,302,320,330,342..20T,30T199907-200212

MARK B

main40420-37090iXZU330,340..40T199907-200212

MARK B

main40420-37100iXZU307200010-200206

MARK B

main40430-37060iXZU300,302,320,330,342..20T,30T199907-200212

MARK A

main40430-37090iXZU330,340..40T199907-200212

MARK A

main40430-37100iXZU307200010-200206

MARK A

main44330-37060iXZU300,302,320,330,342..20T,30T199907-200212

MARK D

main44330-37090iXZU330,340..40T199907-200212

MARK D

main44330-37100iXZU307200010-200206

MARK D

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60013iXZU30#,320,330,34#199907-200212

44337UNION, POWER STEERING SUCTION PORT

main44337-37050iXZU300,320,330,340199907-200212

main44337-37080iXZU302,307,342200010-200206

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19016iXZU300,320,330,340199907-200212

44338UNION, PRESSURE PORT

main44338-36010iXZU300,320,330,340199907-200212

44338ARING, O(FOR PRESSURE PORT UNION)

main96711-19016iXZU30#,320,330,34#199907-200212

OD=19.6,ID=15.8

44342PLATE, VANE PUMP SIDE, REAR

main44342-37060iXZU302,307,342200010-200206

sub44342-37061

main44342-60050iXZU300,320,330,340199907-200212

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37130iXZU30#,320,330,34#199907-200212

44363STRAINER, OIL(FOR VANE PUMP)

main44363-37130iXZU30#,320,330,34#199907-200212

9002911402

main90029-11402

91611B0812

main91611-B0812

9161261035

main91612-61035
