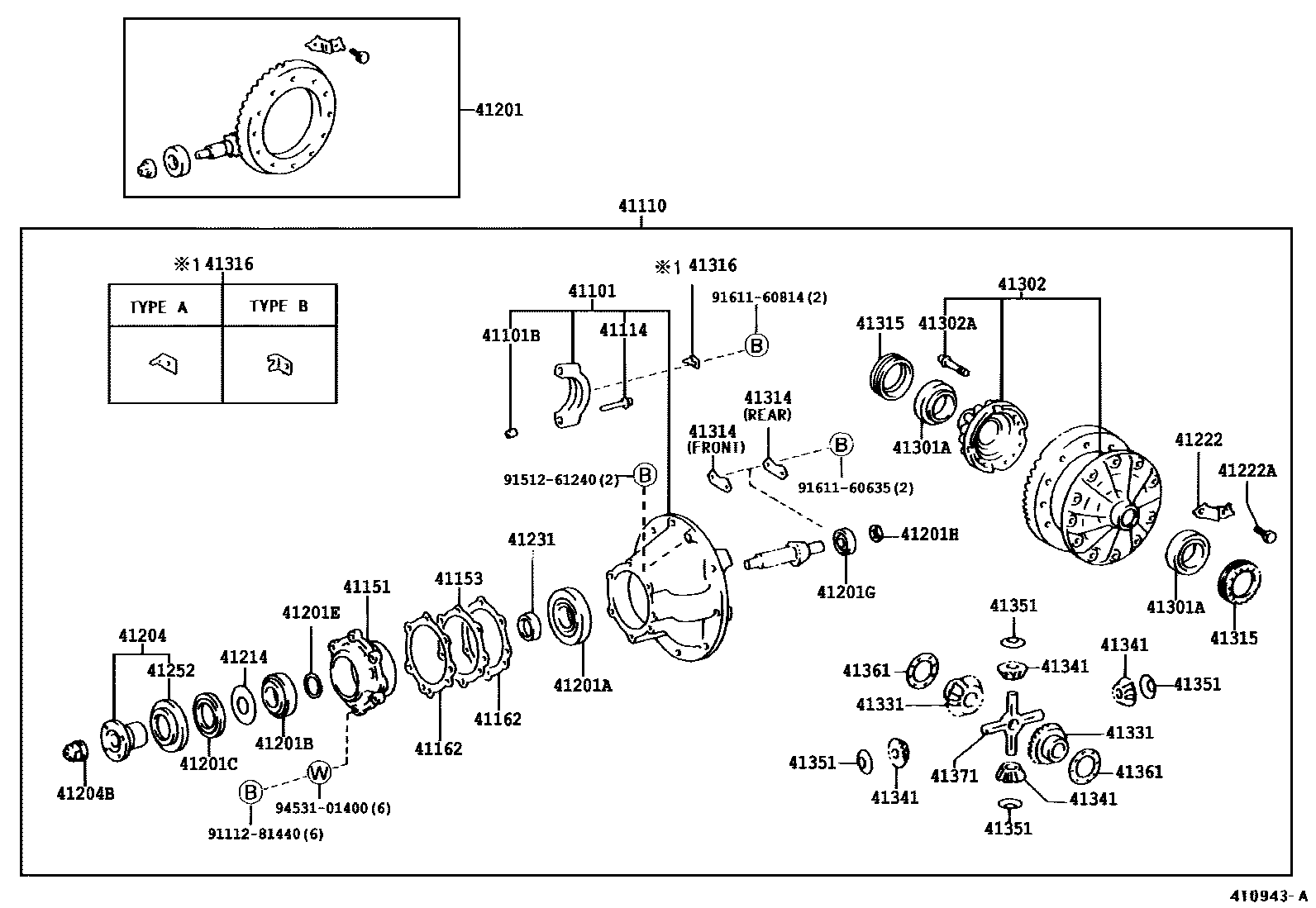

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41151CAGE, DIFFERENTIAL DRIVE PINION BEARING
41153SHIM, DIFFERENTIAL DRIVE PINION CAGE
T=0.10
T=0.15
T=0.25
T=0.45
41162GASKET, DIFFERENTIAL DRIVE PINION COVER
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=2.00
T=2.10
T=2.20
T=2.30
T=2.40
T=2.50
T=2.60
T=2.70
T=2.80
T=2.90
T=3.00
T=3.10
T=3.20
T=3.30
T=1.81
T=1.83
T=1.85
T=1.87
T=1.89
41201GBEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER
41201HRING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=29
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41314RETAINER, DRIVE PINION BEARING
FRONT
REAR
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.4
T=1.5
T=1.6
T=1.7
T=1.60
T=1.75
T=1.90
T=2.05
T=1.55
T=1.65
T=1.70
T=1.80
T=1.85
T=1.95
T=2.00
T=2.10
41371SPIDER, REAR DIFFERENTIAL
9111281440
main91112-81440
9151261240
main91512-61240
9161160635
main91611-60635
9161160814
main91611-60814
9453101400
main94531-01400
37 parts on this diagram · 3 diagrams in section
