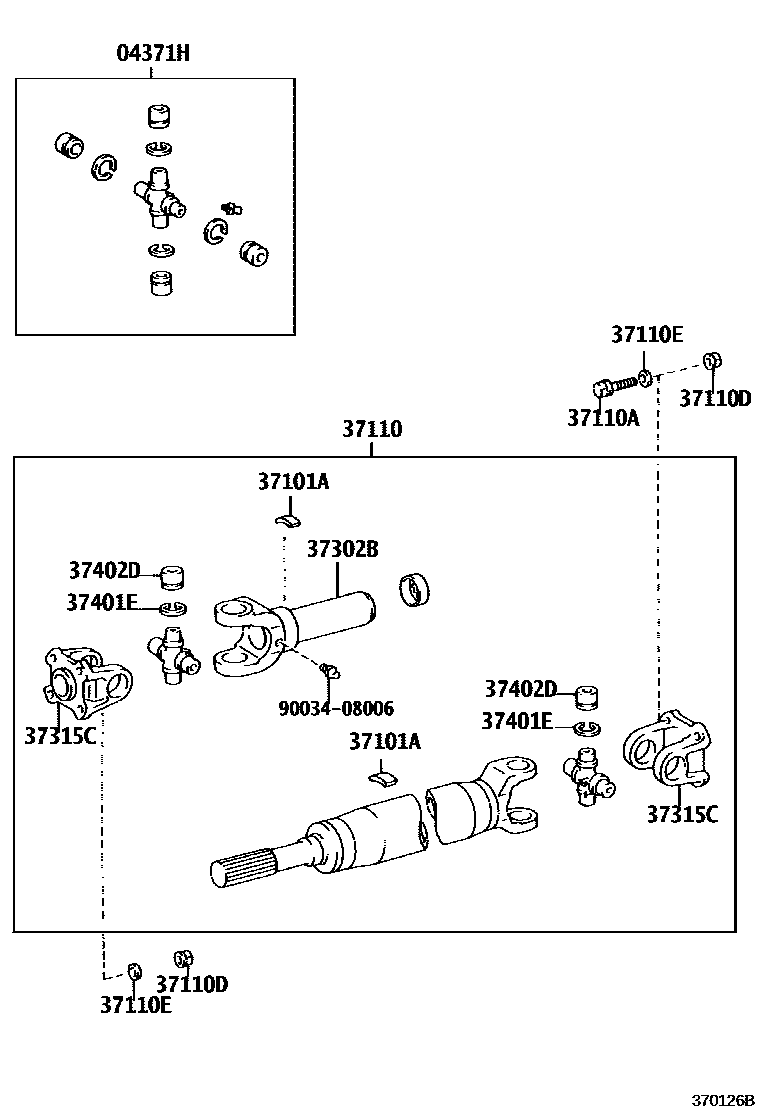

PROPELLER SHAFT & UNIVERSAL JOINT
04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
6G
12G
25G
50G
75G
10G,L=20.7
20G,L=41.4
30G,L=62.2
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
24G,T=4.5,L=25.1
28G,T=6,L=22.7
32G,T=6,L=24.3
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
37110ABOLT (FOR PROPELLER SHAFT)
*12-1.25PX35-17
*11-1.00PX28-16
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37302BYOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.99,MARK 1
T=2.01,MARK 2
T=2.03,MARK 3
T=2.05,MARK 4
T=2.07,MARK 5
T=2.09,MARK 6
T=2.11,MARK 7
T=2.13,MARK 8
T=2.15,MARK 9
T=2.17,MARK 10
37402DBEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER
9003408006
main90034-08006
11 parts on this diagram · 3 diagrams in section
