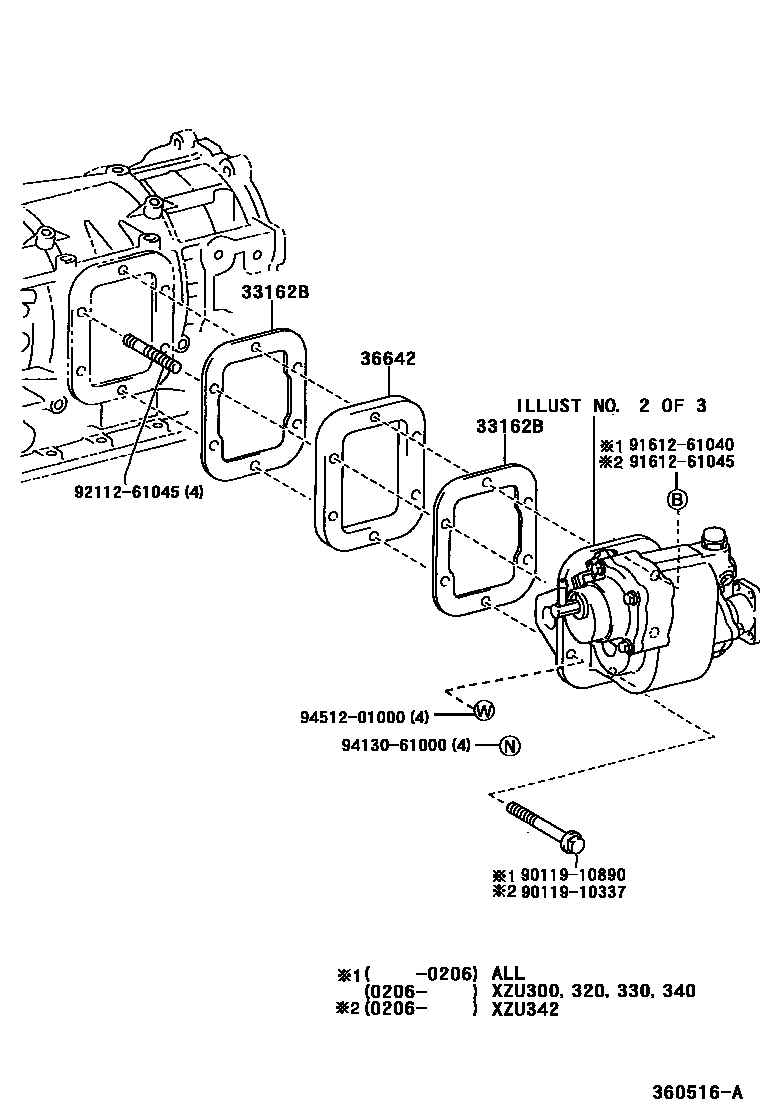

POWER TAKE-OFF CASE & GEAR

0001 1 0002 1 0003 1 0004 1 0005 1

33162BGASKET, POWER TAKE-OFF COVER

main33162-37030iXZU302,307199907-200212

36642SPACER, POWER TAKE-OFF COVER

main36642-37020iXZU300,320,330,34#199907-200212

9011910337

main90119-10337

9011910890

main90119-10890

9161261040

main91612-61040

9161261045

main91612-61045

9211261045

main92112-61045

9413061000

main94130-61000

9451201000

main94512-01000

9 parts on this diagram · 5 diagrams in section
