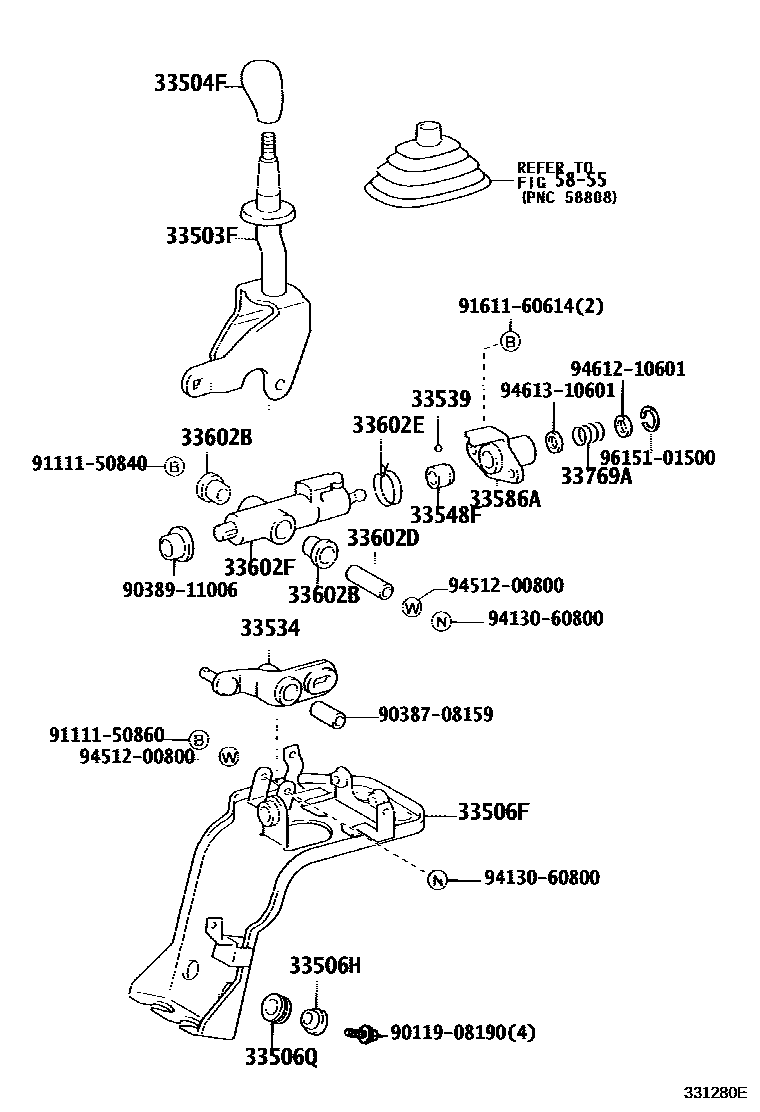

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37050iXZU302,307,342¥5,700200010-200206

main33055-37060iXZU302,307,342¥4,060200010-200206

W/O(POWER WINDOW)

main33055-37090iXZU300,320,330,340¥5,800199907-200105

sub33055-37091¥3,590

main33055-37091iXZU300,320,330,340¥3,590200105-200212

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-B1iXZU300,320,330,340200206-200212

DK.CHARCOAL,TRIM1#

sub33504-36051¥2,710

main33504-37040-B0iXZU30#,320,330,34#199907-200206

DK.CHARCOAL,TRIM1#

sub33504-36051¥2,710

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37031iXZU302,307,342¥9,100200010-200206

main33506-37050iXZU300,320,330,340¥13,400199907-200005

main33506-37051iXZU300,320,330,340¥13,400200005-200105

sub33506-37052¥9,100

main33506-37052iXZU300,320,330,340¥9,100200105-200212

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12056iXZU30#,320,330,34#¥100199907-200212

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060iXZU30#,320,330,34#¥80199907-200212

33534BELLCRANK, SELECTING

main33534-37060iXZU302,307,342¥1,520200010-200206

main33534-37080iXZU300,320,330,340¥2,210199907-200105

sub33534-37081¥1,380

main33534-37081iXZU300,320,330,340¥1,380200105-200212

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iXZU30#,320,330,34#¥120199907-200212

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iXZU30#,320,330,34#¥190199907-200212

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37020iXZU30#,320,330,34#¥1,460199907-200212

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iXZU30#,320,330,34#¥160199907-200212

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iXZU30#,320,330,34#¥200199907-200212

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034iXZU30#,320,330,34#¥130199907-200212

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37020iXZU302,307,342¥820200010-200206

main33602-37030iXZU300,320,330,340¥730199907-200212

33769ASPRING, CROSS SHAFT END

main33769-37020iXZU30#,320,330,34#¥120199907-200212

5855

9011908190

main90119-08190¥100

9038708159

main90387-08159¥220

9038911006

main90389-11006¥110

9111150840

main91111-50840¥200

9111150860

main91111-50860¥320

9161160614

main91611-60614¥180

9413060800

main94130-60800¥60

9451200800

main94512-00800¥80

9461210601

main94612-10601¥60

9461310601

main94613-10601¥70

9615101500

main96151-01500¥170

26 parts on this diagram · 6 diagrams in section
