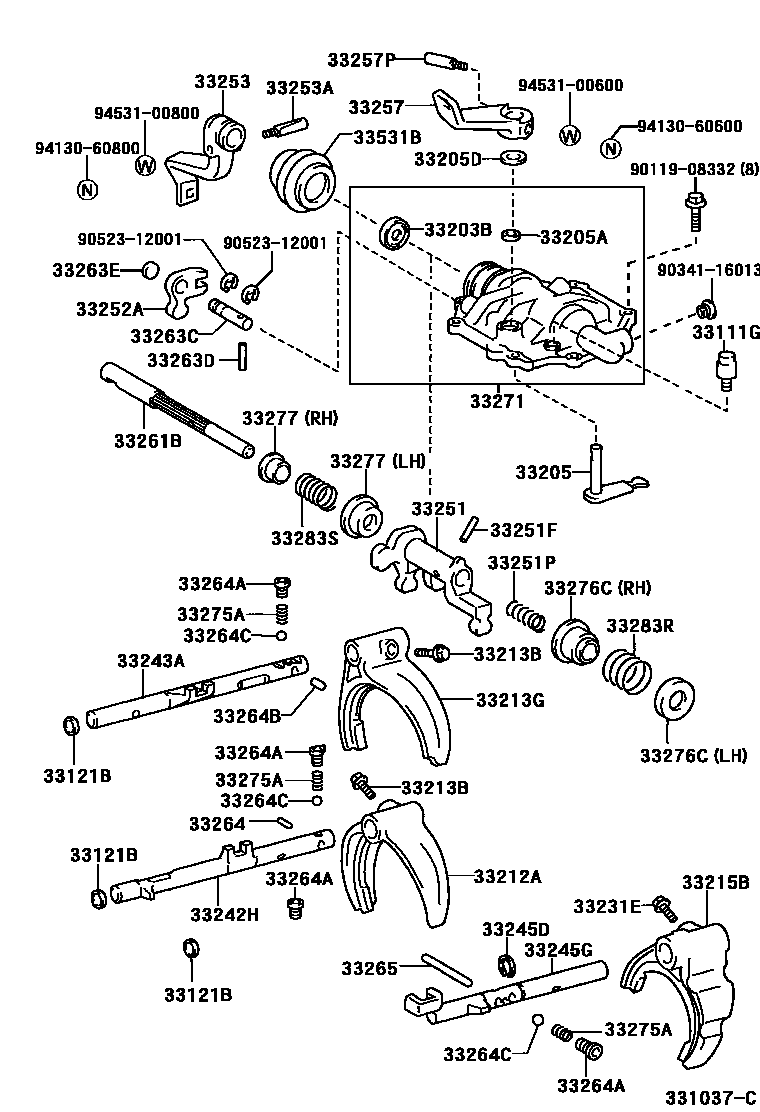

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
OD=28
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33215BFORK, GEAR SHIFT, NO.4
33231EBOLT(FOR REVERSE SHIFT HEAD)
33242HSHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33251PSPRING (FOR SHIFT & SELECT LEVER)
LH
RH
33252ALEVER, SHIFT, INNER NO.2
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33261BSHAFT, SHIFT LEVER
33263CSHAFT, SHIFT LEVER, NO.2
33263DPIN (FOR SHIFT LEVER SHAFT)
33263EPLUG (FOR SHIFT LEVER SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=13.4,OD=9.53
L=15.45
33264APLUG, INTERLOCK HOLE
OD=18
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13
L=13.6,OD=9.5
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
L=7.5,OD=9.67
L=81.9,OD=9.53
33271HOUSING, SHIFT LEVER SHAFT
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=29.3
L=28.8
33276CSEAT, SELECT SPRING
RH
LH
33277SEAT, SELECT SPRING, NO.2
RH
LH
33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9011908332
main90119-08332
9034116013
main90341-16013
9052312001
main90523-12001
9413060600
main94130-60600
9413060800
main94130-60800
9453100600
main94531-00600
9453100800
main94531-00800
46 parts on this diagram · 2 diagrams in section
