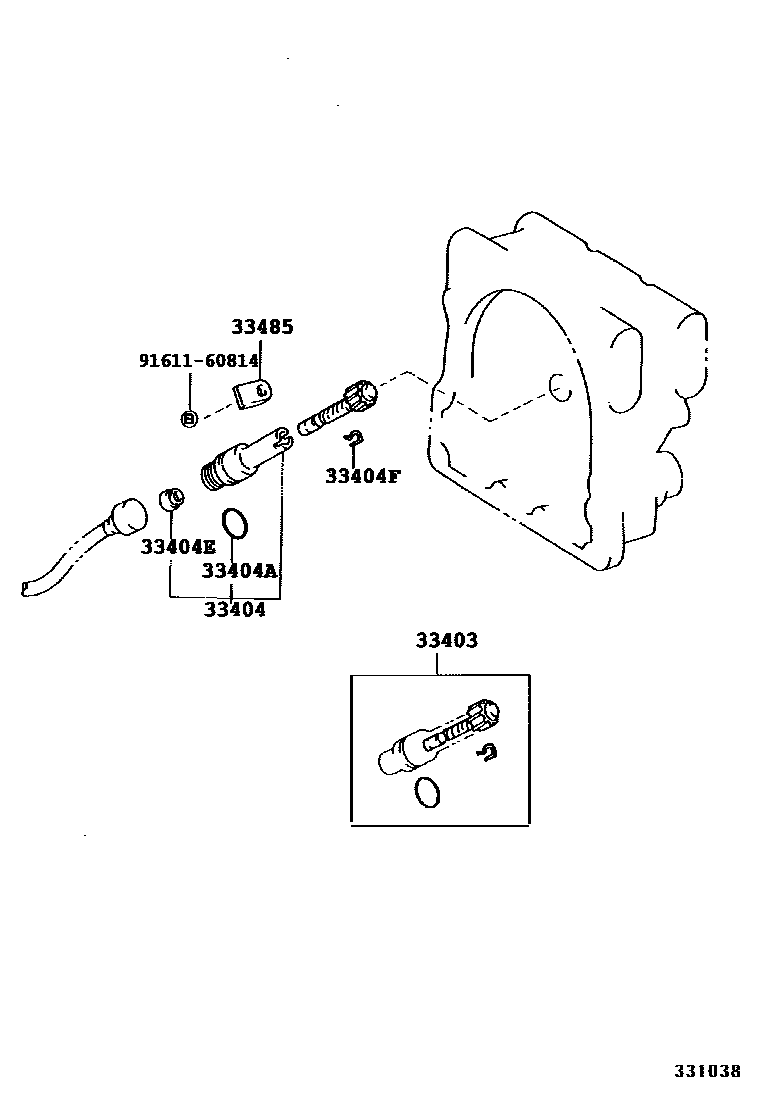

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iXZU300,342..20T200010-200212

N=20,MARK 20:6

main33482-39215iXZU302,342..WT200010-200212

N=21,MARK 21:6

main33482-39225iXZU300199907-200206

N=22,MARK 22:6

main33482-39235iXZU320,330..30T199907-200212

N=23,MARK 23:6

main33482-39245iXZU330,340..40T199907-200212

N=24,MARK 24:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iXZU30#,320,330,34#199907-200212

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iXZU30#,320,330,34#199907-200212

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iXZU30#,320,330,34#199907-200212

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXZU30#,320,330,34#199907-200212

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iXZU30#,320,330,34#199907-200212

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
