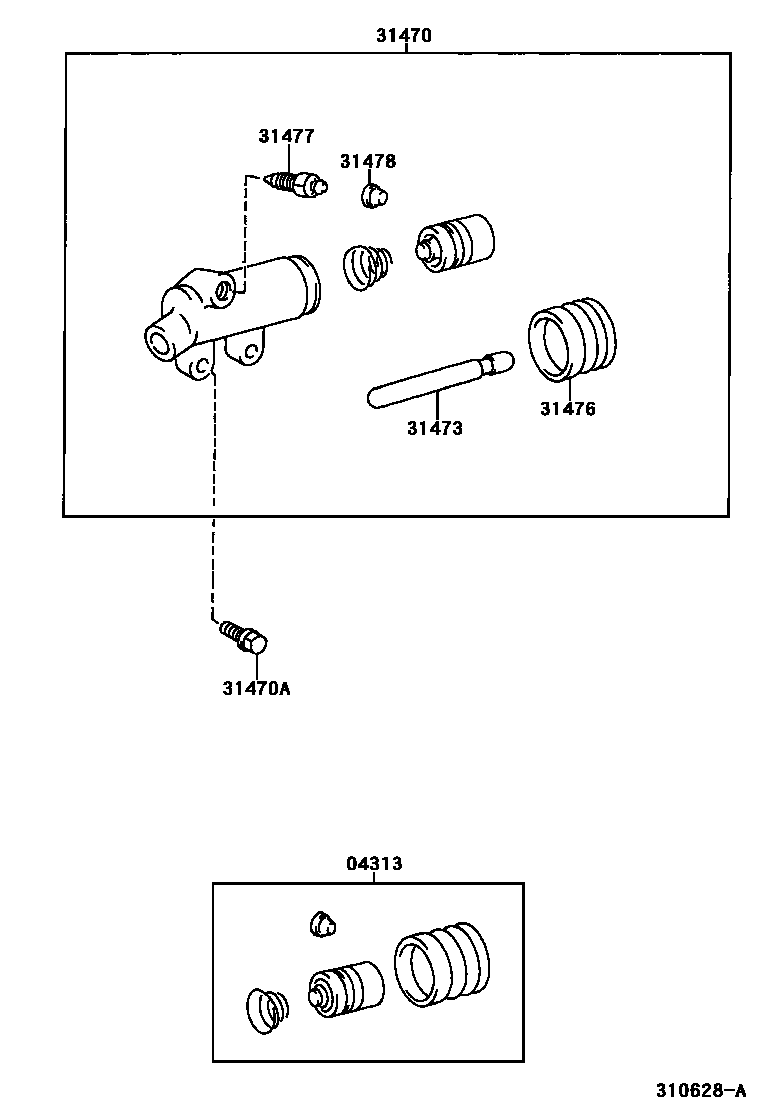

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iXZU30#,320,330,34#199907-200212

main04313-37040iXZU342200205-200206

W(CLUTCH ADJUSTMENT)

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37040iXZU302,307,342200010-200206

GREEN PAINTED

main31470-37050iXZU300,320,330,340199907-200212

main31470-37060iXZU342200010-200206

BLACK PAINTED

sub31470-37061

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXZU302,307,342200010-200206

*8-1.25PX25-20.1

main91611-60825iXZU302,307,342200010-200206

*8-1.25PX25-25,AUSTRALIA SPEC

sub91611-B0825

main91611-B0825iXZU300,320,330,34#199907-200212

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iXZU302,307,342200010-200206

TYPE A:REFER TO ILLUSTRATION

main31473-37030iXZU300,320,330,340199907-200212

main31473-37040iXZU342200010-200206

TYPE B:REFER TO ILLUSTRATION

sub31473-37060

sub31475-37030

sub31476-60060

sub94120-41000

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU30#,320,330,34#199907-200212

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU30#,320,330,34#199907-200212

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU30#,320,330,34#199907-200212

7 parts on this diagram · 2 diagrams in section
