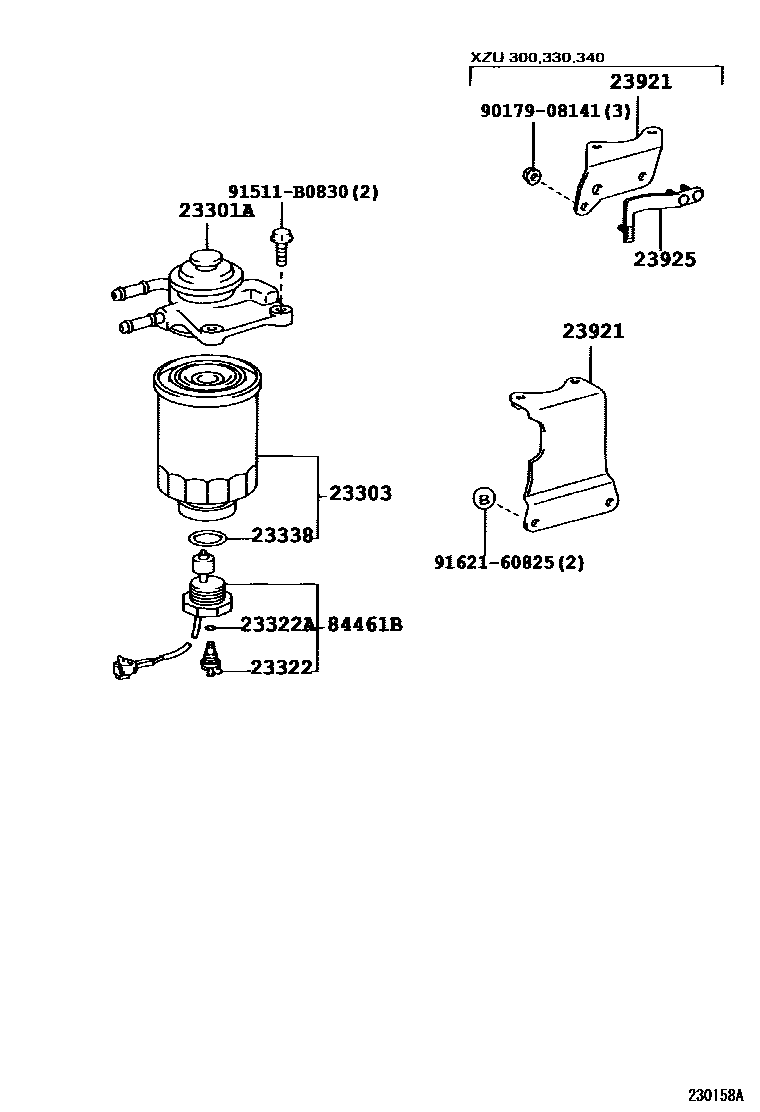

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23380-78041iS05C..XZU302,307,342200010-200206

W(FUEL HEATER)

sub23380-78042

main23380-78050iS05C,15BFTE..XZU30#,320,330,34#199907-200212

sub23380-78051

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64480iS05C,15BFTE..XZU30#,320,330,34#199907-200212

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470iS05C,15BFTE..XZU30#,320,330,34#199907-200212

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iS05C,15BFTE..XZU30#,320,330,34#199907-200212

23338GASKET(FOR WARNING SWITCH)

main23344-64010iS05C,15BFTE..XZU30#,320,330,34#199907-200212

23921SUPPORT, FUEL FILTER

main23921-78010iS05C..XZU342200010-200206

TYPE A:REFER TO ILLUSTRATION

main23921-78070i15BFTE..XZU300,330,340199907-200212

main23921-78100iS05C..XZU302,307200010-200206

TYPE B:REFER TO ILLUSTRATION

main23921-78110i15BFTE..XZU320199907-200212

23925STAY, FUEL FILTER SUPPORT

main23925-78010iS05C..XZU342200010-200206

main23925-78030i15BFTE..XZU300,330,340199907-200206

sub23925-78031

main23925-78031i15BFTE..XZU300,330,340200206-200212

84461BSWITCH, LEVEL WARNING

main84461-28040iXZU30#,320,330,34#199907-200212

sub84461-28041

9017908141

main90179-08141

91511B0830

main91511-B0830

9162160825

main91621-60825

11 parts on this diagram · 2 diagrams in section
