INJECTION NOZZLE

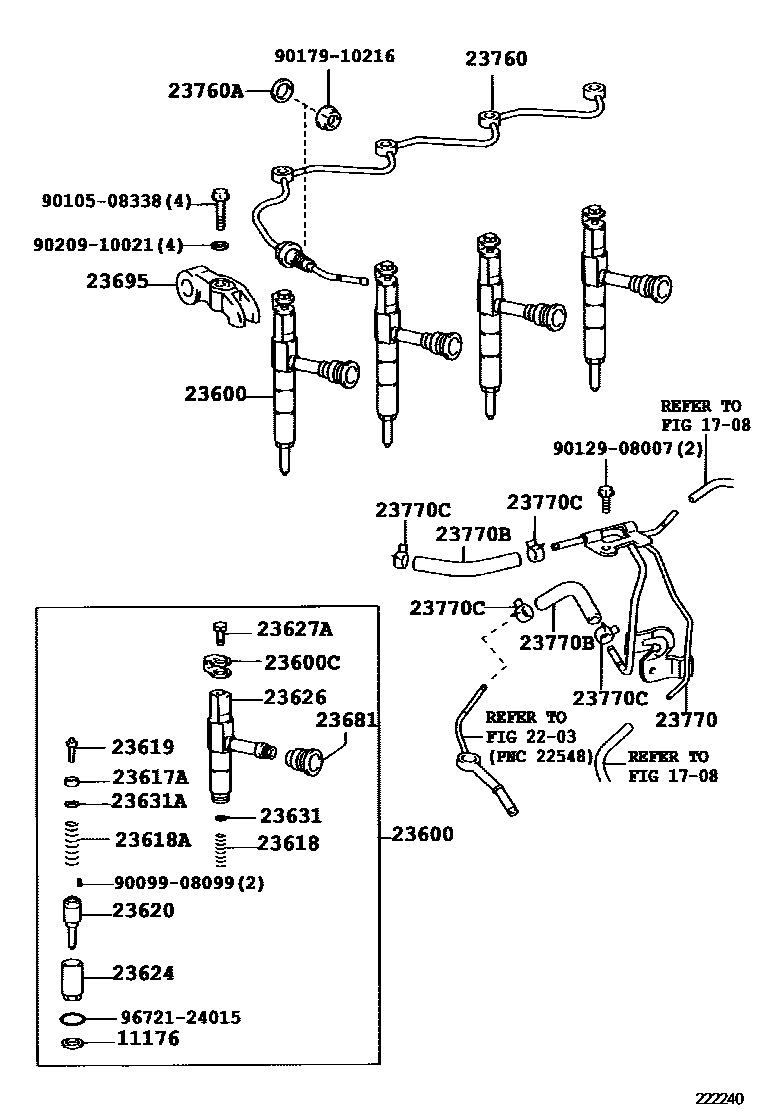

Parts diagram
11176SEAT, INJECTION NOZZLE
main11176-17020i199907-200006
sub11176-27010
main11176-27010i200006-200212
sub11176-27011
1708
2203
23600HOLDER & NOZZLE SET, NOZZLE
main23600-59305i199907-200212
sub23600-59306
main23600-78040i200010-200206
subS2361-02143
23600CGASKET(FOR HOLDER & NOZZLE SET)
main90904-30006i199907-200212
23617ASEAT, PRESSURE SPRING, NO.1
main23617-17070i199907-200212
23618SPRING, NOZZLE HOLDER PRESSURE
main23618-17060i199907-200212
main23618-89101i200010-200206
subS2361-51270
23618ASPRING, NOZZLE HOLDER PRESSURE, NO.1
main23618-17080i199907-200212
main23618-89102i200010-200206
subS2361-51350
23619PIN, NOZZLE HOLDER PRESSURE
main23619-17070i199907-200212
main23619-89101i200010-200206
subS2361-61310
23620NOZZLE ASSY
main23602-58100i199907-200212
main23620-89105i200010-200206
subS2365-01982
23624NUT, NOZZLE RETAINING
main23624-58100i199907-200212
main23624-89101i200010-200206
subS2363-31880
23626BODY SUB-ASSY, NOZZLE
main23626-58100i199907-200212
main23626-89102i200010-200206
23627ASCREW, FOLLOW(FOR NOZZLE)
main23656-78030i199907-200212
main23656-89101i200010-200206
sub90034-01017
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
main23631-17010i199907-200212
T=1.28
main23631-17029i199907-200212
T=0.8
main23631-17030i199907-200212
T=0.9
main23631-17031i199907-200212
T=0.975
main23631-17032i199907-200212
T=1.05
main23631-17033i199907-200212
T=1.125
main23631-17034i199907-200212
T=1.2
main23631-17035i199907-200212
T=1.275
main23631-17036i199907-200212
T=1.35
main23631-17037i199907-200212
T=1.425
main23631-17038i199907-200212
T=1.5
main23631-17039i199907-200212
T=1.575(DA=6.2)
main23631-17040i199907-200212
T=0.85
main23631-17041i199907-200212
T=0.875
main23631-17042i199907-200212
T=0.925
main23631-17043i199907-200212
T=0.95
main23631-17044i199907-200212
T=1.0
main23631-17045i199907-200212
T=1.025
main23631-17046i199907-200212
T=1.075
main23631-17047i199907-200212
T=1.1
main23631-17048i199907-200212
T=1.15
main23631-17049i199907-200212
T=1.175
main23631-17050i199907-200212
T=1.225
main23631-17051i199907-200212
T=1.25
main23631-17052i199907-200212
T=1.3
main23631-17053i199907-200212
T=1.325
main23631-17054i199907-200212
T=1.375
main23631-17055i199907-200212
T=1.4
main23631-17056i199907-200212
T=1.45
main23631-17057i199907-200212
T=1.475
main23631-17058i199907-200212
T=1.525
main23631-17059i199907-200212
T=1.55
main23631-17060i199907-200212
T=1.65
main23631-17061i199907-200212
T=1.725(DA=6.2)
main23631-17062i199907-200212
T=1.8
main23631-17063i199907-200212
T=1.875
main23631-17064i199907-200212
T=1.95
main23631-17065i199907-200212
T=2.0
main23631-17066i199907-200212
T=2.1
main23631-17067i199907-200212
T=2.175
main23631-17068i199907-200212
T=1.6
main23631-17069i199907-200212
T=1.625
main23631-17079i199907-200212
T=0.825
main23632-17020i199907-200212
T=1.675
main23632-17021i199907-200212
T=1.7
main23632-17022i199907-200212
T=1.75
main23632-17023i199907-200212
T=1.775
main23632-17024i199907-200212
T=1.825
main23632-17025i199907-200212
T=1.85
main23632-17026i199907-200212
T=1.9
main23632-17027i199907-200212
T=1.925
main23632-17028i199907-200212
T=1.975
main23632-17029i199907-200212
T=2.05
main23632-17030i199907-200212
T=2.075
main23632-17031i199907-200212
T=2.125
main23632-17032i199907-200212
T=2.15
main23632-17033i199907-200212
T=2.2
main23632-17037i199907-200212
T=2.025
23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)
main23631-17020i199907-200212
T=1.85
main23631-17021i199907-200212
T=1.95
main23631-17022i199907-200212
T=2.0
main23631-17023i199907-200212
T=2.1
main23631-17024i199907-200212
T=2.15
main23631-17025i199907-200212
T=1.525
main23631-17026i199907-200212
T=1.625
main23631-17027i199907-200212
T=1.675
main23631-17028i199907-200212
T=1.775
main23631-17070i199907-200212
T=1.9
main23631-17071i199907-200212
T=2.05
main23631-17072i199907-200212
T=1.575(OD=7.35)
main23631-17073i199907-200212
T=1.725(OD=7.35)
main23631-58010i199907-200212
T=1.000
main23631-58011i199907-200212
T=1.050
main23631-58012i199907-200212
T=1.100
main23631-58013i199907-200212
T=1.150
main23631-58014i199907-200212
T=1.200
main23631-58015i199907-200212
T=1.250
main23631-58016i199907-200212
T=1.300
main23631-58017i199907-200212
T=1.350
main23631-58018i199907-200212
T=1.400
main23631-58019i199907-200212
T=1.450
main23631-89102i200010-200206
T=1.4
subS2288-57040
main23631-89103i200010-200206
T=1.425
subS2288-57050
main23631-89104i200010-200206
T=1.45
subS2288-57060
main23631-89105i200010-200206
T=1.475
subS2288-57070
main23631-89106i200010-200206
T=1.5
subS2288-57080
main23631-89107i200010-200206
T=1.525
subS2288-57090
main23631-89108i200010-200206
T=1.55
subS2288-57100
main23631-89109i200010-200206
T=1.575
subS2288-57110
main23631-89110i200010-200206
T=1.6
subS2288-57120
main23631-89111i200010-200206
T=1.625
subS2288-57130
main23631-89112i200010-200206
T=1.65
subS2288-57140
main23631-89113i200010-200206
T=1.675
subS2288-57150
main23631-89114i200010-200206
T=1.7
subS2288-57160
main23631-89115i200010-200206
T=1.225
subS2288-57760
main23631-89116i200010-200206
T=1.25
subS2288-57770
main23631-89117i200010-200206
T=1.275
subS2288-57780
main23631-89118i200010-200206
T=1.3
subS2288-57790
main23631-89119i200010-200206
T=1.325
subS2288-57800
main23631-89120i200010-200206
T=1.35
subS2288-57810
main23631-89121i200010-200206
T=1.375
subS2288-57820
main23631-89141i200010-200206
T=1.725
subS2288-57180
main23631-89142i200010-200206
T=1.75
subS2288-57190
main23631-89143i200010-200206
T=1.775
subS2288-57200
main23631-89144i200010-200206
T=1.8
subS2288-57210
main23631-89145i200010-200206
T=1.825
subS2288-57220
main23631-89146i200010-200206
T=1.85
subS2288-57230
main23631-89147i200010-200206
T=1.875
subS2288-57240
main23631-89148i200010-200206
T=1.9
subS2288-57250
main23631-89149i200010-200206
T=1.925
subS2288-57260
main23631-89150i200010-200206
T=1.95
subS2288-57270
main23631-89151i200010-200206
T=1.975
subS2288-57280
main23631-89152i200010-200206
T=2.0
subS2288-57290
main23631-89153i200010-200206
T=2.025
subS2288-57300
main23631-89154i200010-200206
T=2.05
subS2288-57310
main23631-89155i200010-200206
T=2.075
subS2288-57320
main23631-89156i200010-200206
T=2.1
subS2288-57330
main23631-89157i200010-200206
T=1.025
subS2288-57680
main23631-89158i200010-200206
T=1.05
subS2288-57690
main23631-89159i200010-200206
T=1.075
subS2288-57700
main23631-89160i200010-200206
T=1.1
subS2288-57710
main23631-89161i200010-200206
T=1.125
subS2288-57720
main23631-89162i200010-200206
T=1.15
subS2288-57730
main23631-89163i200010-200206
T=1.175
subS2288-57740
main23631-89164i200010-200206
T=1.2
subS2288-57750
main23631-89182i200010-200206
T=1.0
subS2288-57670
main23632-58010i199907-200212
T=1.500
main23632-58011i199907-200212
T=1.550
main23632-58012i199907-200212
T=1.600
main23632-58013i199907-200212
T=1.650
main23632-58014i199907-200212
T=1.700
main23632-58015i199907-200212
T=1.750
main23632-58016i199907-200212
T=1.800
main23632-58017i199907-200212
T=1.275
main23632-58018i199907-200212
T=1.325
main23632-58019i199907-200212
T=1.375
main23633-58010i199907-200212
T=1.425
main23633-58011i199907-200212
T=1.475
main23633-58012i199907-200212
T=0.950
main23633-58013i199907-200212
T=0.700
main23633-58014i199907-200212
T=0.750
main23633-58015i199907-200212
T=0.800
main23633-58016i199907-200212
T=0.850
main23633-58017i199907-200212
T=0.900
main23633-58018i199907-200212
T=0.975
main23633-58019i199907-200212
T=1.025
main23634-58010i199907-200212
T=1.075
main23634-58011i199907-200212
T=1.125
main23634-58012i199907-200212
T=1.175
23681SEAL, NOZZLE HOLDER
main23681-17010i199907-200212
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-58010i199907-200212
main23695-89102i200010-200206
subS1119-51050
23760PIPE ASSY, NOZZLE LEAKAGE
main23761-58011i199907-200212
23760AGASKET
main90430-13002i199907-200212
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23762-58030i199907-200212
23770BHOSE, FUEL
main23271-58090i199907-200212
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
main96132-41000i199907-200212
9009908099
main90099-08099
9010508338
main90105-08338
9012908007
main90129-08007
9017910216
main90179-10216
9020910021
main90209-10021
9672124015
main96721-24015
