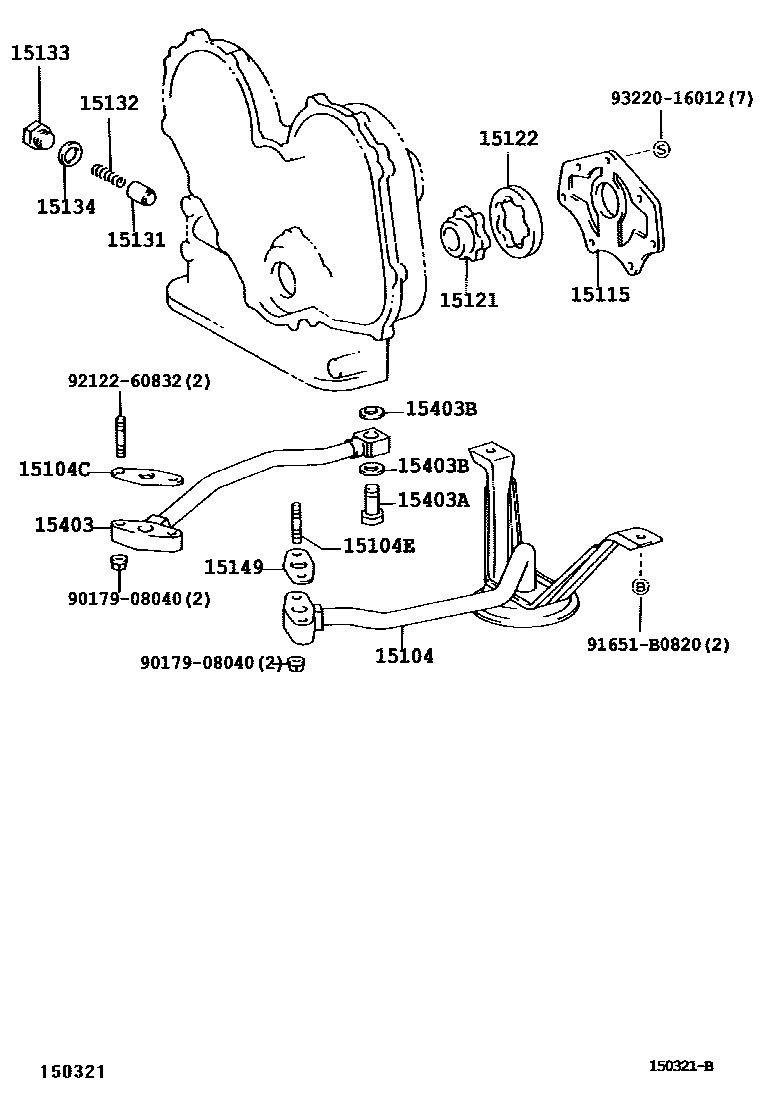

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-56062i15BFTE..XZU300,320,330,340199907-200212

main15107-78040iS05C..XZU302,307,342200010-200206

subS1510-41840

15104CGASKET(FOR OIL STRAINER)

main15149-56020i15BFTE..XZU300,320,330,340199907-199908

sub15149-58010

main15149-58010i15BFTE..XZU300,320,330,340199908-200212

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-60832i15BFTE..XZU300,320,330,340199907-200212

15115COVER, OIL PUMP

main15115-56090i15BFTE..XZU300,320,330,340199907-200212

15121GEAR, OIL PUMP DRIVE

main15121-58040i15BFTE..XZU300,320,330,340199907-200212

15122GEAR, OIL PUMP DRIVEN

main15122-58040i15BFTE..XZU300,320,330,340199907-200212

main15122-89103iS05C..XZU302,307,342200010-200110

main15122-89105iS05C..XZU302,307,342200110-200206

subS1510-71550

15131VALVE, OIL PUMP RELIEF

main15131-24010i15BFTE..XZU300,320,330,340199907-200212

main15131-89102iS05C..XZU302,307,342200010-200206

sub15131-78010

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i15BFTE..XZU300,320,330,340199907-200212

main15132-78010iS05C..XZU302,307,342200010-200206

subS1513-21070

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i15BFTE..XZU300,320,330,340199907-200212

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i15BFTE..XZU300,320,330,340199907-200212

15149GASKET, OIL STRAINER FLANGE

main15149-56020i15BFTE..XZU300,320,330,340199907-199908

sub15149-58010

main15149-58010i15BFTE..XZU300,320,330,340199908-200212

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i15BFTE..XZU300,320,330,340199907-200212

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i15BFTE..XZU300,320,330,340199907-200212

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018i15BFTE..XZU300,320,330,340199907-200212

9017908040

main90179-08040

91651B0820

main91651-B0820

9212260832

main92122-60832

9322016012

main93220-16012

18 parts on this diagram · 2 diagrams in section
