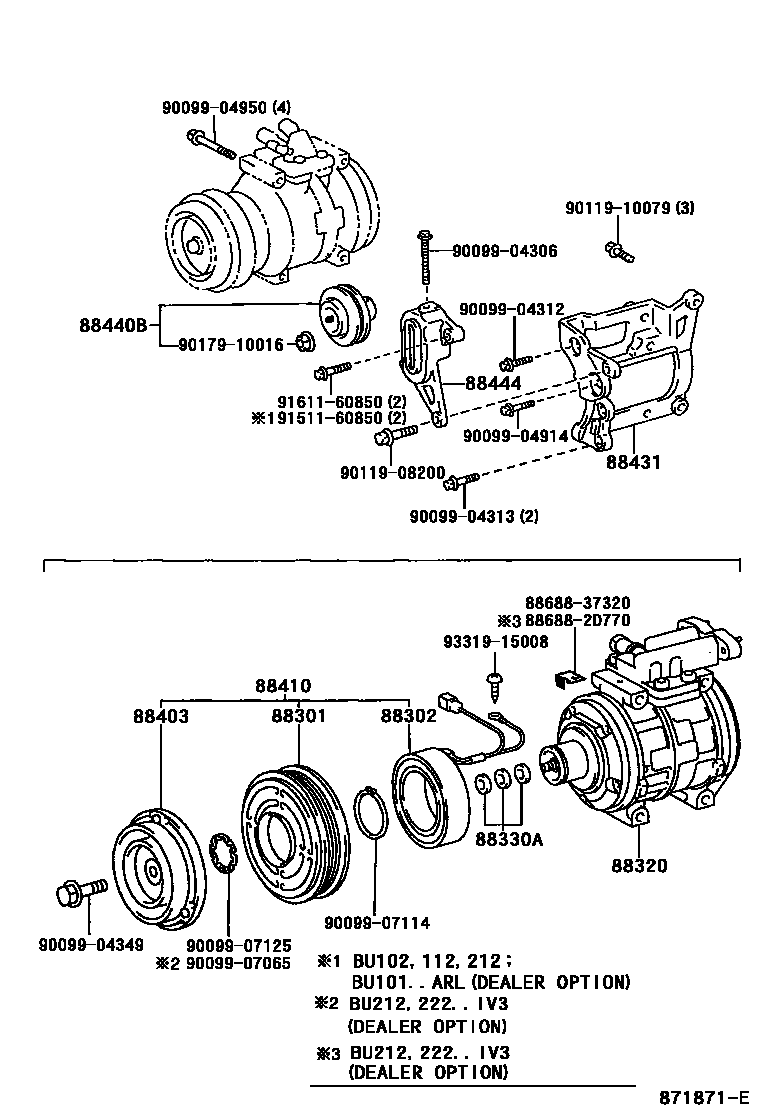

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iBU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505

main88412-30430iBU212..LHD199505-200110

sub88412-2A060

main88412-37010iBU213,223199908

main88412-95J00iRZU100199703

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iRZU100;BU212..LHD..40T;BU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505-199708

sub88411-2A030

main88411-2A030iRZU100;BU212..ARL;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199905

DEALER OPTION

main88411-2A030iBU212..LHD..40T..TD;BU212,RZU100..RHD..(DSL,EFI)..IV3;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199708-199905

main88411-60090iBU141..LHD199505-200212

CHINA OR ALGERIA SPEC

main88411-60090iBU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN199508-199511

HONG KONG SPEC

main88411-60090iBU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN199505-200212

CHINA SPEC

main88411-60090iBU102,112,222..GEN;BU212..RHD..GEN..IV3;BU212..30T..GEN..IV3199610-200111

main88411-60090iBU100..175T..GEN;BU100,140,211..LHD..T3..WT199708-200212

KENYA SPEC

main88411-60090iBU101..175T..GEN199905-200212

RUSSIA SPEC

main88411-60090iBU101..LHD..WT..IV3..TS200111-200212

ALGERIA SPEC

main88411-60090iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

H0NG KONG SPEC

88320COMPRESSOR ASSY, COOLER

main88320-36380iBU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505

sub88320-35H92

main88320-36390iBU212..(ARL,GEN,TAIW)..IV3;BU211,221,222..(ARL,GEN,TAIW)..(CBU,IV3)199505-200110

sub88320-35H92

main88320-37050iRZU100199703

sub88320-35H92

main88320-37070iBU213,223199908

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRZU100;BU212..ARL,TAIW;BU212..LHD..40T..TD;BU10#,11#,14#,211,213,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iBU213,223199908

main88403-30290iBU212..ARL;BU212..LHD;BU101,111,14#,211,221,222,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI)..(ARL,GEN)..(CBU,IV3)199505-200110

88410CLUTCH ASSY, MAGNET

main88410-22480iBU212..LHD..40T..TD199505-200212

main88410-34020iRZU100199703-200212

main88410-35250iBU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-199905

main88410-35250iBU212..ARL;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199905

DEALER OPTION

main88410-37020iBU211..RHD..40T..GEN..IV3199708-200212

KENYA SPEC

main88410-37020iBU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN199505-200212

CHINA SPEC OR SINGAPORE SPEC

main88410-37020iBU212..40T..DSL..GEN199806-199908

DEALER OPTION

main88410-37020iBU212..30T..DSL..GEN..IV3;BU101,102..(15T,175T)..GEN199712-200111

main88410-37020iBU101,221..LHD..(175T,40T)200111-200212

ALGERIA SPEC

main88410-37050iBU222..GEN;BU212..30T..GEN..IV3;BU212..RHD..GEN..IV3199610-200110

main88410-37080iBU213,223199908

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-34020iRZU100199703

main88431-36402iBU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505

main88431-37020iBU212..LHD199505-200110

main88431-37080iBU213,223199908

88440BPULLEY ASSY, IDLE

main88440-12160iBU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199505-200110

main88440-20160iRZU100199703

main88440-35010iBU213,223199908

NO.1

main88440-37030iBU213,223199908

NO.2

88444BRACKET, IDLE PULLEY

main88444-36160iBU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505

main88444-37020iBU212..LHD199505-200110

main88444-37120iBU213,223199908

886882D770BRACKET, COOLER DIAPHRAGM

main88688-2D770

8868837320BRACKET, COOLER DIAPHRAGM

main88688-37320

9009904306

main90099-04306

9009904312

main90099-04312

9009904313

main90099-04313

9009904349

main90099-04349

9009904914

main90099-04914

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9011908200

main90119-08200

9011910079

main90119-10079

9017910016

main90179-10016

9151160850

main91511-60850

9161160850

main91611-60850

9331915008

main93319-15008

26 parts on this diagram · 4 diagrams in section
