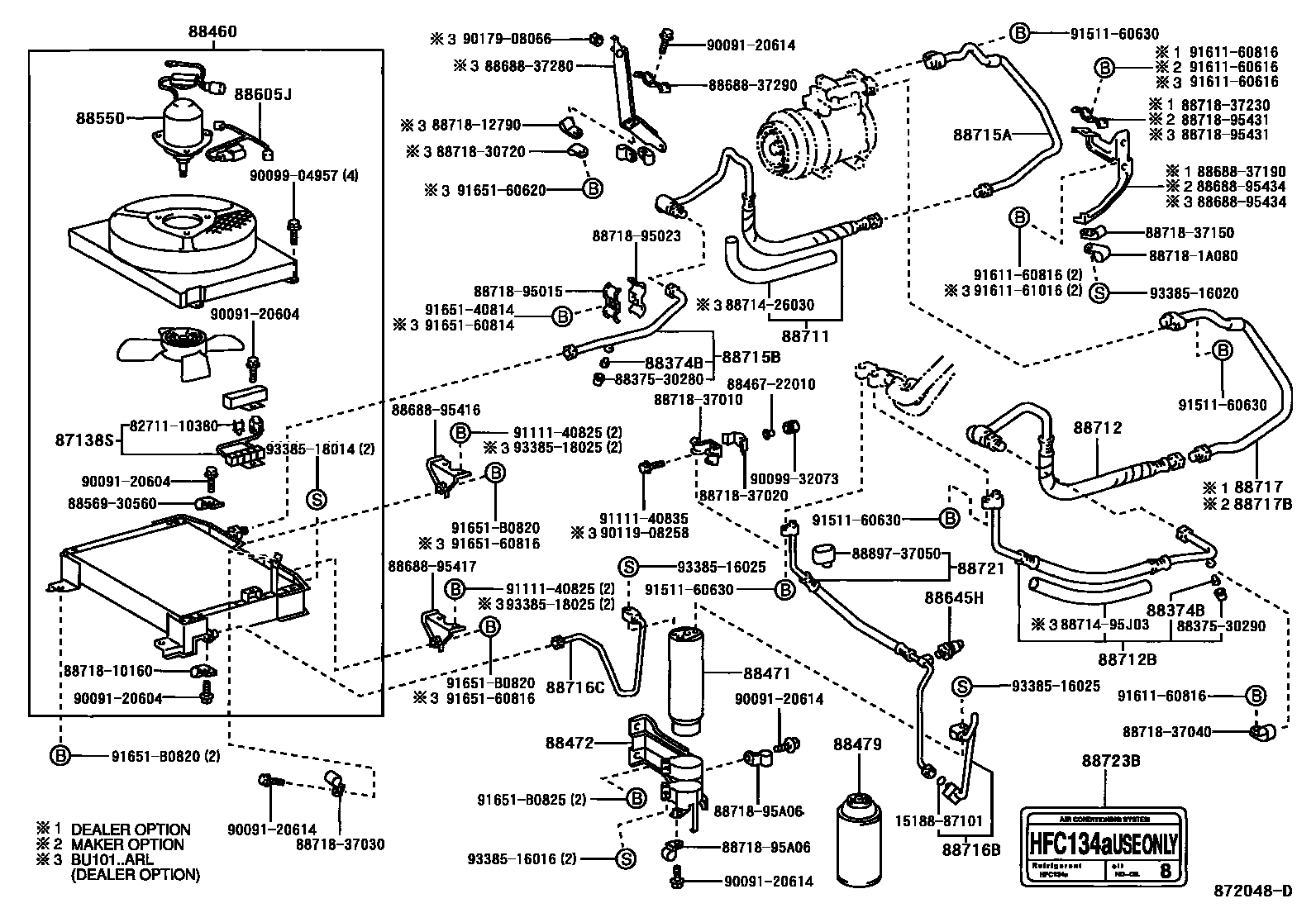

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1O-RING

87138SRESISTOR, BLOWER

main87138-37010iBU100..175T..GEN;BU100,140,141,211..LHD..T3..WT199505-200212

CHINA SPEC

main87138-37010iBU112,222..GEN;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU102,212..DSL..GEN..IV3199610-200110

main87138-37010iBU100..175T..GEN;BU100,140,141,211..LHD..T3..WT199708-200212

KENYA SPEC

main87138-37010iBU101..175T..GEN199905-200212

RUSSIA SPEC

main87138-37010iBU221..LHD200111-200212

ALGERIA SPEC

main87138-37020iRZU100;BU102,212..ARL,TAIW;BU212..LHD..40T..TD;BU100,101,11#,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505

DEALER OPTION

88374BVALVE, SERVICE, NO.1

main88374-30010iBU212,222,RZU100..(ARL,GEN)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,GEN)..(CBU,IV3)199505-199905

main88374-30010iBU212..LHD..40T..TD199505

MAKER OPTION

main88374-30010iBU211..RHD..40T..GEN..IV3199708

KENYA SPEC

main88374-30010iBU213,223199908

DEALER OPTION

88460CONDENSER ASSY, COOLER

main88460-37140iBU111..RHD;BU101..RHD..WT..IV3199505-199703

HONG KONG SPEC

main88460-37150iBU101,111,141,142,RZU100..RHD..(DSL,EFI)..(ARL,GEN)199505-200212

main88460-37160iBU102..TAIW;BU101,111,112,141,RZU100..LHD..(DM1,T3,T4,TW2)199505-200212

main88460-37170iBU141..LHD199505-200212

ALGERIA SPEC OR CHINA SPEC

main88460-37170iBU102,112199703-199908

main88460-37170iBU101..175T..GEN199905-200212

RUSSIA SPEC

main88460-37170iBU101..LHD..WT..IV3..TS200111-200212

ALGERIA SPEC

main88460-37190iBU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3199505-200212

main88460-37200iBU212..TAIW;BU212..LHD..40T..TD;BU211,221,222..LHD..DSL199505

main88460-37210iBU212,222..RHD..GEN..IV3199703-200110

main88460-37210iBU211,221..RHD..40T..GEN..IV3199505-199703

CHINA SPEC

main88460-37210iBU211..RHD..40T..GEN..IV3199708-200212

KENYA SPEC

main88460-37220iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199610-199908

main88460-37220iBU221..LHD200111-200212

ALGERIA SPEC

main88460-37220iBU211..LHD..T3199505-200212

CHINA SPEC

main88460-37230iBU100,110,140..RHD199505-199908

main88460-37240iBU100,140..LHD199505-199905

main88460-37250iBU100..175T..GEN;BU100,140..LHD..WT..GEN199505-199905

CHINA SPEC

main88460-37390iBU213,223199908

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iBU212,222..(ARL,GEN,TAIW)..IV3;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..(EUR,GEN)..(CBU,IV3)199505-200212

MAKER OPTION

sub88471-34010

main88471-20050iBU213,223199908

sub88471-34010

main88471-34010iBU100..ARL;BU100..175T..GEN;BU102,110,112,142,RZU100..DSL,EFI;BU100,111,140,141..LHD..(DM1,T3)..WT199505-199905

main88471-34010iBU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN199505-200212

DEALER OPTION

88472BRACKET, RECEIVER TANK, NO.1

main88472-37050iBU21#,22#..LHD..(GEN,TAIW)199505

main88472-37060iBU212..RHD..(ARL,GEN)..IV3;BU211,221,222..RHD..(ARL,GEN)..(CBU,IV3)199505-200110

main88472-37070iBU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN)199505

main88472-37080iBU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007iBU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)199505-200110

250G

main90986-02008iBU212..(ARL,GEN)..IV3;BU100,101,111,142..(DM1,T1,T2,T3,TW2)..DSL;BU141,211,221,222,RZU100..(DM6,T3,TW1)..(ARL,GEN)..(CBU,IV3)199505-200110

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-37050iBU101..LHD..WT;BU101..RHD..GEN;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3)199505-199703

ALGERIA SPEC OR CHINA SPEC

main87104-37050iBU101..LHD..ST..TS199905-200212

MAKER OPTION

main87104-37060iBU222..LHD..GEN;BU212..30T..TD..IV3199505-199908

CHINA SPEC

main87104-37060iBU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT199703-200111

main87104-37060iBU211..40T..IV3;BU211..LHD..T3..30T;BU211..LHD..40T..CBU;BU101,141,221..LHD..(175T,25T,40T)200111-200212

ALGERIA SPEC

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-37190iBU212..LHD..40T..TD;BU111,211,221..LHD..(DM1,T3,TW1)199505-199905

NO.1

sub88648-37040

main88648-37040iBU222;BU212..30T..GEN;BU100,102,112..ARL,TAIW199505-199905

NO.2

main88648-37040iBU102..15T;BU101..ARL;BU101..LHD..ST..TS;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU212,RZU100..(DSL,EFI)..(ARL,GEN)..IV3;BU100,142,222..(175T,20T,40T)..(ARL,GEN)199610-200110

88645HSWITCH, PRESSURE NO.1

main88645-60030iBU212..ARL;BU212..LHD;BU101,111,14#,211,213,22#,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI,TDEFI)..(ARL,GEN)..(CBU,IV3)199505-200110

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-37270iBU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505

main88711-37300iRZU100199703

main88711-37550iBU213,223199908

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-37390iBU212,222..ARL,TAIW;BU211,221..GEN..(CBU,IV3)199505

main88712-37400iBU212..LHD..40T..TD199505

main88712-37430iBU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505

main88712-37470iRZU100199703

main88712-37560iBU222..GEN;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU212..DSL..GEN..IV3199610-200110

main88712-3V070iBU213,223199908

88712BHOSE, COOLER REFRIGERANT SUCTION

main88712-37310iBU100,101,110,111,14#..RHD..DSL..(ARL,GEN)199505

main88712-37320iRZU100..RHD199703-200009

main88712-37340iBU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

main88712-37360iBU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3199505

main88712-37370iBU211,212,221,222..LHD..(GEN,TAIW)199505

main88712-37640iBU212,222..RHD..GEN..IV3199703-200110

main88712-3V060iBU213,223199908

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-37120iBU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505

main88715-37180iRZU100199703

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-37080iRZU100..RHD;BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)199505

main88715-37240iRZU100..15T199908

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-37140iBU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN)199505

main88716-37180iBU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-37150iBU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN)199505

main88716-37170iBU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

main88716-37190iBU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3199505-200110

main88716-37200iBU21#,22#..LHD..(GEN,TAIW)199505

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-37060iBU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN,TAIW)199505

main88717-37100iRZU100199703

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-37060iBU100,101,111,140,141..(DM1,T1,T3,TW2)..(EUR,GEN)199505

88721PIPE, COOLER REFRIGERANT SUCTION, NO.5

main88721-37180iBU100,101,110,111,14#,RZU100..RHD..(DSL,EFI)..(ARL,GEN)199505

main88721-37190iBU211..RHD..GEN..(CBU,IV3);BU212,221,222..RHD..DSL..(ARL,GEN)..IV3199505-200110

main88721-37200iBU21#,22#..LHD..(GEN,TAIW)199505

main88721-37210iBU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2)199505

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iBU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)199505-200110

1518887101GASKET, OIL PUMP

main15188-87101

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

8837530280CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30280

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8846722010CUSHION, COOLER CONDENSER, NO.1

main88467-22010

8856930560CLAMP (FOR COOLER RELAY)

main88569-30560

8868837190BRACKET, COOLER DIAPHRAGM

main88688-37190

8868837280BRACKET, COOLER DIAPHRAGM

main88688-37280

8868837290BRACKET, COOLER DIAPHRAGM

main88688-37290

8868895416BRACKET, COOLER DIAPHRAGM

main88688-95416

8868895417BRACKET, COOLER DIAPHRAGM

main88688-95417

8868895434BRACKET, COOLER DIAPHRAGM

main88688-95434

8871426030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-26030

8871495J03HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95J03

8871810160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10160

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

887181A080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A080

8871830720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30720

8871837010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37010

8871837020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37020

8871837030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37030

8871837040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37040

8871837150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37150

8871837230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37230

8871895015PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95015

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8871895431PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95431

8871895A06PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A06

8889737050VALVE, COOLER MAGNET

main88897-37050

9009120604

main90091-20604

9009120614

main90091-20614

9009904957

main90099-04957

9009932073

main90099-32073

9011908258

main90119-08258

9017908066

main90179-08066

9111140825

main91111-40825

9111140835

main91111-40835

9151160630

main91511-60630

9161160616

main91611-60616

9161160816

main91611-60816

9161161016

main91611-61016

9165140814

main91651-40814

9165160620

main91651-60620

9165160814

main91651-60814

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9338516016

main93385-16016

9338516020

main93385-16020

9338516025

main93385-16025

9338518014

main93385-18014

9338518025

main93385-18025

72 parts on this diagram · 8 diagrams in section
