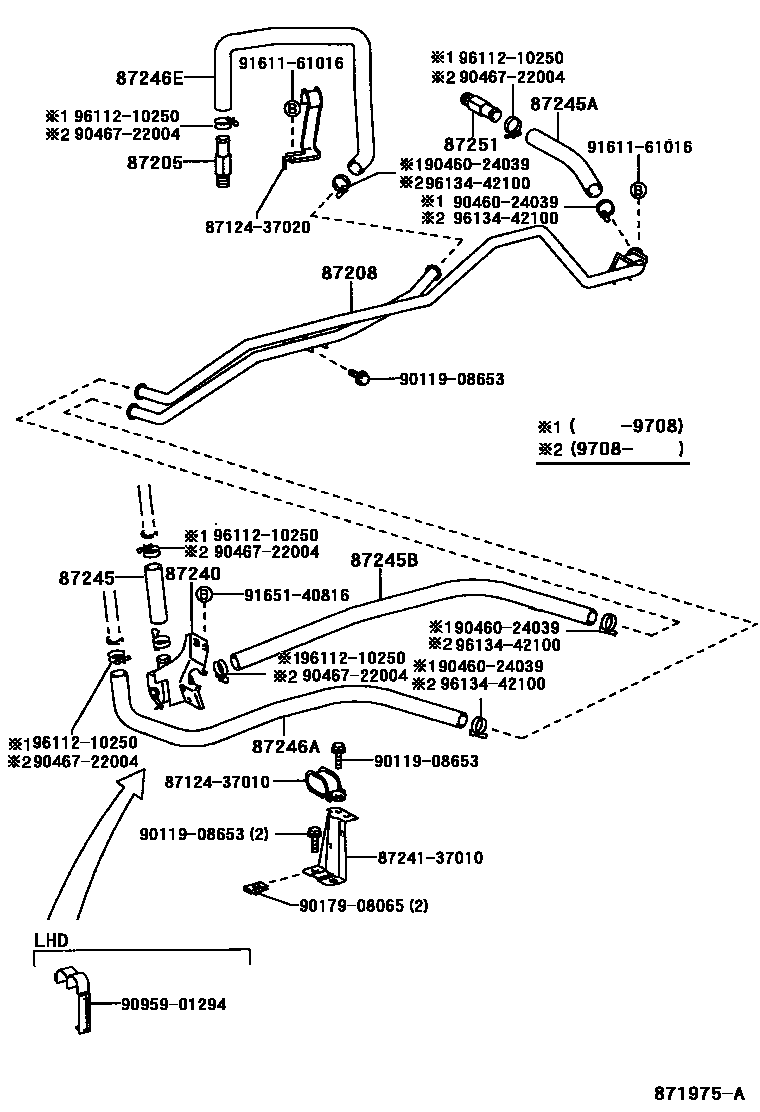

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1REAR

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iBU213,223199908

main87251-36020iBU102,112199703-199908

main87251-95400iBU142..(20T,25T)..(ARL,GEN);BU101,111,141,211,212,221,222..ARL,GEN,SA199505-200212

87208PIPE SUB-ASSY, HEATER WATER

main87208-28500iYU210199505-200212

main87208-37040iRZU100..RHD199703-200009

main87208-37100iBU211..TW1;BU212..DSL..(ARL,GEN);BU211,221,YU210..RHD..(CBU,IV3)199505-200212

W(BOOST VENTILATOR)

main87208-37100iBU212..SA;BU211..IV2;BU222..ARL,SA;BU212..TD..CBU199708-200212

main87208-37130iBU211,212,221..LHD..T3199505-200212

main87208-37150iBU100,101,110,111,14#..RHD..DSL199505-200212

main87208-37160iBU101,111,14#..LHD..GEN199505-200212

main87208-37170iBU100,101..175T..GEN199505-200212

W(RR HEATER)

main87208-37320iBU102,112199703-199908

main87208-37350iRZU100..15T199908-200212

main87208-37360iBU213,223199908

87240VALVE ASSY, HEATER WATER

main87240-37010iBU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI199505-200212

87245HOSE, HEATER WATER, INLET

main99556-30100iBU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI199505-200212

87245AHOSE, HEATER WATER, INLET A

main87245-37590iBU102,112199703-199908

main87245-37820iRZU100..15T199908-200212

main99556-30300iBU101,111,141;BU142..(20T,25T)..(ARL,GEN)199505-200212

*H,L=280

main99556-30500iBU212..DSL;BU212..LHD;BU211,221,222;BU212..TD..CBU199505-200212

*H,L=380

main99556-30500iBU213,223199908

*H,L=450

main99556-30500iRZU100..RHD199703-200009

*H,L=340

87245BHOSE, HEATER WATER, INLET B

main87245-37060iRZU100..RHD199703-200009

main87245-37440iBU102,112..DSL;BU100,101..175T..GEN199703-199704

main87245-37800iRZU100..15T199908

main99556-30500iBU101,111,141;BU142..(20T,25T)..(ARL,GEN)199505-200108

*H,L=320

main99556-30500iBU213,223199908

*H,L=350

main99556-30500iBU211..TW1;BU211,212,221,222,YU210..RHD199505-200110

*H,L=360

main99556-31000iBU100..175T..GEN199505-199704

*H,L=720,W(RR HEATER)

87246AHOSE, HEATER WATER, OUTLET A

main87245-37070iRZU100..RHD199703-200009

main87245-37150iBU100,101,110,111,14#..RHD..DSL199505-200212

main87245-37310iBU100..175T..GEN199505-199704

W(RR HEATER)

sub87245-37460

main87245-37390iBU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)199505-200212

main87245-37460iBU102,112..DSL;BU100,101..175T..GEN199703-200212

W(RR HEATER)

main87245-37810iRZU100..15T199908-200212

main99556-30300iBU213,223199908

*H,L=240

main99556-30500iBU211,212,221,222,YU210..ARL,GEN,SA199505-200212

*H,L=450

main99556-30500iBU211,212,221,222..LHD..T3199505-200212

*H,L=350

87246EHOSE, HEATER WATER, OUTLET E

main87245-37110iRZU100199703-200212

main87245-37580iBU102..15T199712-199908

main87245-37830iBU213,223199908

main99556-30300iBU101,111,141;BU142..(20T,25T)..(ARL,GEN)199505-200212

*H,L=250

main99556-30300iBU100..175T..GEN199505-199905

*H,L=260,W(RR HEATER)

main99556-30300iBU101..175T..GEN199905-200212

*H,L=260

main99556-30500iBU211,212,221,222..ARL,GEN,SA199505-200212

*H,L=320

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-22010iBU102,112199708-199908

main87251-30200iBU142..20T,25T;BU100,101,110,111,140,141,21#,22#199505-200212

8712437010CLAMP, HEATER

main87124-37010

8712437020CLAMP, HEATER

main87124-37020

8724137010CONTROLLER, WATER VALVE

main87241-37010

9011908653

main90119-08653

9017908065

main90179-08065

9046024039

main90460-24039

9046722004

main90467-22004

9095901294

main90959-01294

9161161016

main91611-61016

9165140816

main91651-40816

9611210250

main96112-10250

9613442100

main96134-42100

21 parts on this diagram · 5 diagrams in section
