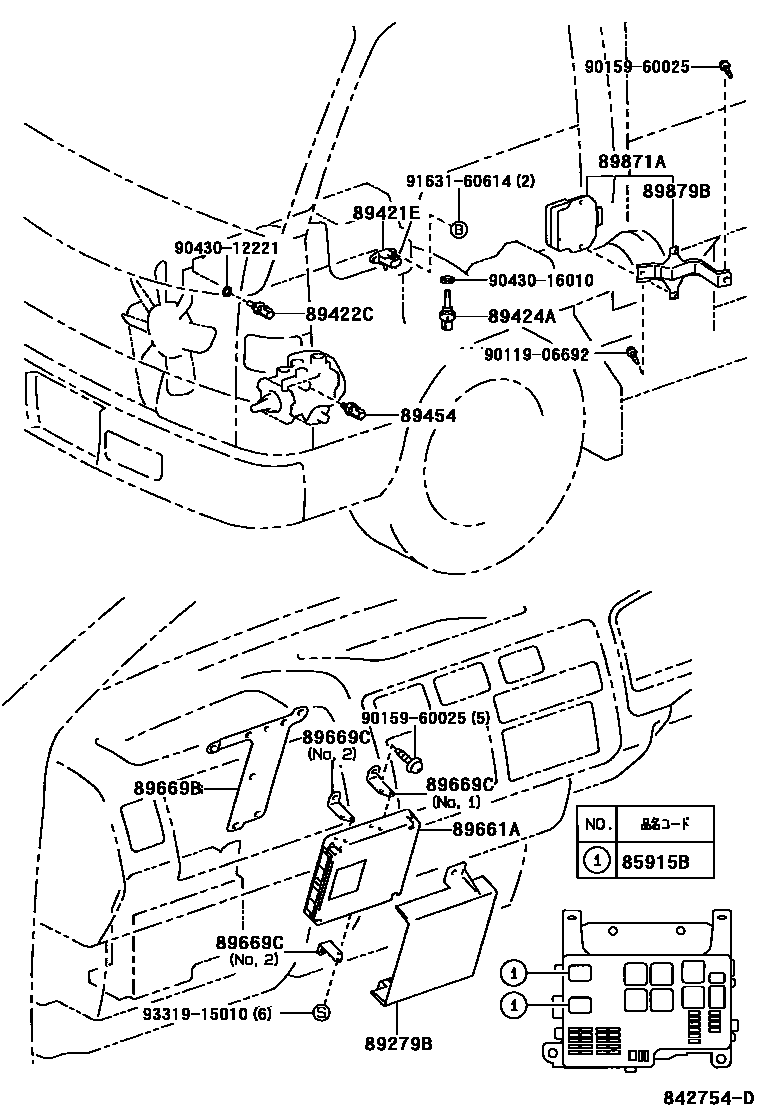

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iBU213,223199908

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-37030iBU213,223199908

89421ESENSOR, VACUUM

main89421-21010iBU213,223199908

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iBU213,223199908

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-28020iBU213,223199908

89454SENSOR, FUEL TEMPERATURE

main89454-60010iBU213,223199908

89661ACOMPUTER, ENGINE CONTROL

main89661-37090iBU213,223199908

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89559-37070iBU213,223199908

89669CBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89559-25020iBU213,223199908

NO.1

main89559-25030iBU213,223199908

NO.2

89871ADRIVER, INJECTOR

main89871-36010iBU213,223199908

89879BBRACKET, INJECTOR DRIVER

main89879-37010iBU213,223199908

9011906692

main90119-06692

9015960025

main90159-60025

9043012221

main90430-12221

9043016010

main90430-16010

9163160614

main91631-60614

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
