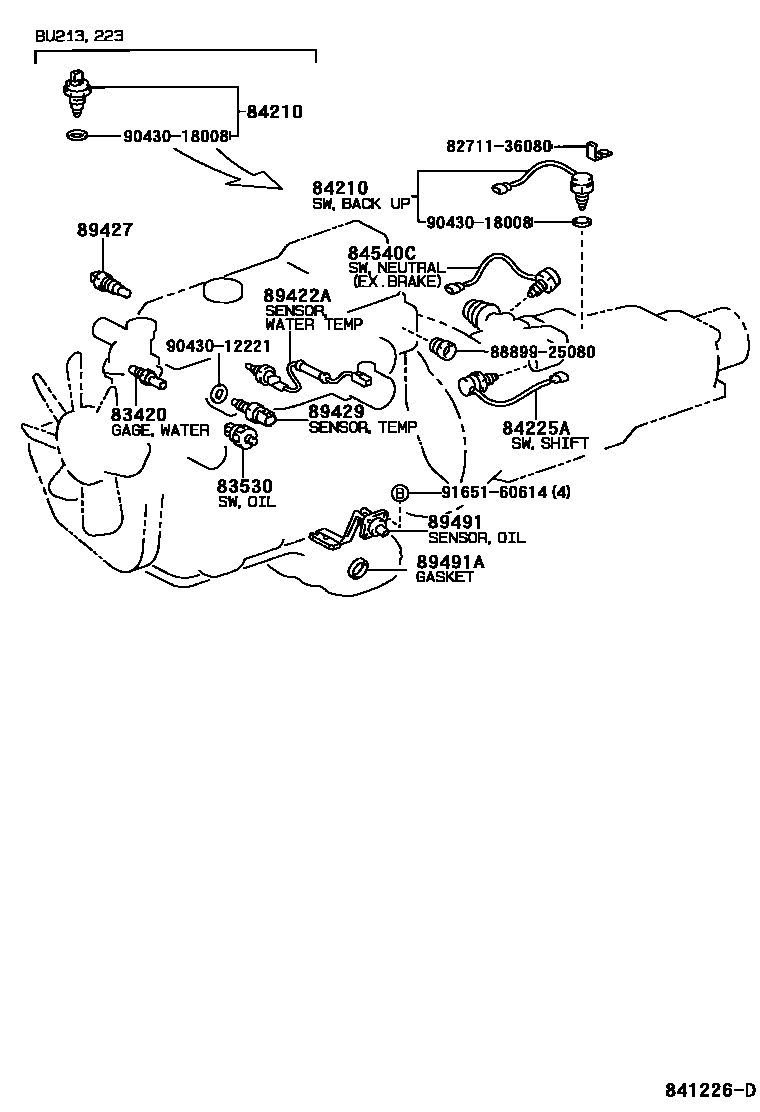

SWITCH & RELAY & COMPUTER

0001 1E/G,T/M,T/F 0002 1E/G,T/M 0003 1E/G,T/M 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1INPANE & COWL RELAY 0007 1INPANE & COWL RELAY 0008 1INPANE SW. 0009 1INPANE SW. 0010 1IG. & COMBINATION SW. 0011 1DOOR,ROOF,FLOOR 0012 1REAR BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU10#,11#,14#,21#,22#,YU210199505-200211

DENSO

main83420-20030iBU10#,11#,14#,21#,22#,YU210199505-199506

YAZAKI

sub83420-16040

main83420-20040iRZU100199703-200211

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iBU10#,11#,14#,21#,22#,YU210199505-199803

DENSO

sub83530-28010

main83530-28010iBU211..LHD..30T..IV3;BU212..RHD..GEN..IV3;BU102,142,213,223..(20T,30T,40T)..GEN199803-200211

DENSO

main83530-28020iRZU100199803-200211

main83530-30090iRZU100199703-199803

sub83530-60020

main83530-30100iBU10#,11#,14#,21#,22#,YU210199505-199803

YAZAKI

sub83530-60010

main83530-60010iBU10#,111,14#,21#,22#,YU210199803-200211

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iBU213,223199908

sub84210-52050

main84210-60030iBU10#,11#,14#,21#,22#,YU210199505-200008

84225ASWITCH, SHIFT POSITION

main84225-35010iBU212..30T..TD;BU212..RHD..GEN..IV3;BU102,112,142,222..EUR,GEN199605-199808

main84225-37020iBU213,223199908

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36090iBU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW199505-200008

89422ASENSOR, WATER TEMPERATURE

main89422-36010iBU211..LHD..30T..IV3;BU212..RHD..GEN..IV3;BU102,142,213,223..(20T,30T,40T)..GEN199505-200211

sub89422-37030

main89422-37010iBU211..LHD..T3..30T199607-199708

CHINA SPEC

89427SWITCH, TEMPERATURE DETECT

main89428-33030iBU142..GEN199808-199901

89429SENSOR, OIL TEMPERATURE

main89422-20010iBU211..LHD..T3;BU212..TD..CBU;BU101..175T..GEN;BU102,112,142,212,222..(EUR,GEN,SA)..IV3199505-199909

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iYU210199505-199708

sub89491-26091

main89491-26091iYU210199708-200211

main89491-37010iRZU100199703-199711

sub89491-37011

main89491-37011iRZU100199711-200211

main89491-37020iBU10#,111,14#,211,212,221,222199505-200211

main89491-37030iBU213,223199908

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iYU210199708-200211

main90430-27001iBU10#,11#,14#,21#,22#199505

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

8889925080COVER, EVAPORATOR

main88899-25080

9043012221

main90430-12221

9043018008

main90430-18008

9165160614

main91651-60614

15 parts on this diagram · 12 diagrams in section
