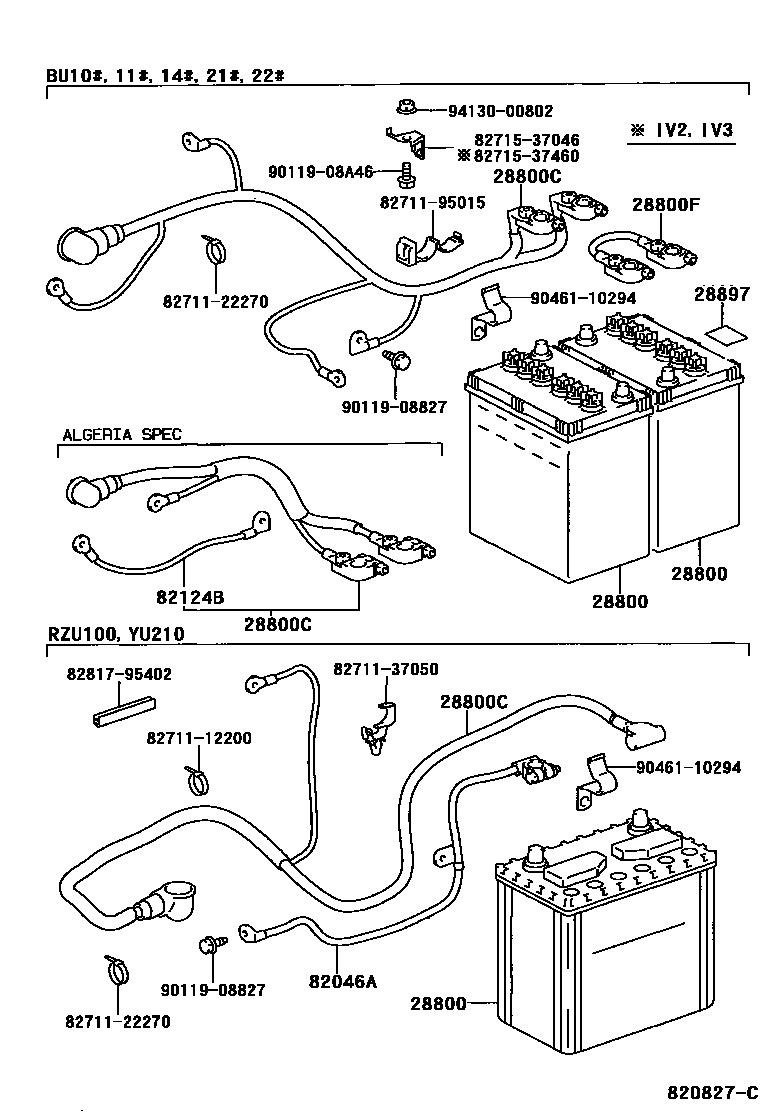

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-14010i15BF..BU102..ST199705-199707

55D23R,TAIWAN SPEC

sub28800-15020

main28800-14010i14B..BU141..LHD;14B..BU211..RHD..40T..GEN..IV3199505-200003

55D23R,55D23R 2-BATTERY

sub28800-15020

main28800-14010i14B..BU111..IV3;14B..BU211..IV2;15B#..BU102,142..15T,25T199505-200003

55D23R

sub28800-15020

main28800-15020i4Y..YU210;3RZFE..RZU100..15T200003-200103

55D23R

sub28800-15022

main28800-15022i14B..BU141,221..LHD;14B..BU211..LHD..40T..CBU;14B..BU101..LHD..WT..IV3..TS;14B,15BFT..BU102,111,142..(20T,30T)..IV3;14B,15BFT..BU211,212..RHD..40T..(IV2,IV3)200103-200211

55D23R

sub28800-15021

main28800-46012i14B..BU101,141..SA;15BFT..BU212..LHD..40T199802-200003

75D31R

sub28800-46050

main28800-46012i14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW2)..(EUR,GEN)199505-200003

75D31R,GS

sub28800-46050

main28800-46020i15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..CBU;15BFT..BU212..LHD..40T;14B,15BF..BU211,221,222..(ARL,GEN,SA)..(CBU,IV3);14B,15BF,3B..BU100,101,14#..(T1,T3,TW2).199505-200211

105E41R

main28800-46050i14B..BU211..LHD..30T..IV3200003-200211

75D31R

sub28800-64062¥75,000

main28800-48011i14B..BU211,221..GEN..(CBU,IV3);14B,3B..BU100,101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA)199505-200103

75D31R,SINKOUBE

main28800-54040i14B,3B..BU10#,11#..DM1,T2199505-200003

95D31R

sub28800-64060

main28800-54040i3B..BU100..175T..GEN;14B,3B..BU100,140,211..LHD..T3..WT199505-200003

95D31R,95D31R 2-BATTERY

sub28800-64060

main28800-54290i14B..BU102,212,222..T3199505-199703

130E41R

main28800-64062i14B..BU211..LHD..T3;14B..BU101..175T..GEN;15BFT..BU212..RHD..IV3;15BFT,15BFTE..BU213,222,223..GEN¥75,000200003-200211

95D31R

sub28800-64061

main28800-67030i3RZFE..RZU100..RHD199703-200009

80D26R

sub28800-54230

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-37022i14B..BU111..RHD¥10,500199505-199703

HONG KONG SPEC

sub82021-37023¥14,600

main82021-37022i15BF..BU112¥10,500199703-199811

sub82021-37023¥14,600

main82021-37022i14B..BU111..LHD..CBU¥10,500199505-199708

CHINA SPEC

sub82021-37023¥14,600

main82021-37023i15BF..BU112¥14,600199811-199908

main82021-37131i14B..BU101..RHD..WT..IV3¥31,900199505-199703

HONG KONG SPEC

sub82021-37132¥31,900

main82021-37131i3B..BU100..175T..GEN;3B..BU100,140..LHD..WT¥31,900199505-199811

CHINA SPEC

sub82021-37132¥31,900

main82021-37131i15BF..BU102..T3,T4¥31,900199703-199811

sub82021-37132¥31,900

main82021-37132i15BFT..BU102,142..RHD¥31,900200007

main82021-37132i3B..BU100..WT..GEN;3B..BU100..175T..GEN;15BF,3B..BU102,140..LHD..(T3,T4)¥31,900199811-199908

CHINA SPEC

main82021-37132i14B..BU101..175T..GEN¥31,900199905

RUSSIA SPEC & COLD SPEC

main82021-37141i15BF..BU102..WT..20T..TB¥26,500199703-199811

sub82021-37142¥26,500

main82021-37142i15BF..BU102..WT..20T..TB¥26,500199811-199908

main82021-37151i15BFT..BU142..GEN;14B,3B..BU100,101,140,141..EUR,GEN,SA¥10,500199505-199811

sub82021-37152¥26,500

main82021-37152i15BFT..BU142..25T..GEN;14B,3B..BU100,101,140,141..GEN,SA¥26,500199811

main82021-37161i14B,3B..BU100,101,140,141..GEN¥10,500199505-199811

W(105E41R BATTERY)

sub82021-37162¥26,500

main82021-37162i14B..BU101..GEN;14B,15BF,3B..BU100,14#..(T3,TW2)..(ARL,GEN)¥26,500199811

W(105E41R BATTERY)

main82021-37162i14B..BU101..ARL..TS¥26,500199908

main82021-37171i14B,3B..BU11#..DM1¥10,500199505-199610

main82021-37172i14B,3B..BU11#..DM1¥28,000199610-199811

sub82021-37173¥42,400

main82021-37173i14B,3B..BU110,111..CBU¥42,400199811

main82021-37181i14B..BU111..IV3¥10,500199505-199811

sub82021-37182¥14,600

main82021-37182i14B..BU111..IV3¥14,600199811

main82021-37191i14B..BU141..LHD¥10,500199505-199811

ALGERIA SPEC

sub82021-37192¥14,600

main82021-37192i14B..BU141..LHD¥14,600199811-200111

ALGERIA SPEC

main82021-37231i14B..BU102..WT..20T..TB¥10,500199505-199610

main82021-37232i14B,3B..BU100,102..WT..20T..TB¥14,900199610-199811

sub82021-37233¥21,500

main82021-37233i14B,3B..BU100,101..ARL..TB¥21,500199811

main82021-37301i3RZFE..RZU100¥10,500199703-199708

main82021-37302i3RZFE..RZU100..RHD¥14,900199708-200009

main82021-37351i15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN..(CBU,IV3)¥10,500199505-199811

sub82021-37352¥10,500

main82021-37352i15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN..(CBU,IV3)¥10,500199811

main82021-37361i14B..BU211,221..GEN¥10,500199505-199811

W(105E41R BATTERY)

sub82021-37362¥10,500

main82021-37361i15BFT..BU212..CBU¥10,500199808-199811

sub82021-37362¥10,500

main82021-37362i15BFT..BU222..SA;15BFT..BU212..CBU;14B..BU211..30T..SA;15BFT..BU212..LHD..40T;15BF..BU212..RHD..T3..(ARL,GEN);14B,15BF..BU211,221,222..T3..(ARL,GEN)..(CBU,IV3)¥10,500199811

W(105E41R BATTERY)

main82021-37362i15BF..BU212,222..SA¥10,500200005

main82021-37371i15BFT..BU222;14B..BU211..IV2;15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3¥31,900199610-199811

sub82021-37372¥31,900

main82021-37371i14B..BU211,221..RHD..40T..GEN..IV3¥31,900199505-199703

HONG KONG SPEC

sub82021-37372¥31,900

main82021-37371i14B..BU211..LHD..T3¥31,900199505-199811

CHINA SPEC

sub82021-37372¥31,900

main82021-37372i15BF..BU212..GEN..IV3;15BFT..BU212..RHD..IV3;14B..BU211..LHD..40T..CBU;14B,15BFT..BU211,212..LHD..T3..30T;14B,15BFT..BU211,222..40T..GEN..(IV2,IV3)¥31,900199811

CHILE SPEC;ALGERIA SPEC;CHINA SPEC;KENYA SPEC

main82021-37372i14B..BU221..LHD¥31,900200111

ALGERIA SPEC

main82021-37570i15BF..BU212..TW1199505-199810

sub82021-37571¥31,900

main82021-37570i14B..BU211..TW1199610-199810

W(105E41R BATTERY)

sub82021-37571¥31,900

main82021-37571i14B,15BF..BU211,212..TW1¥31,900199810

W(105E41R BATTERY)

main82021-37630i15BFT..BU142..EUR¥12,000199605-200110

main82021-37640i3RZFE..RZU100..15T¥16,300199908

main82021-37660i14B..BU211,221..40T..SA¥19,400199511-200008

main82021-37720i14B..BU211..TW1¥10,500199610-199810

sub82021-37721¥31,900

main82021-37721i14B..BU211..TW1¥31,900199810

main82021-37751i15BFTE..BU213,223¥31,900199908

main82021-95439i4Y..YU210¥25,300199505

28800FCABLE, BATTERY TO BATTERY

main82123-37010i15BFT..BU212..RHD;15BFT,3B..BU100,222..WT..GEN;15BFT,3B..BU100,212..(175T,30T)..GEN;14B,15BF,3B..BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3)¥3,830199505-200111

28897PLATE, BATTERY CAUTION

main28897-54030i15BFT..BU142,222..EUR¥120199610-200110

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-95409iYU210¥16,300199505

82124BWIRE, ENGINE, NO.4

main82124-37040iBU141..LHD¥470199505

ALGERIA SPEC

main82124-37040iBU101..LHD..WT..IV3..TS¥470200111

main82124-37050iBU142..EUR¥480199605-200110

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270¥280

8271137050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37050¥300

8271195015WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95015¥330

8271537046BRACKET,WIRING HARNESS CLAMP

main82715-37046

8271537460BRACKET,WIRING HARNESS CLAMP

main82715-37460¥370

8281795402PROTECTOR, WIRING HARNESS, NO.1

main82817-95402¥260

9011908827

main90119-08827¥90

9011908A46

main90119-08A46¥80

9046110294

main90461-10294¥600

9413000802

main94130-00802¥90

17 parts on this diagram · 2 diagrams in section
