BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-36010iBU222..EUR;BU102,142..RHD..GEN199605-199808

main74042-36010iBU102..ST199705-199707

TAIWAN SPEC

main74042-36010iBU141..LHD199505-200212

ALGERIA SPEC & W(BATTERY=55D23R X2)

main74042-36010iBU211..RHD..40T..GEN..IV3199708-200212

KENYA SPEC & W(BATTERY=55D23R X2)

main74042-36010iBU221..LHD;BU101,211..LHD..WT..(20T,40T)..IV3200111-200212

ALGERIA SPEC

main74042-36010iBU102..15T;BU142..EUR;BU211..IV2;BU212..RHD..GEN..IV3199808

W(BATTERY=55D23R)

main74042-36020iBU211..GEN..(CBU,IV3);BU142,212..LHD..(25T,40T)..TD..GEN;BU100,101,140,141,RZU100,YU210..GEN,SA;BU100,101,221..WT..(20T,40T)..(ARL,GEN)..TB199505-199808

main74042-36041iBU101..ARL..TS;BU212,222..DSL..SA199908-200212

main74042-36041iBU212..LHD;BU222..TD..SA;BU212..TD..CBU;BU101,141,221..GEN;BU212,222..DSL..(ARL,GEN);BU142,211..DSL..(CBU,IV3)199505-200008

W(BATTERY=105E41R)

main74042-36060iBU100..175T..GEN;BU100,140,211..LHD..T3..WT199505-200212

CHINA SPEC & W(BATTERY=95D31R X2)

main74042-36060iBU112,222..GEN;BU101..175T..GEN;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU102,212..(20T,30T,40T)..DSL..GEN..IV3199610-200212

W(BATTERY=95D31R X 2)

main74042-36060iBU101,211,221..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

main74042-36060iBU213,223199908

main74042-36080iBU111..IV3199505-200212

main74042-36090iBU11#..DM1199505-200212

main74042-36120iBU111..RHD199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

main74042-36120iBU111..LHD..CBU199505-199708

CHINA SPEC & W(BATTERY=95D31R X2)

74413BOLT, BATTERY CLAMP

main74451-36070iBU102..15T;BU212..CBU;BU212..LHD..40T..TD;BU102,212,222..ARL,TAIW;BU100,101,11#,14#,211,221,RZU100,YU210..DM1,DM6,T1,T2,T3,TW1,TW2199505-200008

main74451-36070iBU102..ST199705-199707

TAIWAN SPEC

main74451-36070iBU141..LHD199505-199708

ALGERIA SPEC & W(BATTERY=55D23R X2)

main74451-36090iBU213,223199708-200212

W(BATTERY=95D31R X 2)

main74451-36090iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

main74451-36090iBU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T)..GEN;BU102,111,112,140,141,211..LHD..(DM1,DM7,T2,T3)..GEN199505-199708

CHINA SPEC & W(BATTERY=95D31R X2)

74453ABAR, BATTERY SET PLATE

main74453-25100iBU101,11#,140,141,YU210..DM1,T1,T3;BU100,102..WT..20T..(ARL,TAIW)..TB;BU100,211,221,RZU100..GEN..(CBU,IV3)199505-199808

main74453-36050iBU101..GEN;BU212..CBU;BU211,221..CBU,IV3;BU212..LHD..40T..TD;BU100,14#..(T3,TW2)..DSL..(ARL,GEN);BU102,212,222..(T3,TW1)..(ARL,SA,TAIW)199505-200004

W(BATTERY=105E41R)

sub74453-36060

main74453-36050iBU101..ARL..TS199908-200004

sub74453-36060

main74453-36060iBU212..LHD;BU222..ARL,SA;BU212..TD..CBU;BU211,212,221..DSL..(CBU,IV3);BU101,14#..(T1,T3,TW2)..DSL..(ARL,GEN)200004

W(BATTERY=105E41R)

main74453-36070iBU100..175T..GEN;BU100,140,211..LHD..T3..WT199708-200212

KENYA SPEC & W(BATTERY=55D23R X2)

sub74453-37130

main74453-36070iBU100..175T..GEN;BU100,140,211..LHD..T3..WT199505-200212

CHINA SPEC & W(BATTERY=95D31R X2)

sub74453-37130

main74453-36070iBU221..LHD;BU101..LHD..WT..IV3..TS200111-200212

ALGERIA SPEC

sub74453-37130

main74453-36070iBU142..EUR;BU211..IV2;BU101..175T..GEN;BU212..30T..TD..IV3;BU212..RHD..GEN..IV3;BU102,212..DSL..GEN..IV3;BU111,112,222..(EUR,GEN)..IV3199505

W(BATTERY=95D31R X 2)

sub74453-37130

main74453-36070iBU102,142,213,223..(20T,30T,40T)..GEN199908

sub74453-37130

main74453-36070iBU111,221..RHD..GEN;BU101,211..RHD..WT..(20T,40T)..GEN..IV3199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

sub74453-37130

main74453-36070iBU141..LHD199505-200212

ALGERIA SPEC & W(BATTERY=55D23R X2)

sub74453-37130

74461COVER, BATTERY

main74461-36100iBU102..ST199705-199707

TAIWAN SPEC

main74461-36100iBU111..IV3199505-199808

main74461-36110iBU111..RHD199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

74473SPACER, BATTERY

main74473-36040iYU210;RZU100..15T199505

main74473-36050iRZU100..RHD199703-200009

74474PAD, BATTERY

main74475-36040iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

74481CLAMP, BATTERY HOLD DOWN

main74481-36030iBU111..RHD199505-199703

HONG KONG SPEC & W(BATTERY=95D31R X2)

main74481-36030iBU102..ST199705-199707

TAIWAN SPEC

main74481-36030iBU111..IV3199505-199808

9017908141

main90179-08141

91645C1032

main91645-C1032

9413001002

main94130-01002

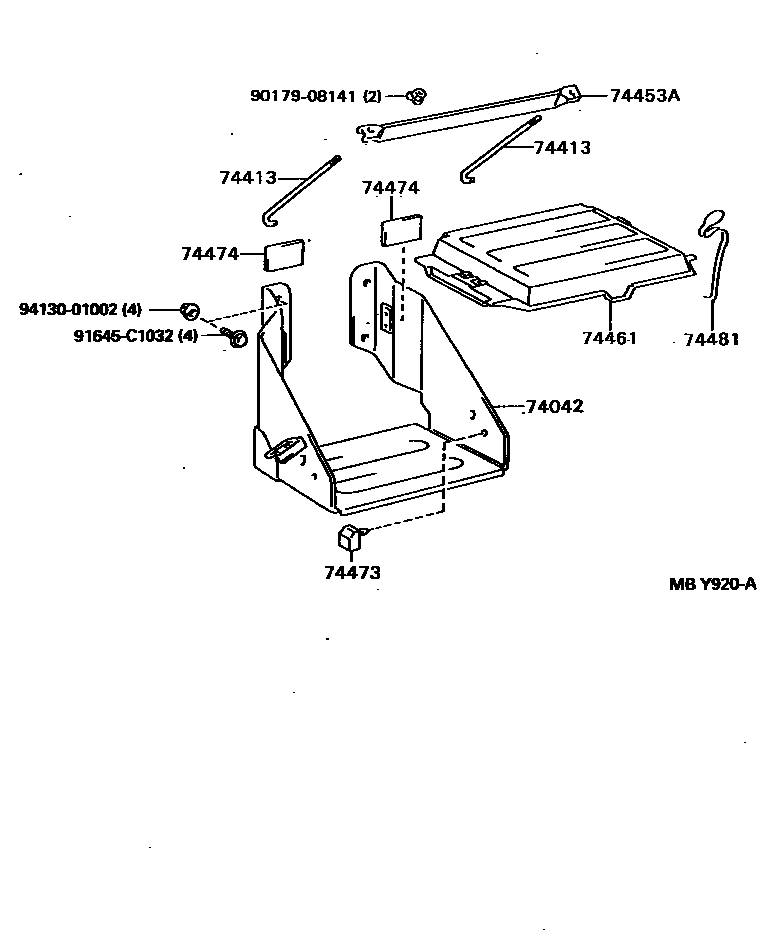

10 parts on this diagram · 1 diagram in section
