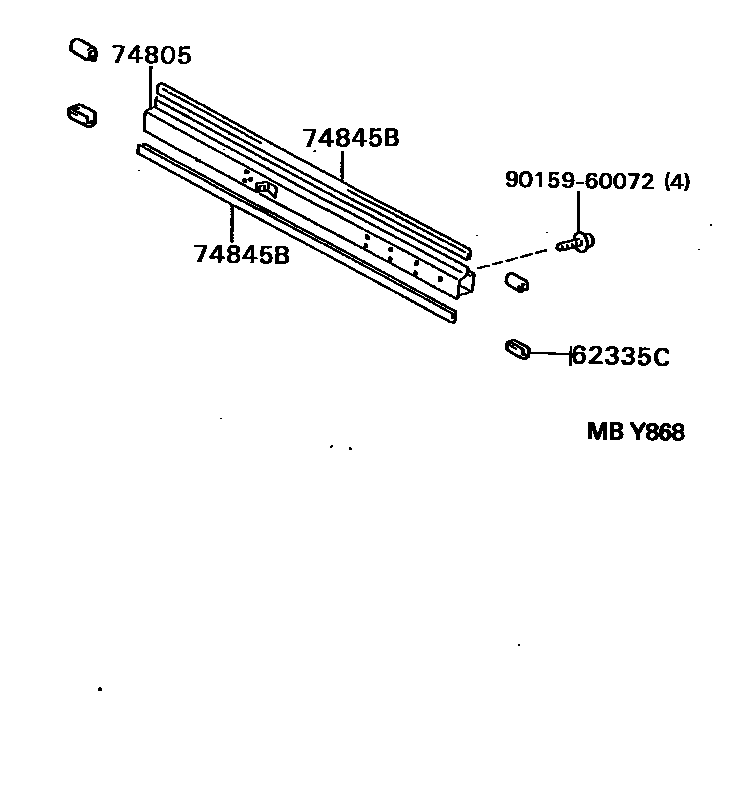

SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-92600-B0iBU100,101,142,211,212..TW1,TW2199505

GRAY,TRIM1#

sub62335-92600

74805SEPARATOR SUB-ASSY

main74805-37020iBU100,101..ARL..CBU199505

main74805-37060iBU212..TW1199505

main74805-37100iBU211..TW1199610

main74805-95403iBU100,101,142..LHD..(TW1,TW2)199505

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-92602-B0iBU211,212..TW1199505

GRAY,TRIM1#

sub74845-92602

main74845-95400-B0iBU100,101,142..TW1,TW2199505

GRAY,TRIM1#

9015960072

main90159-60072

4 parts on this diagram · 1 diagram in section
