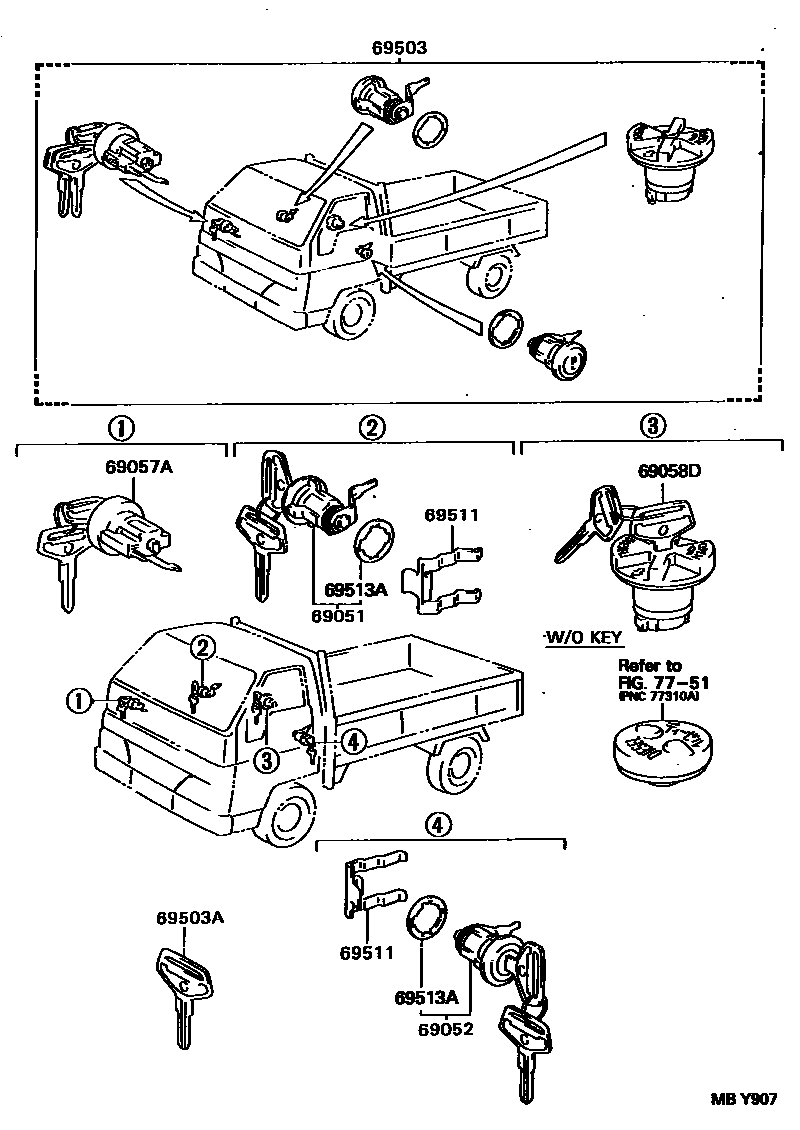

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37040iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37070iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37040iBU100,110,140199505-199908

main69057-37050iBU101,102,111,112,141,142,21#,22#,RZU100,YU210199505-200008

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37050iBU212,222..DSL..SA;BU102,142..RHD..GEN200005

main69058-37050iBU222..TD..SA;BU212..ARL,GEN,TAIW;BU10#,11#,140,141,211,213,221,223..DSL,TDEFI;BU142,222..(20T,25T,40T)..(ARL,EUR,GEN,TAIW)199505-200008

W(FUEL TANK CAP W/KEY)

main69058-37050iBU211..IV2;BU212..LHD..30T;BU213,222,223..LHD..(GEN,TAIW)199505

W(FUEL SUB-TANK)

main69058-37060iRZU100,YU210199505

69503CYLINDER SET, LOCK

main69503-37090iBU100,140..GEN199505-199905

main69503-37100iBU100,140..GEN199505-199905

W(FUEL TANK CAP W/KEY)

main69503-37100iBU100,110,140..ARL,EUR199505-199908

main69503-37110iBU140..GEN199505-199905

W(FUEL TANK CAP W/KEY & FUEL SUB-TANK)

main69503-37120iBU222..RHD..GEN;BU212..30T..TD..CBU;BU102,212..(20T,25T,40T)..TD;BU101,141,142,211,221,RZU100..(175T,20T,25T,30T,40T)..GEN199505

main69503-37130iBU222..TD..SA;BU212,222..ARL,EUR,GEN;BU10#,111,14#,211,213,221,223199505-200008

W(FUEL TANK CAP W/KEY)

main69503-37130iBU212,222..DSL..SA200005

main69503-37140iBU212..TAIW;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

W(FUEL SUB-TANK)

main69503-37140iBU212..LHD..40T..TD;BU212..30T..DSL..GEN..IV3;BU141,211,213,221,223..T3..GEN199505

W(FUEL TANK CAP W/KEY & FUEL SUB-TANK)

main69503-37150iRZU100..RHD199703

W(FUEL TANK CAP W/KEY)

main69503-37150iYU210;RZU100..15T199505

69503AKEY, BLANK

main90999-00185iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

MASTER KEY,W(*68)

main90999-00186iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

69513APAD, DOOR CYLINDER

main69513-32010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

7751

9 parts on this diagram · 1 diagram in section
