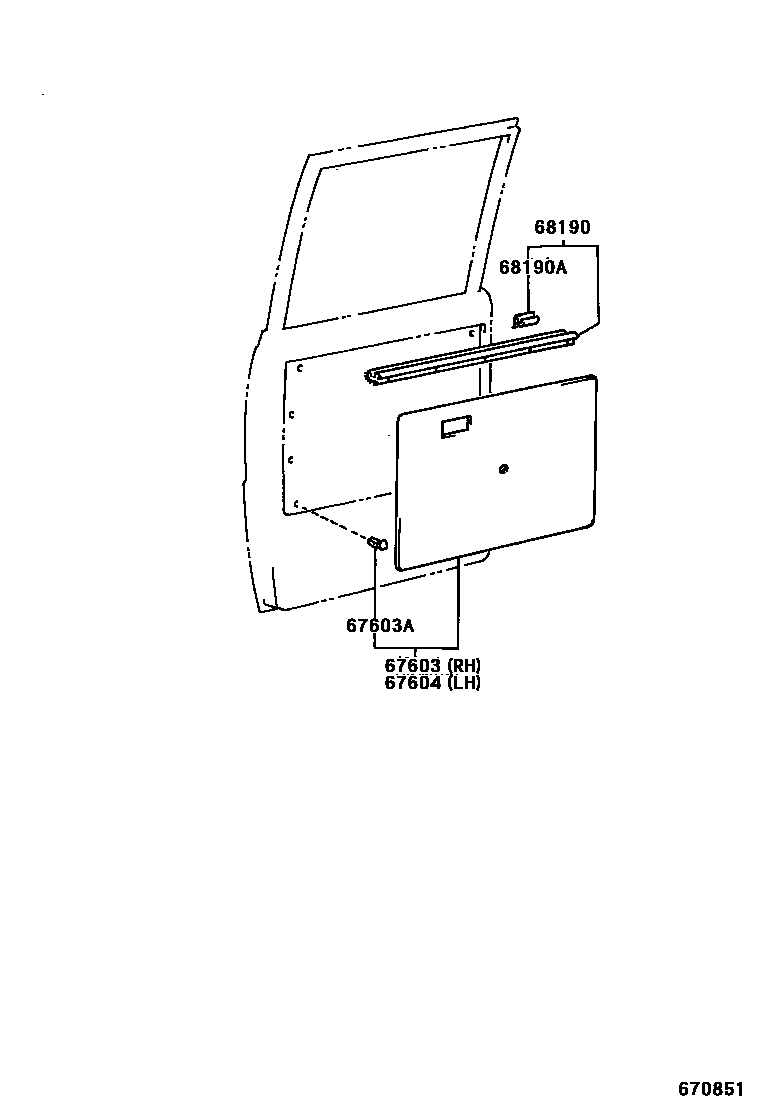

REAR DOOR PANEL & GLASS

0001 1 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-95403-B0iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

sub67630-95403

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12020iBU100,101,142,211,212..TW1,TW2199505-200212

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-95403-B0iBU100,101,142,211,212..TW1,TW2199505-200212

GRAY,TRIM1#

sub67640-95403

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-95401iBU100,101,142,211,212..TW1,TW2199505

RH

main68174-95400iBU100,101,142,211,212..TW1,TW2199505

LH

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iBU100,101,142,211,212..TW1,TW2199505

5 parts on this diagram · 2 diagrams in section
