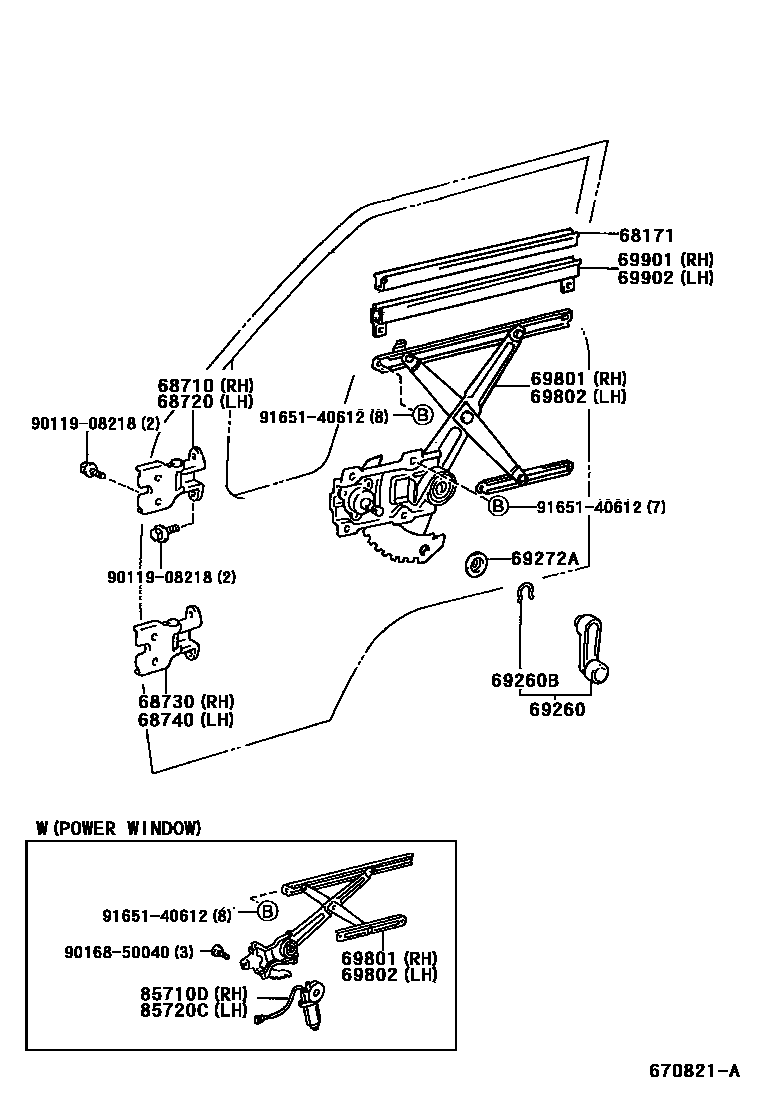

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95403iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200005

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95403iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200005

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-37010iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200005

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37010iBU211..GEN;BU211..30T..SA;BU10#,111,14#,212,213,22#,RZU100,YU210199505-200005

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-B1iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505-200008

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505

NATURAL WHITE,TRIM1#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37010iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

main69801-37010iBU212..(25T,30T)..TD;BU212..DSL..(GEN,TAIW);BU102,112,213,222,223,RZU100..LHD..(GEN,TAIW)199505

main69810-37010iBU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T199505-200008

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37010iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

main69802-37010iBU212..(25T,30T)..TD;BU212..DSL..(GEN,TAIW);BU102,112,213,222,223,RZU100..LHD..(GEN,TAIW)199505

main69820-37010iBU212..IV3;BU10#,111,14#,211,221,222,RZU100,YU210..175T,20T,25T,30T,40T199505-200008

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95404iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95404iBU10#,111,14#,21#,22#,RZU100,YU210199505-200008

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37010iBU211,221..RHD..40T..GEN..IV3199505-199703

HONG KONG SPEC

main85710-37010iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199610

main85710-37020iBU102,112,212,222..TAIW199505-199610

main85710-37030iBU212..CBU;RZU100..15T;BU102,112..TAIW199610

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37020iBU212,222..RHD..GEN..IV3199505-199703

HONG KONG SPEC

main85720-37020iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223..(DSL,TDEFI)..GEN..IV3199610

main85720-37030iBU102,112,212,222..TAIW199505-199610

main85720-37040iBU212..CBU;RZU100..15T;BU102,112..TAIW199610

9011908218

main90119-08218

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
