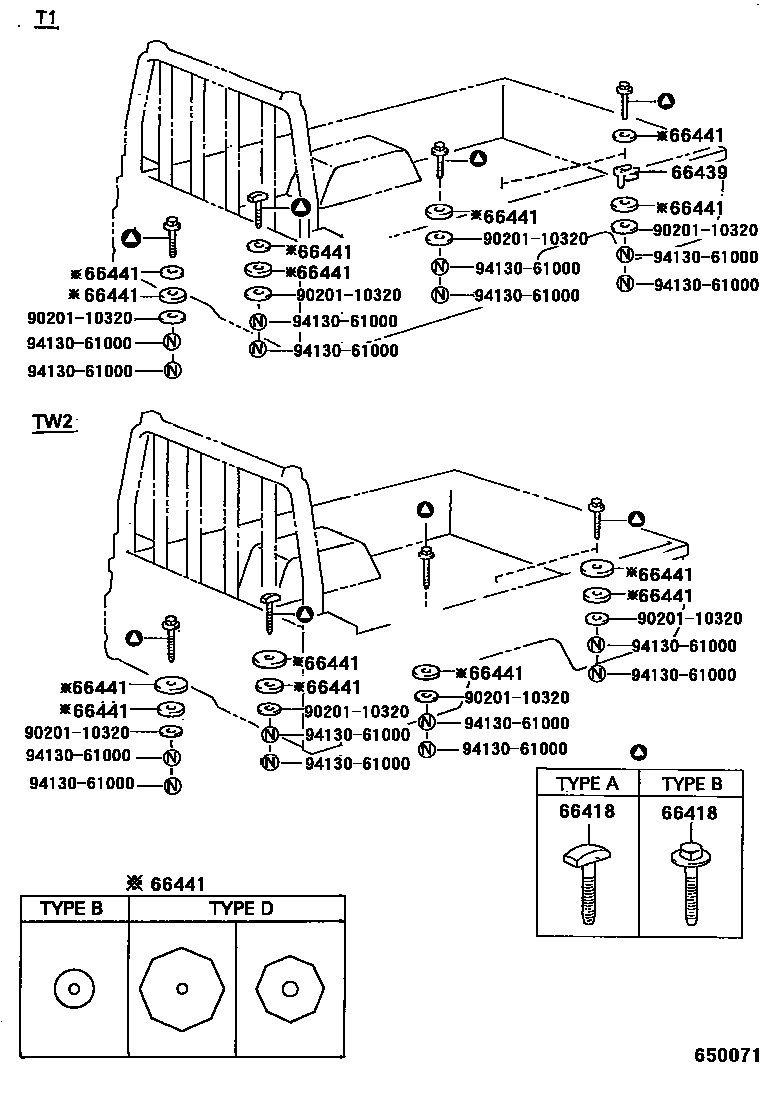

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

66418BOLT, MOUNTING

main66418-95400iBU101..T1..CBU199505-200008

THAILAND SPEC,TYPE A

main66418-95400iBU100,101..(T1,TW2)..CBU199505

TYPE A

main66461-92820iBU211,212..CBU199505

L=363

main66463-92707iBU211,212..CBU199505-199803

L=336

main90117-12009iBU100,101..T3..CBU199505-199711

L=340

sub90117-12021

main90117-12010iBU100,101..T3..CBU199505

L=397

main90117-12020iBU100,101..T3..CBU199505

L=402

main90117-12021iBU140,141..CBU199803

L=346

main90117-12021iBU100,101..T3..CBU199711

L=340

main90117-12022iBU140,141..CBU199803

L=300

main90117-12023iBU140,141..CBU199505-199803

L=380

main90117-12025iBU221..CBU199505

L=365

main90117-12026iBU221..CBU199505

L=335

main90117-12027iBU211,212,221..CBU199505

L=310

main90119-10091iBU101..T1..CBU199505-200008

THAILAND SPEC,TYPE B

main90119-10490iBU100,101..175T199505

TYPE B

66439SHIM, SUPPORT

main66439-95400iBU101..T1..CBU199505

66441SHIM, MOUNTING, NO.1

main65128-95400iBU100,101..T3..CBU199505

TYPE A

main66441-95A01iBU100,101..175T199505

TYPE D

main66442-95403iBU100,101..T3..CBU199505

W(RR *STAC),TYPE B

main66442-95403iBU100,101..T3..CBU199505

TYPE B

main66443-95405iBU100,101..T3..CBU199505

W(RR *STAC),TYPE C,90 X 55

main66443-95405iBU100,101..T3..CBU199505

TYPE C

main66443-95410iBU100,101..T3..CBU199505

W(RR *STAC),TYPE C,74 X 55

main90564-10167iBU101..T1..CBU199505-200008

TYPE B

main90564-15142iBU100,101..T3..CBU199505

TYPE D

main90564-15142iBU101..T1..CBU199505-200008

THAILAND SPEC,TYPE D

9020110320

main90201-10320

9413061000

main94130-61000

5 parts on this diagram · 4 diagrams in section
