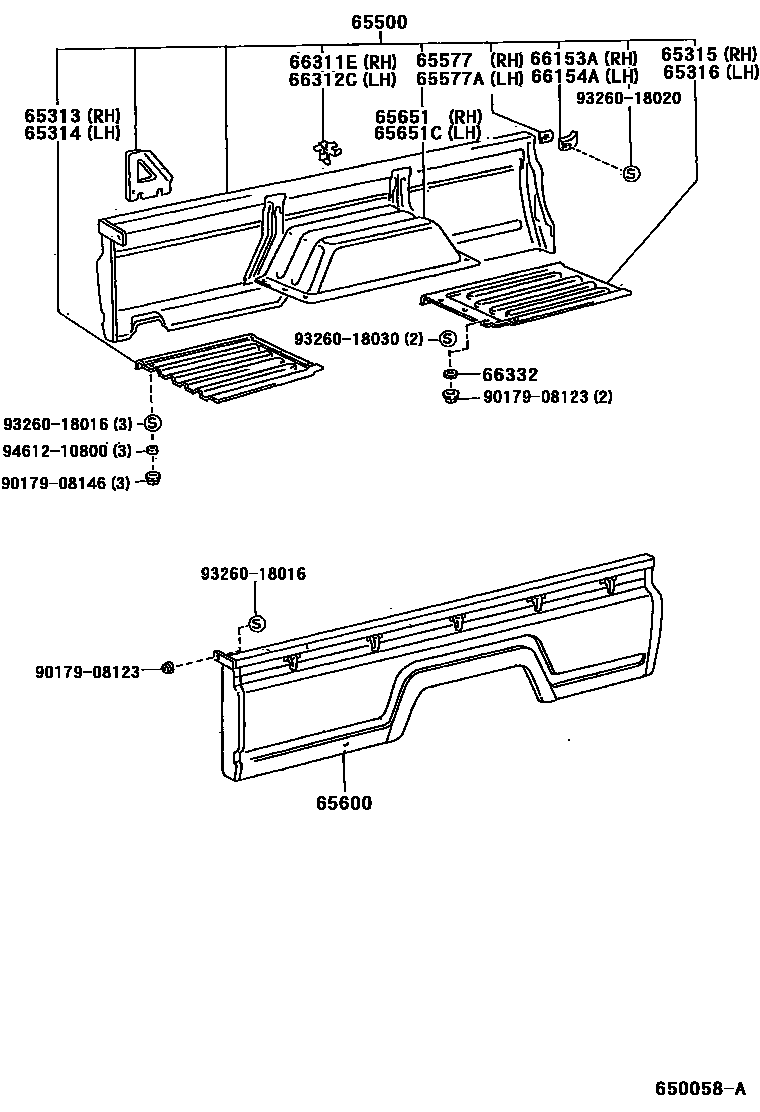

REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
65314PANEL, FLOOR FRONT CORNER, LH
65315PANEL, FLOOR REAR CORNER, RH
65316PANEL, FLOOR REAR CORNER, LH
65500PANEL ASSY, REAR BODY SIDE, RH
FRONT
REAR
65577RETAINER, TAIL GATE LATCH FEMALE
65577ARETAINER, TAIL GATE FEMALE
65600PANEL ASSY, REAR BODY SIDE, LH
FRONT
REAR
65651PANEL, WHEEL HOUSE
65651CPANEL, WHEEL HOUSE
66153ALATCH, TAIL GATE FEMALE, RH
66154ALATCH, TAIL GATE FEMALE, LH
66332CUSHION, RUBBER
9017908123
main90179-08123
9017908146
main90179-08146
9326018016
main93260-18016
9326018020
main93260-18020
9326018030
main93260-18030
9461210800
main94612-10800
21 parts on this diagram · 4 diagrams in section
