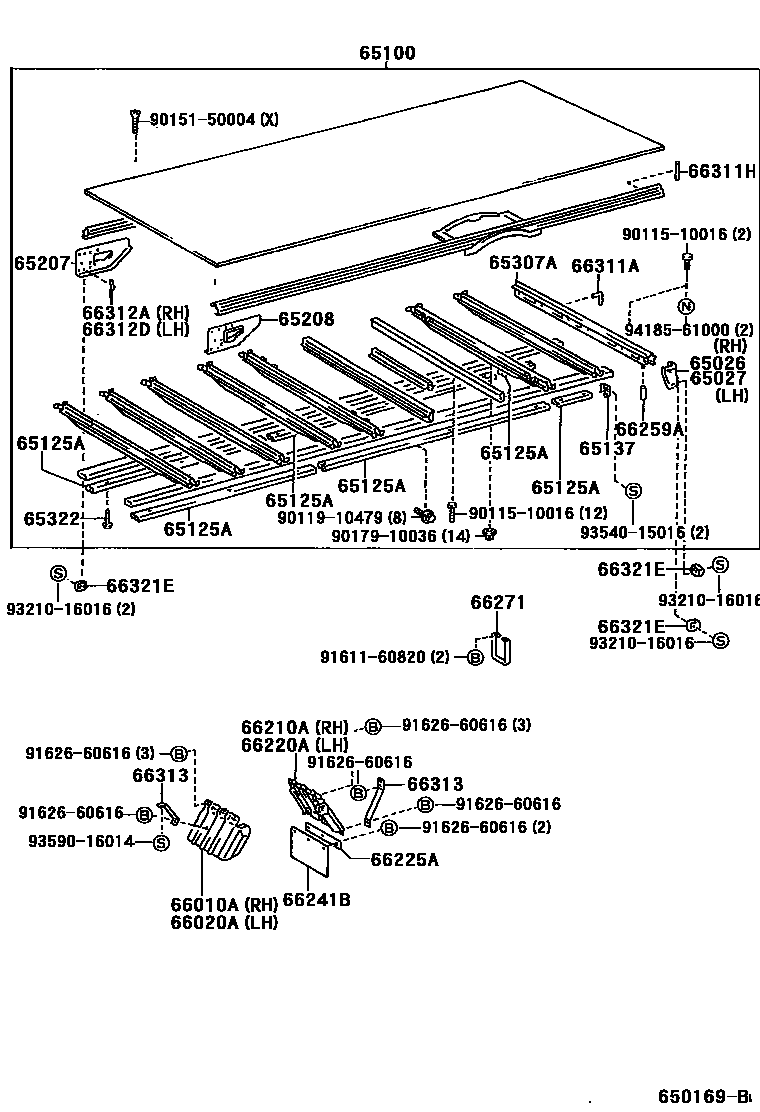

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1

65026BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH

main65026-37020iBU140,141,211,212,221..CBU199505

65027BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH

main65027-37020iBU140,141,211,212,221..CBU199505

65100FLOOR ASSY, REAR BODY

main65100-37032iBU101..T1..CBU199505

main65100-37070iBU100,101..WT..CBU199505

main65100-37080iBU100,101..WT..CBU199505

W(REAR *STAC)

main65100-37100iBU100,101..T3..ST..CBU199505

main65100-37110iBU100,101..T3..ST..CBU199505

W(REAR *STAC)

main65100-37281iBU100,101..175T199505

main65100-37390iBU211..T3..30T..CBU199505

main65100-37400iBU211..40T..CBU199505

main65100-37410iBU221..CBU199505

main65100-37580iBU140,141..CBU199505

main65100-37600iBU212..CBU199703

main65100-3V140iBU140,141..CBU199505

W(REAR *STAC)

main65100-3V660iBU211..TW1199610

65125ASHIM, MAIN SILL, LOWER NO.1

main65125-37050×3iBU221..CBU199505-199904

L=2000,FR-2,RR-RH

main65125-37260×2iBU211..TW1199610-200102

CTR

main65125-37310iBU221..CBU199505

CTR-RH

main65125-37320iBU221..CBU199505

CTR-LH

main65127-37180iBU221..CBU199505-199904

L=500,RR-RH

main65127-37330×3iBU140,141..CBU199505-199904

FR-2,RR-RH-1

main65128-37140iBU21#..T3..DSL..CBU199505-199904

L=2000,RR-LH

main65128-37180×2iBU221..CBU199904

main65128-37250iBU140,141..CBU199505

RR-LH

main65128-37260iBU140,141..CBU199505-199904

W(REAR *STAC),RR-LH

main65128-37290×2iBU211..TW1200102

CTR

65137COVER, MAIN SILL END

main65137-37030×2iBU140,141,211,212,221..CBU199505

65207BRACKET SUB-ASSY, GUARD FRAME, RH

main65413-37030iBU140,141,211,212,221..CBU199505

65208BRACKET SUB-ASSY, GUARD FRAME, LH

main65415-37010iBU140,141,211,212,221..CBU199505

65307AFRAME SUB-ASSY, FLOOR, REAR

main65307-37020iBU211,221..40T..CBU199505

main65307-37150iBU140,141,211,212..(25T,30T)..CBU199505

65322NAIL

main65322-92820×12iBU221..CBU199505

sub90290-05004

66010AFENDER ASSY, REAR NO.2 RH

main66010-37010iBU211,221..40T..CBU199505

main66010-37030iBU140,141,211,212..(25T,30T)..CBU199505

main66201-95402iBU100,101..WT..CBU199505

main66237-93103iBU110,111..CBU199505

66020AFENDER ASSY, REAR NO.2 LH

main66020-37010iBU211,221..40T..CBU199505

main66020-37030iBU140,141,211,212..(25T,30T)..CBU199505

main66202-95402iBU100,101..WT..CBU199505

main66237-93103iBU110,111..CBU199505

66210AFENDER ASSY, REAR NO.1 RH

main66010-25120iBU101..T3..ST..CBU200110

main66010-95017iBU100,101..T3..ST..CBU199505-200110

main66210-37020iBU211,221..40T..CBU199505

main66210-37050iBU140,141,211,212..(25T,30T)..CBU199505

main66210-95404iBU100,101..WT..CBU199505

sub66210-37300

main66237-93103iBU110,111..CBU199505

66220AFENDER ASSY, REAR NO.1 LH

main66020-25090iBU101..T3..ST..CBU200110

main66020-95017iBU100,101..T3..ST..CBU199505-200110

main66220-37020iBU211,221..40T..CBU199505

main66220-37050iBU140,141,211,212..(25T,30T)..CBU199505

main66220-95404iBU100,101..WT..CBU199505

sub66220-37260

main66237-93103iBU110,111..CBU199505

66225ASUPPORT, BAFFLE RUBBER

main66225-37020iBU101..T3..ST..CBU200110

RR-RH

main66225-95403iBU100,101..T3..ST..CBU199505-200110

RR-RH

main66226-37020iBU101..T3..ST..CBU200110

RR-LH

main66226-95402iBU100,101..T3..ST..CBU199505-200110

RR-LH

main66242-37090iBU140,141,211,212..(25T,30T)..CBU199505

RH

main66242-37120iBU140,141,211,212..(25T,30T)..CBU199505

LH

main66242-37130iBU211,221..40T..CBU199505

main66243-37020iBU100..ARL..CBU199511-199610

RH

main66243-37031iBU100,101..(T1,TW2)..CBU199610

RR-RH

main66243-95400×2iBU100,101..(T1,TW2)..GEN..CBU199511-199610

main66244-37020iBU100..ARL..CBU199511-199610

LH

main66244-37030iBU100,101..(T1,TW2)..CBU199610

RR-LH

66241BBAFFLE, RUBBER

main66241-37040iBU211,221..40T..CBU199505

RH

main66241-37050iBU211,221..40T..CBU199505

LH

main66241-37060iBU140,141,211,212..(25T,30T)..CBU199505

RH

main66241-37070iBU140,141,211,212..(25T,30T)..CBU199505

LH

main76625-25030×2iBU101..T3..ST..CBU200110

sub76625-25040

main76625-37010×2iBU100,101..T3..ST..CBU199610-200110

main76625-37020iBU100,101..WT..CBU199505

RH

main76625-37050iBU100..ARL..CBU199511-199610

RH

main76625-37060×2iBU100..175T;BU101..(T1,TW2)..GEN..CBU199610

main76625-37100iBU101..ARL..CBU199908

RH

main76625-37110iBU101..ARL..CBU199908

main76626-37010iBU100,101..WT..CBU199505

LH

main76626-37020iBU100..ARL..CBU199511-199610

LH

66259ACOVER, REAR BODY FLOOR, REAR

main66259-37010×6iBU140,141,211,212,221..CBU199505

66271STEP, REAR BODY

main66271-37030iBU140,141,211,212,221..CBU199505

main66271-93100iBU110,111..CBU199505

66311AHOOK, ROPE, NO.1

main66315-37010×4iBU140,141,211,212,221..CBU199505

66311HHOOK, ROPE

main66311-37020×18iBU221..CBU199505

66312AHOOK, ROPE, NO.2

main66312-37020iBU140,141,211,212,221..CBU199505

66312DHOOK, ROPE, NO.2

main66312-37020iBU140,141,211,212,221..CBU199505

66313SUPPORT, REAR FENDER

main66235-37020×2iBU140,141,211,212,221..CBU199505

REAR

main66235-95404×2iBU100,101..WT..CBU199505

main66235-95405×2iBU100,101..(T1,TW2)..CBU199505

main66236-37010×2iBU140,141,211,212,221..CBU199505

FRONT

66321EBUMPER, GATE RUBBER

main66321-92803×2iBU140,141,211,212,221..CBU199505

SIDE GATE

main66321-92805×4iBU221..CBU199505

W(POWER TAIL GATE)

main66321-93103×4iBU110,111..CBU199505

main66321-95012×2iBU100,101..T3..CBU199505

SIDE GATE

main66321-95406×2iBU100,101..(T1,TW2)..CBU199505

sub66321-37010

main66321-95407×2iBU100,101..T3..CBU199505

TAIL GATE

9011510016

main90115-10016

9011910479

main90119-10479

9015150004

main90151-50004

9017910036

main90179-10036

9161160820

main91611-60820

9162660616

main91626-60616

9321016016

main93210-16016

9354015016

main93540-15016

9359016014

main93590-16014

9418561000

main94185-61000

33 parts on this diagram · 5 diagrams in section
