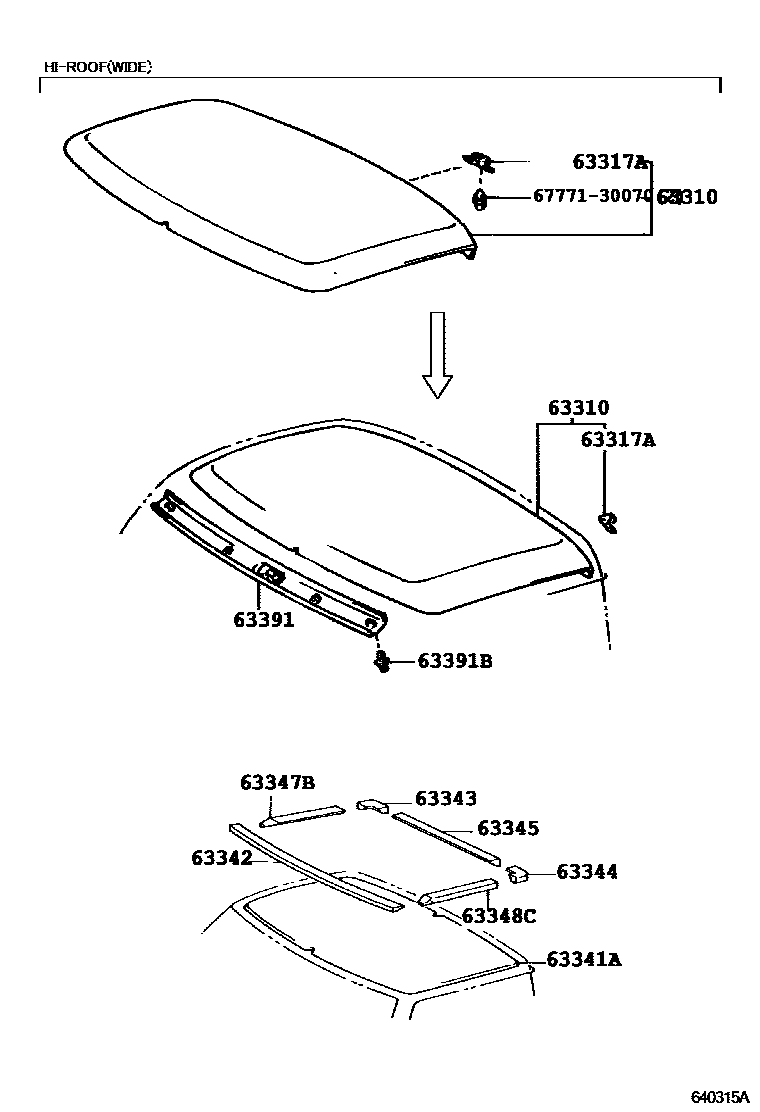

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-25010-B0iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505-200212

LT. GRAY,TRIM1#

main63310-37030-B0iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

LT. GRAY,TRIM1#

main63310-95401-B0iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

LT. GRAY,TRIM1#

63317ARETAINER, ROOF HEADLINING

main63317-25010iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505-200212

main63317-37010iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

63341PAD, ROOF SILENCER, NO.1

main63341-95417iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

63341ASILENCER, ROOF, NO.1

main63341-37040-B1iBU211..TW1199610-200212

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main63341-37040-B1iBU212..TW1199505-200212

LT. GRAY,TRIM1#

main63341-37050-B1iBU211..TW1199610-200212

LT. GRAY,TRIM1#

main63341-95409-B0iRZU100..RHD;BU10#,111,112,14#..(15T,20T,25T,30T)..(GEN,SA,TAIW)199505

LT. GRAY,TRIM1#

sub63341-95409

main63341-95410-B1iBU142..T3..25T;BU100,101,111,140,141,RZU100..(DM1,T1,T3)..(EUR,GEN)199505-200212

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

sub63341-95410

sub63341-95409

main63341-95411-B1iBU212..40T..TD;BU222..RHD..GEN;BU211,221..T3..GEN199505

LT. GRAY,TRIM1#

sub63341-95411

main63341-95412-B1iBU212,222..EUR,SA199902-200212

LT. GRAY,TRIM1#

sub63341-95412

main63341-95412-B1iBU212..40T..TD;BU222..RHD..GEN;BU211,221,YU210..T3199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

sub63341-95412

main63341-95414-B1iBU101..175T..GEN;BU100,142..TW1,TW2199505-200212

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

sub63341-95414

sub63341-95415

main63341-95414-B1iBU101..ARL..CBU199908-200212

LT. GRAY,TRIM1#

sub63341-95414

sub63341-95415

main63341-95415-B1iBU100,101..175T..GEN199505-200212

LT. GRAY,TRIM1#

sub63341-95415

63342PAD, ROOF SILENCER, NO.2

main63342-37040iBU212..TW1;BU212..(GEN,SA)..IV3;BU211,221,222,YU210..EUR,GEN,SA199505-200008

63343PAD, ROOF SILENCER, NO.3

main63341-37070iBU211,212..TW1199505-200212

SIDE-RH

main63343-37040iBU211,212..TW1199505-200212

REAR-RH

main63343-37040iBU222..EUR;BU212..LHD..40T..TD;BU211,221,YU210..T3;BU212,222..RHD..(GEN,SA)..IV3199505-200008

63344PAD, ROOF SILENCER, NO.4

main63341-37070iBU211,212..TW1199505-200212

SIDE-LH

main63344-37030iBU222..EUR;BU212..LHD..40T..TD;BU211,221,YU210..T3;BU212,222..RHD..(GEN,SA)..IV3199505-200008

main63344-37030iBU211,212..TW1199505-200212

REAR-LH

63345PAD, ROOF SILENCER, NO.5

main63345-37010iBU222..EUR;BU212..LHD..40T..TD;BU211,221,YU210..T3;BU212,222..RHD..(GEN,SA)..IV3199505-200008

main63345-92601iBU211,212..TW1199505-200212

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-37010iBU222..EUR;BU212..LHD..40T..TD;BU211,221,YU210..T3;BU212,222..RHD..(GEN,SA)..IV3199505-200008

main63347-37020iBU211,212..TW1199505-200212

63348CPAD, ROOF SIDE RAIL SILENCER, LH

main63348-37010iBU222..EUR;BU212..LHD..40T..TD;BU211,221,YU210..T3;BU212,222..RHD..(GEN,SA)..IV3199505-200008

main63348-37020iBU211,212..TW1199505-200212

63391TRIM, ROOF HEADLINING, FRONT

main63391-25020-B0iBU212..CBU;BU100,110,142..20T..ARL199505-200212

LT.GRAY,TRIM1#

main63391-37010-B0iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU213,222,223..(DSL,TDEFI)..(ARL,GEN)199505-199708

LT.GRAY,TRIM1#

63391BCLIP, ROOF HEADLINING TRIM

main90467-07043-B1iBU212..CBU;BU100,110,142..20T..ARL199505-200212

LIGHT GRAY,TRIM1#

sub90467-07043

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

13 parts on this diagram · 3 diagrams in section
