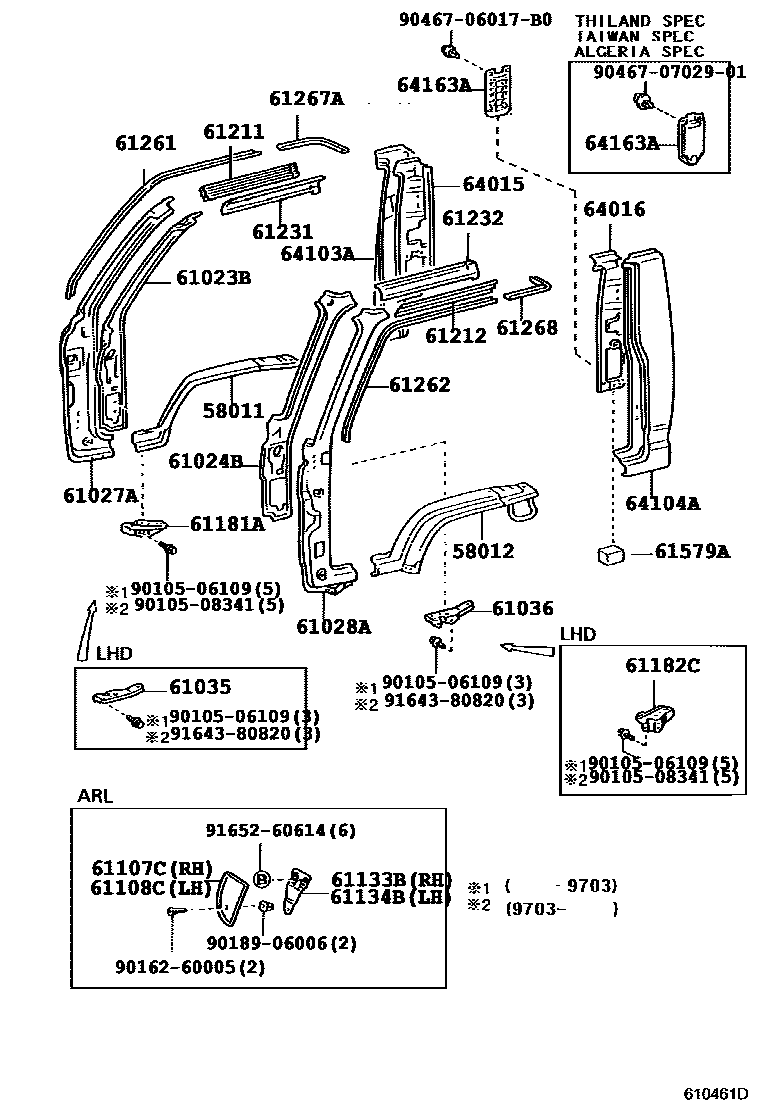

SIDE MEMBER

0001 1 0002 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-37010iBU212,222..T3;BU142..T3..(20T,25T);BU10#,11#,140,141,211,213,221,223,RZU100,YU210..(DM1,DM6,DM7,T1,T2,T3,T4)..(CBR,DSL,EFI,TDEFI)199505-200008

main58011-37020iBU142..T3..(20T,25T);BU101,111,141,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3,T4200101

sub58011-25020

sub90333-15002

main58011-37030iBU100,101,142,211,212..TW1,TW2199505

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-37010iBU212,222..T3;BU142..T3..(20T,25T);BU10#,11#,140,141,211,213,221,223,RZU100,YU210..(DM1,DM6,DM7,T1,T2,T3,T4)..(CBR,DSL,EFI,TDEFI)199505-200008

main58012-37030iBU142..T3..(20T,25T);BU101,111,141,21#,22#,RZU100,YU210..DM1,DM6,T1,T2,T3,T4200101

main58012-37040iBU100,101,142,211,212..TW1,TW2199505

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37010iBU100,110,142,212..RHD..(DM1,T3)..DSL199505-199708

sub91643-80820

main61023-37011iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU100,101,110,142,222..WT..ARL199708

main61023-37020iBU212..RHD..GEN..IV3;BU100,212..(TW1,TW2)..ARL;BU101,111,140,141,211,22#,RZU100,YU210..RHD199505-199708

sub91643-80820

main61023-37021iBU212..RHD..(GEN,SA)..IV3;BU100,101,212..(TW1,TW2)..ARL;BU101,102,111,14#,211,221,222,RZU100,YU210..RHD..(GEN,SA)199708-200008

main61023-37030iBU10#,111,112,14#,21#,22#..LHD199505-199708

sub91643-80820

main61023-37031iBU10#,111,112,14#,211,212,221,222..LHD199708

main61023-37060iBU213,223,RZU100..LHD199908

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37030iBU100,110,142,212..RHD..(DM1,T3)..DSL199505-199708

sub91643-80820

main61024-37031iBU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN);BU100,101,110,142,222..WT..ARL199708

main61024-37040iBU100,212..(TW1,TW2)..ARL;BU101,111,140,141,211,221,YU210..RHD199505-199602

sub91643-80820

main61024-37041iBU212..TW1;BU212,222..RHD..GEN..IV3;BU101,102,111,14#,RZU100..RHD..(GEN,SA);BU100,101,211,221..RHD..(175T,30T,40T)..(ARL,GEN)199708

main61024-37050iBU10#,111,112,14#,21#,22#..LHD199505-199708

sub91643-80820

main61024-37051iBU10#,111,112,14#,211,212,221,222..LHD199708

main61024-37070iBU211,221,YU210..SA199602-199708

sub91643-80820

main61024-37071iBU211,212,221,222,YU210..SA199708-200008

main61024-37110iBU213,223,RZU100..LHD199908

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37021iBU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI199505-200008

main61027-37031iBU212,222..ARL,SA;BU101,111,14#,211,221,YU210..RHD..(CBR,DSL)200008

W(RADIO ANTENNA)

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37031iRZU100..RHD;BU10#,11#,14#,21#,22#,YU210..ARL,GEN,SA,TAIW199505-200002

main61028-37041iBU222..EUR;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)199505-200002

W(RADIO ANTENNA)

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-37010iBU10#,111,112,14#..LHD199505-199708

main61035-37011iBU10#,111,112,14#,RZU100..LHD199708

main61035-37020iBU21#,22#..LHD199505-199708

main61035-37021iBU21#,22#..LHD199708

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-37010iBU100,101,110,111,14#,RZU100..RHD199505-199708

main61036-37011iBU10#,110,111,14#,RZU100..RHD199708

main61036-37020iBU21#,22#,YU210..RHD199505-199708

main61036-37021iBU211,212,221,222,YU210..RHD200008

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-37010iBU100,101,110,142,212,222..ARL199505

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-37020iBU100,101,110,142,212,222..ARL199505

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-37010iBU100,101,110,142,212,222..ARL199505

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61134-37010iBU100,101,110,142,212,222..ARL199505

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-37010iBU100,101,110,111,14#,21#,22#,RZU100,YU210..RHD199505-199708

main61181-37011iBU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD199708-200008

61182CBRACKET, INSTRUMENT SIDE, LH

main61182-37020iBU10#,111,112,14#,21#,22#..LHD199505-199708

main61182-37021iBU10#,111,112,14#,21#,22#,RZU100..LHD199708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iBU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

main61211-95404iBU100,101,142,211,212..TW1,TW2199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iBU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

main61212-95404iBU100,101,142,211,212..TW1,TW2199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95400iBU100,101,142,211..LHD..(TW1,TW2)199505

main61203-95401iBU100,101,212..(TW1,TW2)..ARL199505

main61203-95402iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

main61231-37020iRZU100..15T;BU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

main61231-95405iBU212..RHD..(GEN,SA)..IV3;BU10#,111,14#,211,221,222,RZU100,YU210..RHD..(GEN,SA)200008

main61231-95406iBU222..EUR;BU212..LHD..40T..TD;BU10#,111,112,14#,211,221..LHD..(DM1,DM6,DM7,T2,T3,T4)199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95401iBU100,101,142,211..LHD..(TW1,TW2)199505-200212

main61204-95402iBU100,101,212..(TW1,TW2)..ARL199505-200212

main61204-95403iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199505-199908

main61232-37020iRZU100..15T;BU212..TD..CBU;BU100,101..ARL..IV3;BU212..RHD..T3..DSL..(ARL,GEN);BU110,142,213,222,223..(DSL,TDEFI)..(ARL,GEN)199505

main61232-95405iBU222..EUR;BU212..LHD..40T..TD;BU10#,111,112,14#,211,221..LHD..(DM1,DM6,DM7,T2,T3,T4)199505-200302

main61232-95406iBU102,142,211,212200302

61261CHANNEL, ROOF DRIP, RH

main61261-37020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

61262CHANNEL, ROOF DRIP, LH

main61262-37020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iBU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iBU10#,11#,14#,21#,22#,RZU100,YU210..DM1,DM6,DM7,T1,T2,T3,T4199505-200008

61579ASILENCER, CAB REAR PILLAR

main61579-37010×2iBU222..LHD..GEN;BU212..30T..TD..IV3;BU102,112,212,213,223,RZU100..LHD..(DSL,EFI,TDEFI)199703

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-37050iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505

main64015-37060iBU111..RHD;BU101..RHD..WT..IV3199505-199511

SAUDI ARABIA & GULF SPEC

main64015-37070iBU102,142..TD..GEN;BU100,101,111,140,141..(20T,25T,30T)..(GEN,SA)199505

main64015-37080iBU213,223199908

main64015-37090iBU222..EUR199902

main64015-37100iBU212..GEN..IV3;BU211,221,YU210..T3200008

THAILAND PACKAGE

main64015-37120iBU212,222..RHD..GEN..IV3199703

main64015-37160iBU212..TD..CBU;BU212,222..RHD..T3..DSL..(ARL,GEN)199505

main64015-95409iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199507-199908

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-37050iBU100,101..ARL..IV3;BU110,142,RZU100..(DM1,T3,T4)..(15T,20T)199505

main64016-37060iBU111..RHD;BU101..RHD..WT..IV3199505-199511

SAUDI ARABIA & GULF SPEC

main64016-37070iBU100,101,111,140,141..(DM1,T1,T3)..GEN199505-199703

main64016-37080iBU111..IV3199505-199703

ALGERIA SPEC

main64016-37090iBU213,223199908

main64016-37100iBU211,221..LHD199505-199508

W(FRONT SEAT BELT=ELR)

main64016-37110iBU212,222..SA199902

main64016-37130iBU212,222..RHD..GEN..IV3199703

main64016-37170iBU212..TD..CBU;BU212,222..RHD..T3..DSL..(ARL,GEN)199505

main64016-95413iBU212..LHD..DSL;BU212..30T..TD..IV3;BU222..LHD..(GEN,TAIW)199507-199908

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-25020iBU142..TW1199610

main64103-37021iBU100,101..ARL..CBU199505

main64103-37031iBU100,101..175T..GEN199505

main64103-37100iBU211,212..TW1199505

main64103-95401iBU212..(GEN,SA,TAIW)..IV3;BU102,142,213,223,YU210..(CBR,TD,TDEFI)..(GEN,SA);BU100,101,111,140,141,211,221,222..(DM1,DM6,T1,T3)..(GEN,SA,TAIW)199505-200008

main64103-95403iRZU100..15T;BU101..ARL..IV3199908-199911

main64103-95404iBU222..ARL,EUR;BU212..TD..CBU;BU212..RHD..T3..DSL..(ARL,GEN)199505

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-25020iBU142..TW1199610

main64104-37021iBU100,101..ARL..CBU199505

main64104-37031iBU100,101..175T..GEN199505

main64104-37100iBU211,212..TW1199505

main64104-95401iBU212..(GEN,SA,TAIW)..IV3;BU102,142,213,223,YU210..(CBR,TD,TDEFI)..(GEN,SA);BU100,101,111,140,141,211,221,222..(DM1,DM6,T1,T3)..(GEN,SA,TAIW)199505-200008

main64104-95403iBU111..RHD;BU101..RHD..WT..IV3199505-199511

W(FRONT SEAT BELT=ELR)

main64104-95404iBU211,221..LHD..T3;BU212..LHD..40T..TD199508

W(FRONT SEAT BELT=ELR)

main64104-95415iBU100,111,140,141..LHD..(DM1,T3)..GEN199505-199511

SAUDI ARABIA & GULF SPEC

main64104-95416iBU211,221..LHD..T3199505

SAUDI ARABIA & GULF SPEC & W(FRONT SEAT BELT=ELR)

64163ACOVER, BACK CORNER, INNER

main64163-37010-B0×2iBU212,222..SA;BU142,212..LHD..(25T,40T)..TD..GEN;BU100,101,111,140,141,211,221,YU210..(DM1,T1,T3,TW1,TW2)..(GEN,SA)199610

BLUISH GRAY,TRIM1#

main64163-37020-B0×2iBU100,111,140,141..LHD..(DM1,T3,TW2)..GEN199505-199610

SAUDI ARABIA & GULF SPEC,BLUISH GRAY,TRIM1#

main64163-95900iBU111..IV3199505-200212

LH

main64163-95901×2iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199610-199908

main64163-95902iBU111..IV3199505-200212

ALGERIA SPEC

9010506109

main90105-06109

9010508341

main90105-08341

9016260005

main90162-60005

9018906006

main90189-06006

9046706017B0

main90467-06017B0

904670702901

main90467-0702901

9164380820

main91643-80820

9165260614

main91652-60614

36 parts on this diagram · 2 diagrams in section
