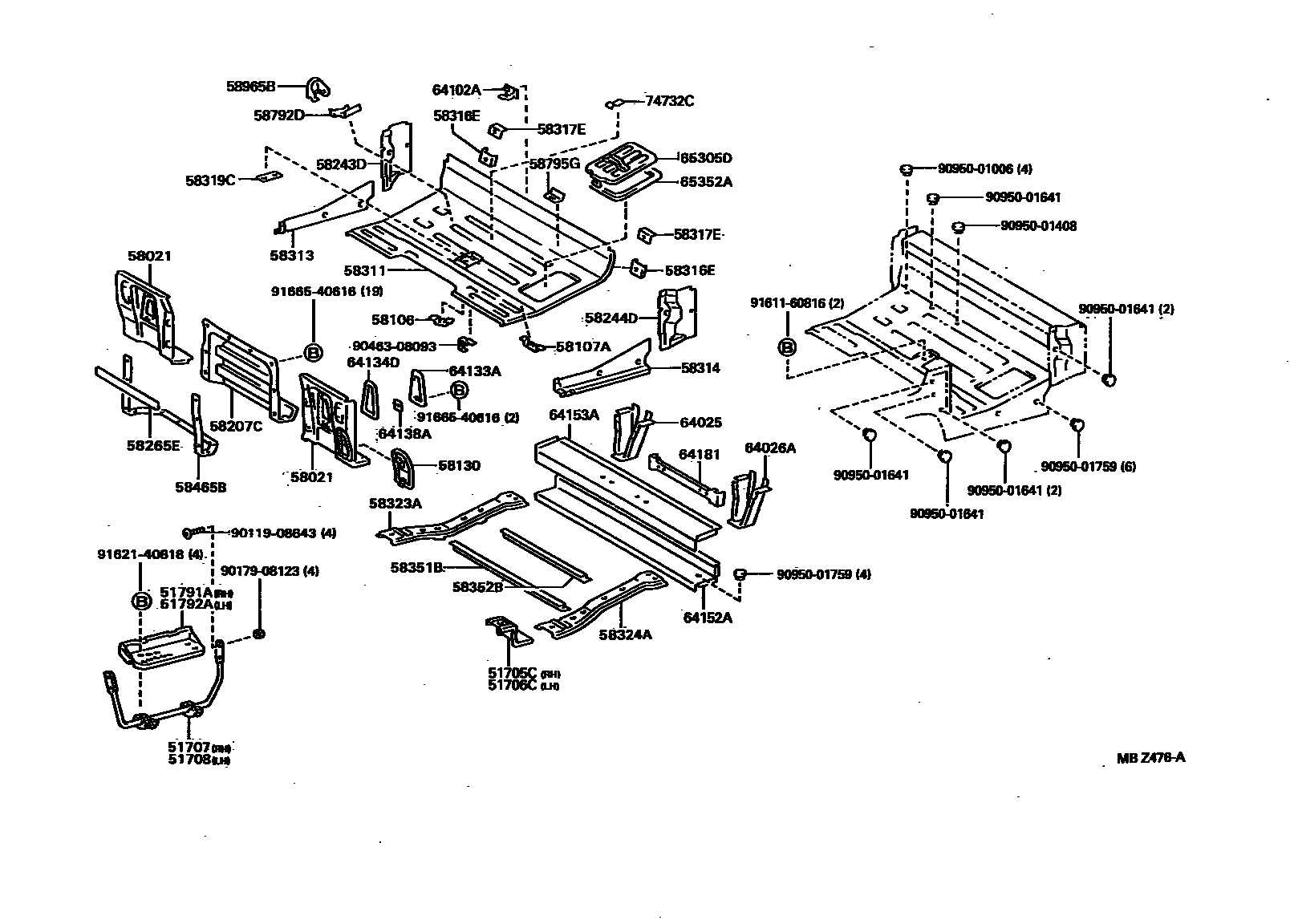

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51705CBRACKET SUB-ASSY, CAB REAR MOUNTING, RH

main51705-95400iBU100,101,142,211,212..TW1,TW2199505

51706CBRACKET SUB-ASSY, CAB REAR MOUNTING, LH

main51706-95400iBU100,101,142,211,212..TW1,TW2199505

51707STEP SUB-ASSY, RH

main58307-95403iBU100,101,142,211,212..TW1,TW2199505

51708STEP SUB-ASSY, LH

main58308-95400iBU100,101,142,211,212..TW1,TW2199505

51791APANEL, STEP, REAR RH

main51791-95A00iBU100,101,142,211,212..TW1,TW2199505

sub51791-37030

51792APANEL, STEP, REAR LH

main51791-95A00iBU100,101,142,211,212..TW1,TW2199505

sub51791-37030

58021PANEL SUB-ASSY, HEADER

main58021-37010iBU100,101,142..TW1,TW2199505

RH

main58021-37030iBU211,212..TW1199505

RH

main58022-37010iBU100,101,142..TW1,TW2199505

LH

main58022-37060iBU211,212..TW1199505

LH

58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58106-95A00iBU100,101,142..TW1,TW2199505

58107ABRACKET SUB-ASSY, CLAMP SET, NO.1

main58107-95A00iBU100,101,142..TW1,TW2199505

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iBU100,101,142,211,212..TW1,TW2199505

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-37020iBU100..175T199505-199606

sub58207-37021

sub58327-37021

main58207-37021iBU100,101,142..TW1,TW2199606

main58207-92607iBU211,212..TW1199505

58243DPANEL, FLOOR SIDE, REAR RH

main58043-37010iBU100,101,142..TW1,TW2199505

main58243-95415iBU211,212..TW1199505

58244DPANEL, FLOOR SIDE, REAR LH

main58044-37010iBU100,101,142..TW1,TW2199505

main58244-95411iBU211,212..TW1199505

58265EPACKING, TRANSMISSION COVER, C

main58265-95400iBU100,101,142..TW1,TW2199505

58311PAN, REAR FLOOR

main58311-92647iBU211,212..TW1199505

main58311-95417iBU100,101,142..TW1,TW2199505

58313PANEL, REAR FLOOR SIDE, RH

main58313-95402iBU100,101,142,211,212..TW1,TW2199505

58314PANEL, REAR FLOOR SIDE, LH

main58314-95403iBU100,101,142,211,212..TW1,TW2199505

58316ERETAINER, REAR SEAT SET

main58316-95402iBU100,101,142,211,212..TW1,TW2199505

58317ERETAINER, REAR SEAT, NO.2

main58317-95402iBU100,101,142,211,212..TW1,TW2199505

58319CANCHOR, REAR SEAT

main58319-95400iBU100,101,142..TW1,TW2199505

58323ABRACE, CENTER TO REAR MOUNTING, RH

main58323-92602iBU211,212..TW1199505

main58323-95403iBU100,101,142..TW1,TW2199505

58324ABRACE, CENTER TO REAR MOUNTING, LH

main58324-92602iBU211,212..TW1199505

main58324-95403iBU100,101,142..TW1,TW2199505

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-92600iBU211,212..TW1199505

main58351-95406iBU100,101,142..TW1,TW2199505

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58352-92601iBU211,212..TW1199505

main58352-95402iBU100,101,142..TW1,TW2199505

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-92601iBU100,101,142..TW1,TW2199505

main58465-92603iBU211,212..TW1199505

58792DSUPPORT, JACK

main58792-95401iBU100,101,142..TW1,TW2199505

main58792-95A00iBU211,212..TW1199505

58795GPLATE, JACK CLAMP

main58795-95500iBU100,101,142,211,212..TW1,TW2199505

58965BHOLDER, JACK

main58965-95400iBU100,101,142,211,212..TW1,TW2199505

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-92602iBU211,212..TW1199505

main64025-95401iBU100,101,142..TW1,TW2199505

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64025-95401iBU100,101,142..TW1,TW2199505

main64026-92601iBU211,212..TW1199505

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-92601iBU211,212..TW1199505

main64102-95403iBU100,101,142..TW1,TW2199505

64133ACOVER, HEADER PANEL

main64133-95400iBU100,101,142,211,212..TW1,TW2199505

64134DPACKING, HEADER PANEL COVER

main64134-95400iBU100,101,142,211,212..TW1,TW2199505

64138ASEAL, HEADER PANEL COVER

main64138-95400iBU211,212..TW1199505

64152AFRAME, BACK, LOWER

main64152-92603iBU211,212..TW1199505

main64152-95402iBU100,101,142..TW1,TW2199505

64153AREINFORCEMENT, BACK FRAME

main64153-92600iBU211,212..TW1199505

main64153-95403iBU100,101,142..TW1,TW2199505

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-92604iBU211,212..TW1199505

main64181-95401iBU100,101,142..TW1,TW2199505

65305DCOVER SUB-ASSY, BATTERY HOLE

main65305-95A03iBU100,101,142,211,212..TW1,TW2199505

65352APACKING, BATTERY HOLE COVER, NO.2

main65352-95A02iBU100,101,142,211,212..TW1,TW2199505

74732CBRACKET, TOOL BAG SET BAND

main74732-95600iBU100,101,142,211,212..TW1,TW2199505

9011908643

main90119-08643

9017908123

main90179-08123

9046308093

main90463-08093

9095001006

main90950-01006

9095001408

main90950-01408

9095001641

main90950-01641

9095001759

main90950-01759

9161160816

main91611-60816

9162140818

main91621-40818

9166540616

main91665-40616

50 parts on this diagram · 2 diagrams in section
