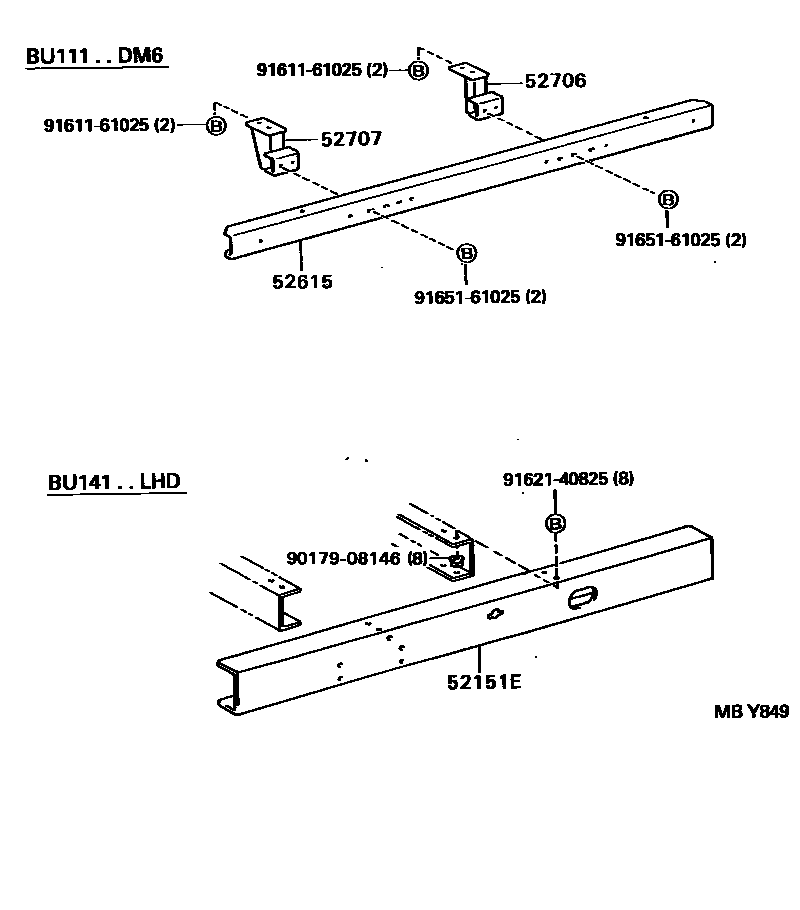

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52151EBAR, REAR BUMPER

main52105-37010iBU212..CBU199703

main52151-92800iBU141..LHD199505

ALGERIA SPEC

52615ABSORBER, REAR BUMPER ENERGY

main52615-93100iBU111..IV3199505

52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-93100iBU111..IV3199505

52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-93100iBU111..IV3199505

9017908146

main90179-08146

9161161025

main91611-61025

9162140825

main91621-40825

9165161025

main91651-61025

8 parts on this diagram · 2 diagrams in section
