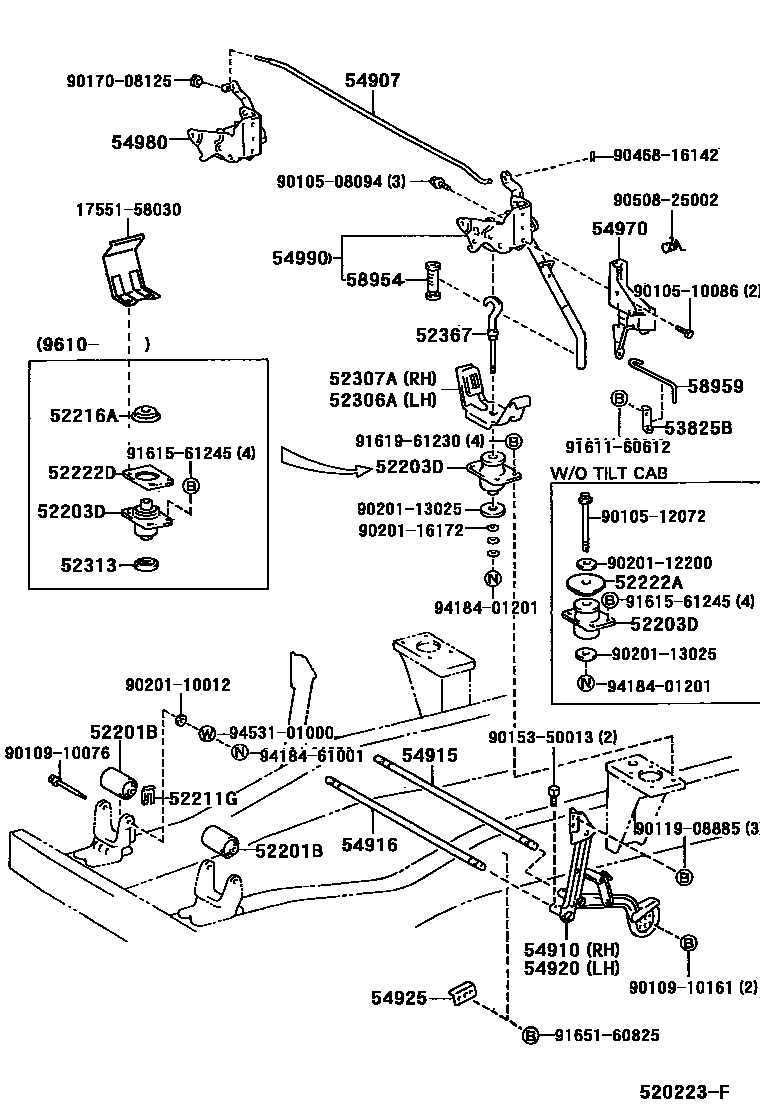

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37020iBU10#,11#,14#,RZU100199505

main52201-37030iBU21#,22#,YU210199505-200008

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-36050iBU21#,22#,YU210..GEN,SA,TAIW199505-200008

main52203-37010iBU212..ARL;BU10#,11#,14#,RZU100199505

main52203-37020iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199703-199904

sub52203-37030

main52203-37030iBU212..DSL..GEN..IV3199904-199906

52211GSPACER, CAB FRONT MOUNTING

main52211-36020iBU10#,11#,14#,21#,22#,RZU100,YU210199505-200008

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-37010iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199703-199906

52222ASPACER, CAB REAR MOUNTING, UPPER

main52222-36030iBU100..CBU;BU100..GEN..IV3;BU101..ARL..CBU;BU142,211,212..TW1;BU101,111,140,141..(DM1,T1,T3,TW2)..(GEN,SA)199505

52222DSPACER, CAB REAR MOUNTING, UPPER

main52222-37010iBU102,RZU100..15T;BU102,142..RHD..GEN199712

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-36020iBU10#,11#,14#,21#,22#,YU210..DM1,DM6,T1,T2,T3199505-199610

sub52306-36021

main52306-36021iBU211,212,221,222,YU210..T3;BU10#,11#,14#,213,223,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,EUR,GEN,TAIW)199610-200008

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-36020iBU10#,11#,14#,21#,22#,YU210..DM1,DM6,T1,T2,T3199505-199610

sub52307-36021

main52307-36021iBU211,212,221,222,YU210..T3;BU10#,11#,14#,213,223,RZU100..(DM1,DM6,DM7,T1,T2,T3,T4)..(ARL,EUR,GEN,TAIW)199610-200008

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37020iBU222..LHD..GEN;BU212..30T..TD..IV3;BU212..DSL..GEN..IV3199703-199906

52367HOOK, CAB REAR MOUNTING

main52367-36030iBU211,212,222,YU210..T3;BU10#,111,14#,213,221,223,RZU100..(DM1,DM6,T1,T2,T3,T4)..(ARL,EUR,GEN)199505-200008

53825BBRACKET, REAR LOCK HANDLE ROD

main53825-95401iBU21#,22#,YU210..T3199505-200008

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-95400iBU101..ST..CBU;BU101..RHD..IV3;BU140,141..LHD..GEN;BU100,111,141..(DM1,T3)..(20T,30T)..GEN199505-199703

W(TILT CAB)

main54907-95401iBU21#,22#,YU210..T3199505-200008

54910ARM ASSY, TILT CAB SPRING SUPPORT, RH

main54910-37010iBU101..ST..CBU;BU101,141..RHD..(20T,30T)..IV3199505-199609

W(TILT CAB)

main54910-37011iBU101..ST..CBU;BU101,141..RHD..(20T,30T)..IV3199609-199610

W(TILT CAB)

main54910-37020iBU141..LHD199505-199609

W(TILT CAB)

main54910-37021iBU141..LHD199609

W(TILT CAB)

main54910-37030iBU21#,22#,YU210..T3199505-199609

main54910-37031iBU21#,22#,YU210..T3199609-200008

main54910-37050iBU101..T1..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199610

W(TILT CAB)

54915SPRING, TILT CAB, NO.1

main54915-37020iBU101..WT..CBU;BU101..LHD..IV3;BU141..RHD..25T;BU100,110,111,140,142..(20T,25T)..(ARL,GEN)199505-199609

W(TILT CAB)

main54915-37021iBU141..LHD;BU101..ST..CBU;BU101,141..RHD..(20T,30T)..IV3199609-199610

W(TILT CAB)

main54915-37030iBU212,222..TAIW199505-199609

main54915-37031iBU212..LHD..DSL;BU213,222,223..LHD;BU212..30T..TD..IV3199609

main54915-37031iBU212,222..RHD..GEN..IV3199708

HONG KONG PACKAGE

main54915-37040iBU102,112,140,142..EUR,TAIW199505-199609

main54915-37041iBU102,112..DSL;BU140,142..T3..EUR199609

main54915-37060iBU21#,221,YU210..T3..(ARL,GEN,SA)199505-199609

main54915-37061iBU212,222..RHD..T3;BU211,221,YU210..T3;BU212..LHD..40T..TD199609-200008

main54915-37070iBU101..ARL..IV3;BU101..RHD..WT..CBU;BU141..RHD..25T..GEN;BU100,102,110,111,140,142,RZU100..RHD..WT199610

W(TILT CAB)

54916SPRING, TILT CAB, NO.2

main54916-37010iBU101..WT..CBU;BU101..LHD..IV3;BU141..RHD..25T;BU100,110,111,140,142..(20T,25T)..(ARL,GEN)199505-199609

W(TILT CAB)

main54916-37011iBU141..LHD199609-199610

W(TILT CAB)

main54916-37020iBU212,222..TAIW199505-199609

main54916-37021iBU212,222..RHD..GEN..IV3199708

HONG KONG PACKAGE

main54916-37021iBU212..LHD..DSL;BU213,222,223..LHD;BU212..30T..TD..IV3199609

main54916-37030iBU102,112,140,142..EUR,TAIW199505-199609

main54916-37031iBU102,112..DSL;BU140,142..T3..EUR199609

main54916-37050iBU21#,221,YU210..T3..(ARL,GEN,SA)199505-199609

main54916-37051iBU211,212,221,222,YU210..T3..(ARL,GEN,SA)199609-200008

main54916-37060iBU101..ARL..IV3;BU101..RHD..WT..CBU;BU141..RHD..25T..GEN;BU100,102,110,111,140,142,RZU100..RHD..WT199610

W(TILT CAB)

54920ARM ASSY, TILT CAB SPRING SUPPORT, LH

main54920-37010iBU101..RHD..WT..CBU;BU100,110,111,14#..RHD..(20T,25T)199505-199609

W(TILT CAB)

main54920-37011iBU101..RHD..WT..CBU;BU100,110,111,14#..RHD..(20T,25T)199609-199610

W(TILT CAB)

main54920-37030iBU10#,111,112,140,142..LHD..(20T,25T,30T)199505-199609

W(TILT CAB)

main54920-37031iBU141..LHD199609

W(TILT CAB)

main54920-37040iBU21#,22#,YU210..T3199505-199609

main54920-37041iBU21#,22#,YU210..T3199609-200008

main54920-37080iBU101..T1..CBU;BU101,141..RHD..(20T,30T)..GEN..IV3199610

W(TILT CAB)

54925RETAINER, TILT CAB SPRING

main54925-37020iBU10#,14#,21#,22#,RZU100,YU210199505-200008

RH

main54926-37010iBU10#,14#,21#,22#,RZU100,YU210199505-200008

LH

54970LATCH ASSY, TILT CAB STOPPER

main54970-95400iBU101..T3..CBU;BU101..ARL..IV3;BU101..LHD..IV3;BU141..RHD..25T..GEN;BU100,102,11#,140,142,RZU100..DM1,DM6,DM7,T2,T3,T4199505

W(TILT CAB)

main54970-95401iBU21#,22#,YU210..T3199505-200008

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-95400iBU101..WT..CBU;BU212..TD..CBU;BU101..LHD..IV3;BU212..RHD..T3..DSL;BU140,141,222..RHD..(25T,40T)..DSL;BU111,142,211,221,YU210..(DM6,T3)..(GEN,SA)199505-200008

W(TILT CAB)

main54980-95400iBU212,222..DSL..SA;BU102,142..RHD..GEN200005

main54980-95401iBU101..ARL..IV3;BU213,223,RZU100..LHD199908-199911

main54980-95401iBU221..GEN;BU211..LHD..30T;BU211..40T..GEN..IV3;BU211..LHD..40T..CBU199505-199708

W(FRONT SEAT BELT=ELR)

main54980-95401iBU221..GEN;BU211..LHD..30T;BU211..40T..GEN..IV3;BU211..LHD..40T..CBU199505-199511

HONG KONG SPEC & W(TILT CAB)

main54980-95401iBU221..GEN;BU211..LHD..30T;BU211..40T..GEN..IV3;BU211..LHD..40T..CBU199505-199511

SAUDI ARABIA & GULF SPEC & W(TILT CAB)

main54980-95401iBU212,222..LHD;BU100,102,110,112,140,142..(DM1,T2,T3)..(ARL,EUR,TAIW)199505-199703

W(FRONT SEAT BELT=ELR & TILT CAB)

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37010iBU21#,22#,YU210..T3199510-200008

main54990-95403iBU101..ST..CBU;BU101..RHD..IV3;BU140,141..LHD..GEN;BU100,111,141..(DM1,T3)..(20T,30T)..GEN199505-199703

W(TILT CAB)

main54990-95404iBU21#,22#,YU210..T3199505-199510

sub54990-37010

58954COVER, REAR LOCK HANDLE GRIP

main58954-95400iBU101..T3..CBU;BU101..ARL..IV3;BU101..LHD..IV3;BU111,141..RHD..(20T,25T)..GEN;BU102,111,142,21#,22#,RZU100,YU210..DM6,T3,T4199703-200008

main58954-95400iBU101..ST..CBU;BU101..RHD..IV3;BU140,141..LHD..GEN;BU100,111,141..(DM1,T3)..(20T,30T)..GEN199505-199703

W(TILT CAB)

58959ROD, REAR LOCK, HANDLE LATCH

main58959-95402iBU21#,22#,YU210..T3199505-200008

1755158030INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-58030

9010508094

main90105-08094

9010510086

main90105-10086

9010512072

main90105-12072

9010910076

main90109-10076

9010910161

main90109-10161

9011908885

main90119-08885

9015350013

main90153-50013

9017008125

main90170-08125

9020110012

main90201-10012

9020112200

main90201-12200

9020113025

main90201-13025

9020116172

main90201-16172

9046816142

main90468-16142

9050825002

main90508-25002

9161160612

main91611-60612

9161561245

main91615-61245

9161961230

main91619-61230

9165160825

main91651-60825

9418401201

main94184-01201

9418461001

main94184-61001

9453101000

main94531-01000

44 parts on this diagram · 2 diagrams in section
