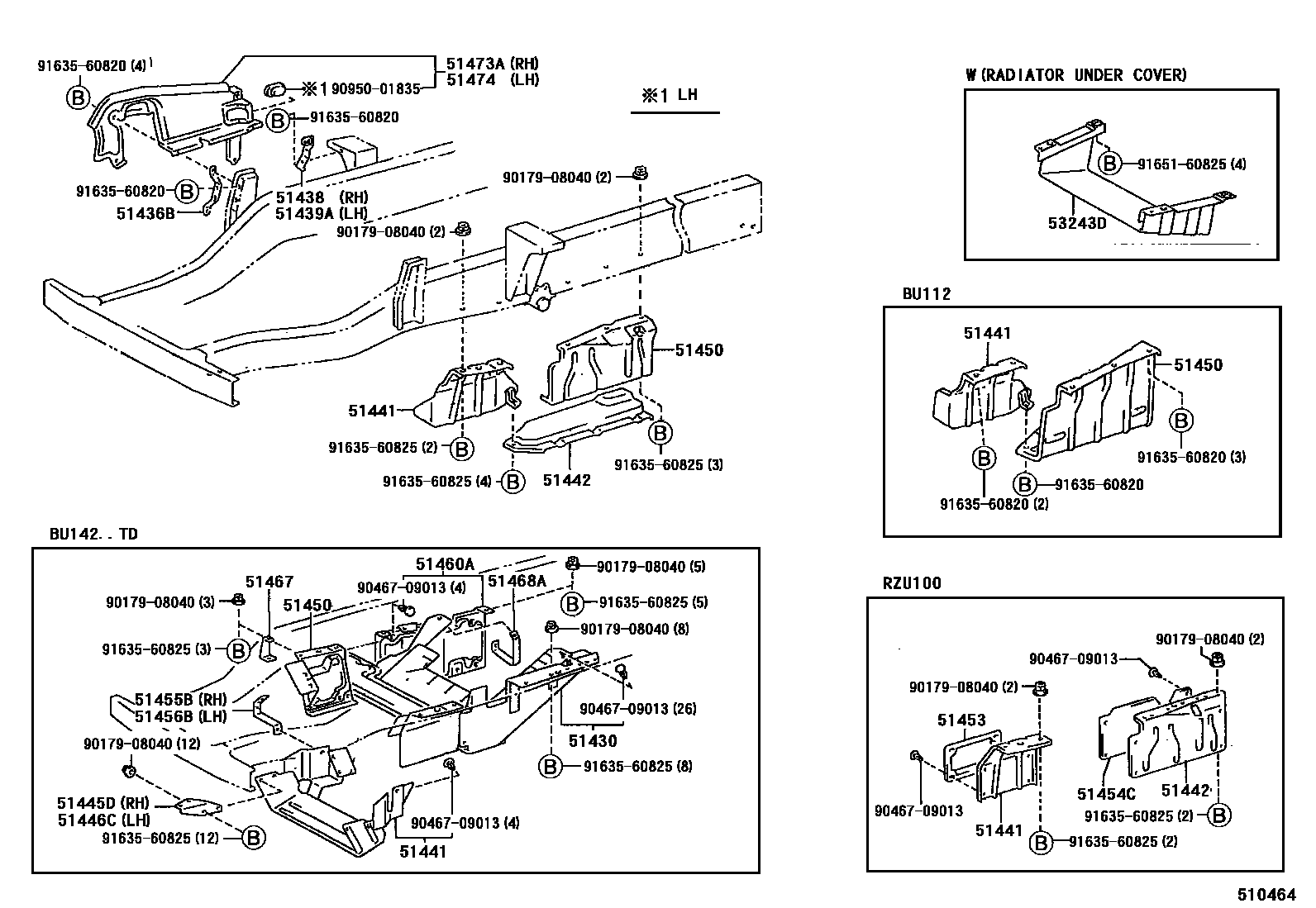

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SIDE,UNDER COVER 0002 1SIDE,UNDER COVER 0003 1HOOK 0004 1

51430COVER ASSY, ENGINE UNDER, CENTER

main51430-37010iBU142..EUR199605-199704

sub51430-37011

main51430-37011iBU142..EUR199704

main51430-37020iBU101..ARL199908

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37010iBU142..EUR;BU102,142..RHD..GEN199605

NO.1

main51436-37010iBU10#,11#,14#,RZU100..DSL,EFI199505

main51436-37030iBU222;BU212..RHD;BU212..30T..GEN..IV3199505-200008

main51436-37040iBU142..25T..GEN199808

main51436-37040iBU142..EUR;BU102,142..RHD..GEN199605

NO.2

51438BRACKET, ENGINE SIDE COVER, NO.2 RH

main51438-37010iBU10#,11#,14#,RZU100199505

main51438-37040iBU222;BU212..RHD;BU212..30T..GEN..IV3199505-200008

51439ABRACKET, ENGINE SIDE COVER, NO.2 LH

main51439-37010iBU10#,11#,14#,RZU100199505

51441COVER, ENGINE UNDER, NO.1

main51407-36050iRZU100..RHD199703-200009

main51407-37040iBU102199703-199906

main51440-37030iBU142..EUR199605

51442COVER, ENGINE UNDER, NO.2

main51405-37010iBU102199703-199708

main51443-36023iRZU100..RHD199703-200009

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-37060iBU142..EUR199605

51446CBRACKET, ENGINE UNDER COVER, LH

main51446-37060iBU142..EUR199605

51450COVER ASSY, ENGINE UNDER, REAR

main51406-37030iBU102199703-199708

main51450-37030iBU142..EUR199605-199908

main51450-37040iBU101..ARL199908

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-36020iRZU100..RHD199703-200009

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-36011iRZU100..RHD199703-200009

51455BBRACKET, ENGINE UNDER COVER, REAR RH

main51455-37010iBU142..EUR199605

51456BBRACKET, ENGINE UNDER COVER, REAR LH

main51456-37010iBU142..EUR199605

51460ACOVER ASSY, TRANSMISSION UNDER, RH

main51460-37010iBU101..ARL;BU142..EUR199605

51467RETAINER, ENGINE UNDER COVER

main51467-37010iBU101..ARL;BU142..EUR199605

51468ARETAINER, ENGINE UNDER COVER, NO.2

main51468-37010iBU142..EUR199605

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51043-37010iBU102,112,142..EUR,TAIW199505-199610

main51043-37050iBU21#,22#,YU210199505-200008

main51043-37080iBU100,110,142,RZU100..RHD199610-199708

sub51043-37081

main51043-37081iRZU100..RHD;BU100,101,110,142..ARL199708

main51043-37090iBU102,112,RZU100..LHD199703

main51473-37010iBU100,101,111,14#..LHD..GEN199505-199610

main51473-37030iBU211,221,YU210;BU212..LHD..40T199505-199705

main51473-37080iBU101,102,111,14#..RHD..(GEN,SA)199610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51044-37050iBU21#,22#,YU210199505-200008

main51470-37010iBU102,112,142..EUR,TAIW199505-199610

main51470-37020iBU100,101,111,140,141..GEN199505-199610

main51470-37040iBU100,110,142,RZU100..RHD199610-199708

sub51470-37041

main51470-37041iRZU100..RHD;BU100,101,110,142..ARL199708

main51470-37050iBU101,102,111,14#..RHD..(GEN,SA)199610

main51470-37060iBU102,112,RZU100..LHD199703

main51474-37030iBU211,221,YU210;BU212..LHD..40T199505-199705

53243DGUIDE, LOWER WIND

main53243-36070iBU102..ST;BU100,101,140,141..GEN199505-199508

9017908040

main90179-08040

9046709013

main90467-09013

9095001835

main90950-01835

9163560820

main91635-60820

9163560825

main91635-60825

9165160825

main91651-60825

25 parts on this diagram · 4 diagrams in section
