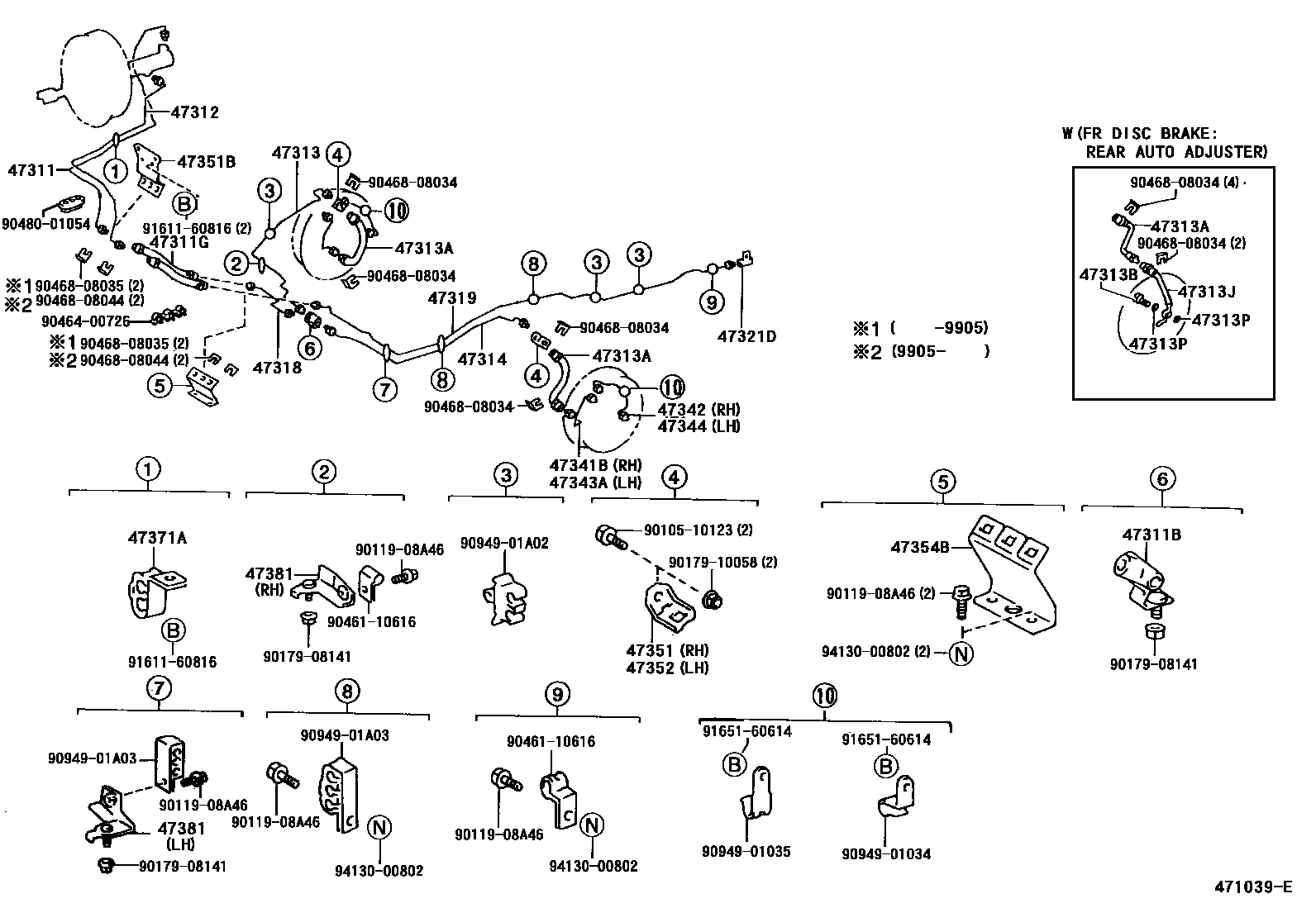

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

47311TUBE, FRONT BRAKE, NO.1

main47311-37030iBU211..RHD..30T..GEN199505

main47311-37040iBU211..30T..SA;BU211..RHD..40T;BU212,221,222,YU210..RHD199505-200008

main47311-37040iBU211..RHD..30T..GEN199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47311-37050iBU211..LHD..30T199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47311-37050iBU222..EUR;BU211..LHD..40T;BU213,221,223..LHD;BU212..LHD..40T..TD199505-199905

main47311-37070iBU211..LHD..30T199505

main47311-37090iBU100,101..LHD..(175T,20T)199505

main47311-37100iBU100,101..LHD..WT..TS199505-199908

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

main47311-37100iBU102,111,14#,RZU100..LHD..(15T,20T,25T)..(GEN,TAIW)199505

main47311-37110iBU112;BU101,102..30T;BU140,142..EUR199505

main47311-37120iBU100,101..RHD199505-199610

main47311-37121iBU10#..RHD..(ARL,GEN)..TS199610

main47311-37130iBU100,101..RHD..WT199505-199610

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47311-37140iBU141..30T199505-199610

main47311-37141iBU101,141..SA;BU141,142,RZU100..(20T,30T)..GEN199610

main47311-37150iBU100,101..RHD..WT..(ARL,GEN)..TS199610-199906

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

main47311-37150iBU101..ARL..IV3199908

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-12005iBU10#,11#,14#,RZU100199505

main90904-13022iBU21#,22#,YU210199505-200008

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33655iBU10#,111,112,14#..LHD199505-199812

sub96932-33657

main96932-33657iBU10#,111,112,14#,RZU100..LHD199812

main96932-33855iBU100,101,110,111,14#,RZU100..RHD199610-199812

sub96932-33857

main96932-33857iBU10#,110,111,14#,RZU100..RHD199812

main96932-34305iBU21#,22#,YU210199505-199812

sub96932-34307

main96932-34307iBU21#,22#,YU210199812-200008

47312TUBE, FRONT BRAKE, NO.2

main47321-37030iBU211..RHD..30T..GEN199505

main47321-37040iBU211..SA;BU211..RHD..40T;BU212,221,222,YU210..RHD199505-200008

main47321-37040iBU211..RHD..30T..GEN199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47321-37050iBU211..LHD..40T;BU212,213,22#..LHD199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47321-37070iBU211..LHD..30T199505

main47321-37090iBU100,101..LHD..(175T,20T)199505

main47321-37100iBU102,111,14#,RZU100..LHD..(15T,20T,25T)..(GEN,TAIW)199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

main47321-37110iBU112;BU101,102..30T;BU140,142..EUR199505

main47321-37120iBU100,101..RHD199505-199610

main47321-37121iBU10#..RHD..(ARL,GEN)..TS199610

main47321-37130iBU110,111,14#..RHD..(20T,25T)199505-199610

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47321-37140iBU141..30T199505-199610

main47321-37141iBU101,141..SA;BU141,142,RZU100..(20T,30T)..GEN199610

main47321-37150iBU100,101..RHD..WT..(ARL,GEN)..TS199610-199905

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER)

main47321-37150iBU111,14#..RHD..(20T,25T)..(ARL,GEN)199905-199906

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main47321-37150iBU101..ARL..IV3199908

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(TANDEM BOOSTER)

main47321-37150iBU100,110,111..RHD..(DM1,T2);BU14#..RHD..(20T,25T)..(ARL,GEN)199610-199906

47313TUBE, FRONT BRAKE, NO.3

main47313-37030iBU21#,22#,YU210199505-200008

main47313-37060iBU140,142..EUR199505

main47313-37080iRZU100..RHD;BU10#,14#..ARL,GEN,SA,TAIW199505

main47313-37090iBU11#199505

main47313-37340iRZU100..15T199908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02470iBU100,112..DM7,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-199908

main90947-02492iBU141..25T;BU142..ARL,EUR;BU100,101,110,140..(DM1,T3)..WT199505-199812

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main90947-02566iBU21#,YU210..25T,30T199505-199812

main90947-02744iBU211..30T..GEN;BU212..30T..ARL199505-199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main90947-02857iBU10#,14#,RZU100..(DM6,T3)..WT..(ARL,GEN,TAIW)199505-199906

main90947-02859iBU102..WT..15T199712-199908

RH

main90947-02860iBU102..WT..15T199712-199908

LH

main90947-02A60iBU100..IV3..TS199812-199908

W(FR DISC BRAKE:RR AUTO ADJUSTER)

sub90947-02L60

main90947-02A60iBU141..SA199902-199905

sub90947-02L60

main90947-02A61iBU212..30T..GEN..IV3199812-199906

sub90947-02B23

main90947-02B17iRZU100..15T199908-200001

RH

main90947-02B18iRZU100..15T199908-200001

LH

main90947-02B19iBU102,RZU100..RHD;BU101,14#..T3..WT..(ARL,GEN)199905

main90947-02B20iBU101..T3..ST;BU101,111..DM1,DM6,T1,T2,TW2199905

main90947-02B21iBU222..EUR;BU212..LHD..40T..TD;BU212,222..RHD..40T;BU211,213,221,223..40T199905-200008

main90947-02B22iBU211..30T..GEN;BU212..30T..ARL199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main90947-02B23iBU212..RHD..(25T,30T);BU211,213,223,YU210..30T199905

main90947-02L59iRZU100..15T200001

main90947-02L60iBU141..25T;BU101..T3..WT;BU142..ARL,EUR199905

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main96950-34205iBU222..LHD..GEN;BU212..40T..DSL..GEN199505-199908

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

main90401-10043iBU102,RZU100..WT..15T199712-200001

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02521iBU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

main96940-32255iRZU100..15T200001

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10017iBU102,RZU100..WT..15T199712-200001

main90430-10035iBU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T)199505

W(FR DISC BRAKE:RR AUTO ADJUSTER);VENEZUELA SPEC

47314TUBE, FRONT BRAKE, NO.4

main47314-37030iBU211,212,221,222,YU210..ARL,GEN,SA,TAIW199505-200008

main47314-37070iBU140,142..EUR199505-199610

main47314-37080iBU11#199505

main47314-37090iRZU100..RHD;BU10#,14#..ARL,GEN,TAIW199505

main47314-37120iBU101,141,142..EUR,SA199610

main47314-37160iBU222..EUR199902

main47314-37350iRZU100..15T199908

47318TUBE, FRONT BRAKE, NO.8

main47312-37020iBU211,212,221,222,YU210..RHD199505-200008

main47312-37030iBU21#,22#..LHD199505

main47312-37040iBU10#,110,111,14#,RZU100..RHD199505

main47312-37050iBU10#,111,112,14#,RZU100..LHD199505

47319TUBE, FRONT BRAKE, NO.9

main47322-37020iBU21#,22#..LHD199505

main47322-37030iBU212,222..RHD;BU211..30T..SA;BU211,221..RHD..GEN199505

main47322-37050iBU10#,14#..LHD..(GEN,TAIW)199505

main47322-37060iBU111,112..LHD199505

main47322-37070iBU101,140,142..EUR,SA199505-199805

main47322-37100iBU10#,14#,RZU100..RHD..(ARL,GEN)199505

main47322-37110iBU110,111..RHD199505

main47322-37150iBU211..40T..SA;BU221,YU210..SA199505-200008

main47322-37170iBU101,141..SA199805

main47322-37381iRZU100..15T199908

47321TUBE, REAR BRAKE, NO.1

main47325-36150iBU211..LHD..30T199505

W(LSPV)

main47325-36160iBU212,222..40T..(ARL,EUR,SA)199505-200008

main47325-36160iBU211,221..LHD..40T;BU212,222..RHD..GEN..IV3199505-199808

W(LSPV)

main47325-36171iBU101..30T;BU142..20T,25T;BU100,101,140,141..(ARL,EUR,SA)..IV3;BU102,RZU100..(DM6,T3)..WT..(DSL,EFI)199505

W(FRONT DISC BRAKE:REAR AUTO ADJUSTER);W(LSPV)

main47325-36280iBU10#..ST199505

main47325-36450iBU102,RZU100..WT..(15T,20T)..TB199505

main47325-37010iBU211,213..GEN;BU212..(GEN,TAIW)..IV3199505

main47325-37020iBU22#..GEN,TAIW199505

main47325-37030iBU102..TD;BU100,101..WT..GEN..TS199505

main47325-37040iBU142..30T;BU140,141..GEN199505

main47325-37050iBU111..IV3199505

main47325-37080iBU111..CBU199505

main47325-37120iBU110,112199505-199703

sub47325-37130

main47325-37130iBU110,112199703-199908

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-12049iBU22#..ARL,GEN,SA,TAIW199505-200008

main90904-12016iBU222..EUR199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36070iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47341-37010iBU21#,22#..40T199505

main47341-37020iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47342-36060iBU102,RZU100..WT..15T199712-200001

main47342-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47342-37050iBU21#,22#..40T199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36070iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47343-37020iBU21#,22#..40T199505

main47343-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iBU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB199505-200212

main47342-37030iBU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(DM1,DM6,DM7,T3,TW1)..WT..(20T,25T,30T)..(ARL,GEN,TAIW)199505

main47342-37050iBU21#,22#..40T199505

main47344-36060iBU102,RZU100..WT..15T199712-200001

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-36131iBU11#199505

main47351-37050iBU10#,14#,RZU100199505

main47351-37090iBU21#,22#..40T199505

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-37030iBU21#,22#;BU100,101,110,111,14#,YU210..RHD199505-200008

main47351-37040iBU10#,111,112,14#,RZU100..LHD199505

main47351-37120iBU101..RHD;BU100,102,111,14#,RZU100..RHD..(DM1,DM6,T3,TW2)199610-199906

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47351-36131iBU11#199505

main47352-37020iBU10#,14#,RZU100199505

main47352-37040iBU21#,22#..40T199505

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37010iBU21#,22#,YU210199505-200008

main47354-37020iBU10#,110,111,14#,RZU100..RHD199505

main47354-37030iBU10#,111,112,14#,RZU100..LHD199505

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01188iBU10#,11#,14#,21#,22#,RZU100,YU210199505-199908

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-36110iBU101,140,142..EUR,SA199505

RH

main47381-37020iBU10#,14#199505-199605

LH

main47381-37030iBU141,RZU100..DM6,T3;BU10#,140,142..ARL,GEN,TAIW199505

RH

9010510123

main90105-10123

9011908A46

main90119-08A46

9017908141

main90179-08141

9017910058

main90179-10058

9046110616

main90461-10616

9046400726

main90464-00726

9046808034

main90468-08034

9046808035

main90468-08035

9046808044

main90468-08044

9048001054

main90480-01054

9094901034

main90949-01034

9094901035

main90949-01035

9094901A02

main90949-01A02

9094901A03

main90949-01A03

9161160816

main91611-60816

9165160614

main91651-60614

9413000802

main94130-00802

41 parts on this diagram · 19 diagrams in section
